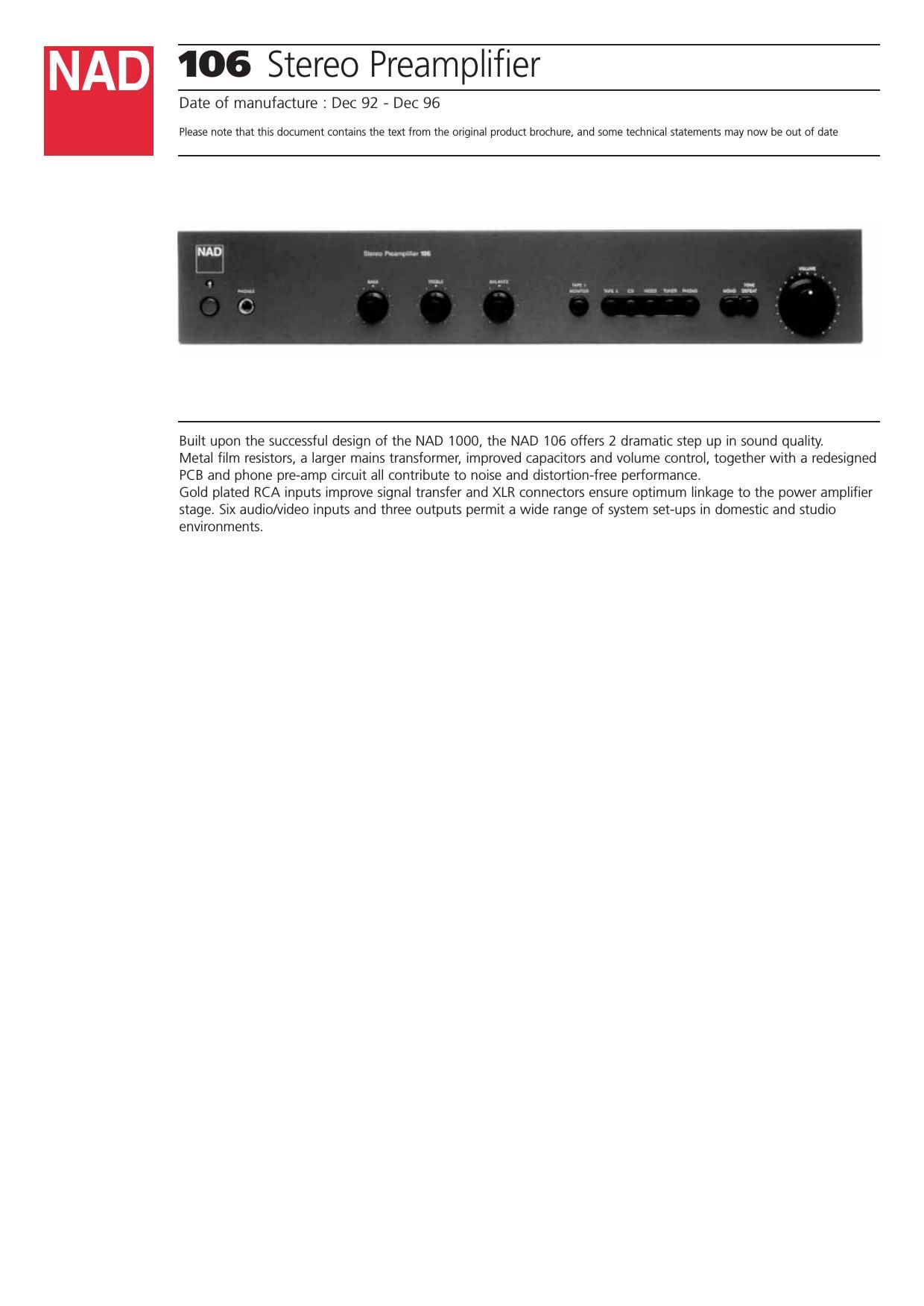

PRE-AMP SECTION
Phono input
Input impedance
(R and C) 47k½/ 200pF
Input sensitivity, 1kHz MM 1.25mV ref. 0.5V
MC 0.08mV
Input overload at 20Hz / 1kHz / 20kHz 20 / 200 / 1700mV
Signal/Noise ratio
(A-weighted with cartridge connected) MM 76dB ref. 5mV
MC 76dB ref. 0.5mV
THD
(20Hz - 20kHz) <0.2%
RIAA response accuracy MM ±0.2dB
(20Hz - 20kHz)
MC ±0.2dB (50Hz - 20kHz)
Line level inputs
Input impedance
(R and C) 20k½/ 450pF
Input sensitivity ref. 0.5V 80mV
Maximum input signal >10V
Signal/Noise ratio
(A-weighted ref 0.5V) 98dB
Frequency response ±0.2dB
THD 0.01%
Line level outputs
Output impedance Pre-amp 220½
Tape Source Z + 2k½
Phones 120½
Maximum output level Pre-amp >12V
Tape >10V
Phones >8V into 600½
>250mV into 8½
Tone controls
Treble ±7dB at 10kHz
Bass ±10dB at 50Hz
Remote No
NAD Link No
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 435 x 81 x 263mm
Net weight 3.7kg
Shipping weight 4.4kg
Power consumption (120 ~ 240V, 50/60Hz) 20W
Dimensions are of unitÕs cabinet without attached feet; add up to 18mm for total height.
Dimension depth excludes terminals, sockets, controls and buttons.
