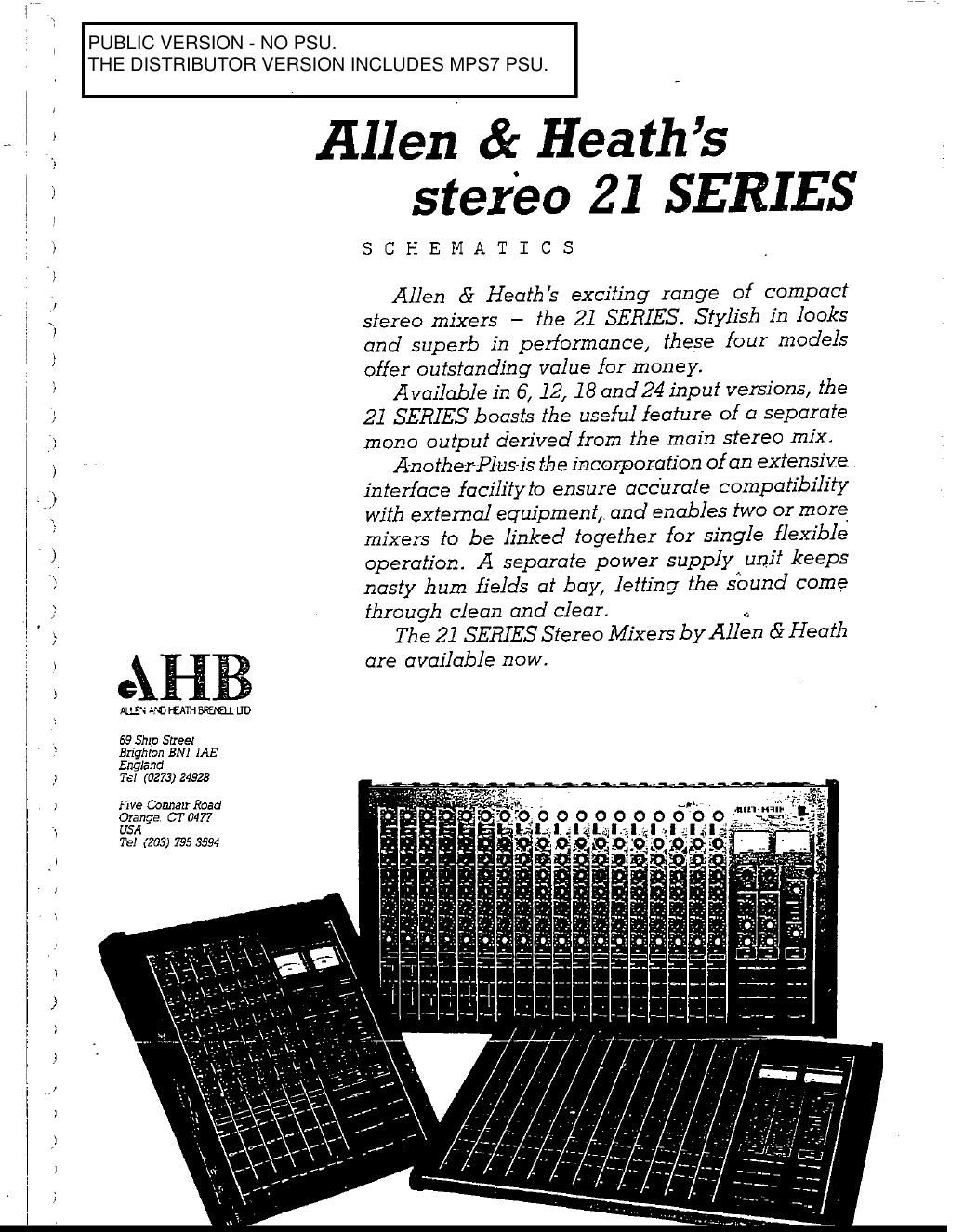

Page 1

PUBLIC VERSION - NO PSU.
THE DISTRIBUTOR VERSION INCLUDES MPS7 PSU.

AIIen & Heath-s

69 Ship Slreer
Brighton BN1 IAE
Eng land

Tel {0273) 24928

F1ve Connair Road
Orange. CT 0477

USA
Tel (203) 795 3594

stereo 21 SERIES

SCHEMATICS

Allen & Heath's exciting range of compact
stereo mixers - the 2] SERIES. Stylish in looks
and superb in performance, these four models
offer outstanding value for money.

Available in 6, .22, 18 and 24 input versions, the
2] SERIES boasts the useful feature of a separate
mono output derived from the main stereo mix.

AnotherPlusis the in corporation of an extensive
interface facilityto ensure accurate compatibility
with external equipment, and enables two or more
mixers to be linked together for single flexible
operation. A separate power supply unit keeps
nasty hum fields at bay, letting the sound come
through clean and clear

T he 21 SERIES Stereo Mixers by Allen &Heath

are available now.

.. boooooo -_-'"---:ii
1;:1-l1..;1;1.,1..1.1v1°°~'1°
. 90003194; "
