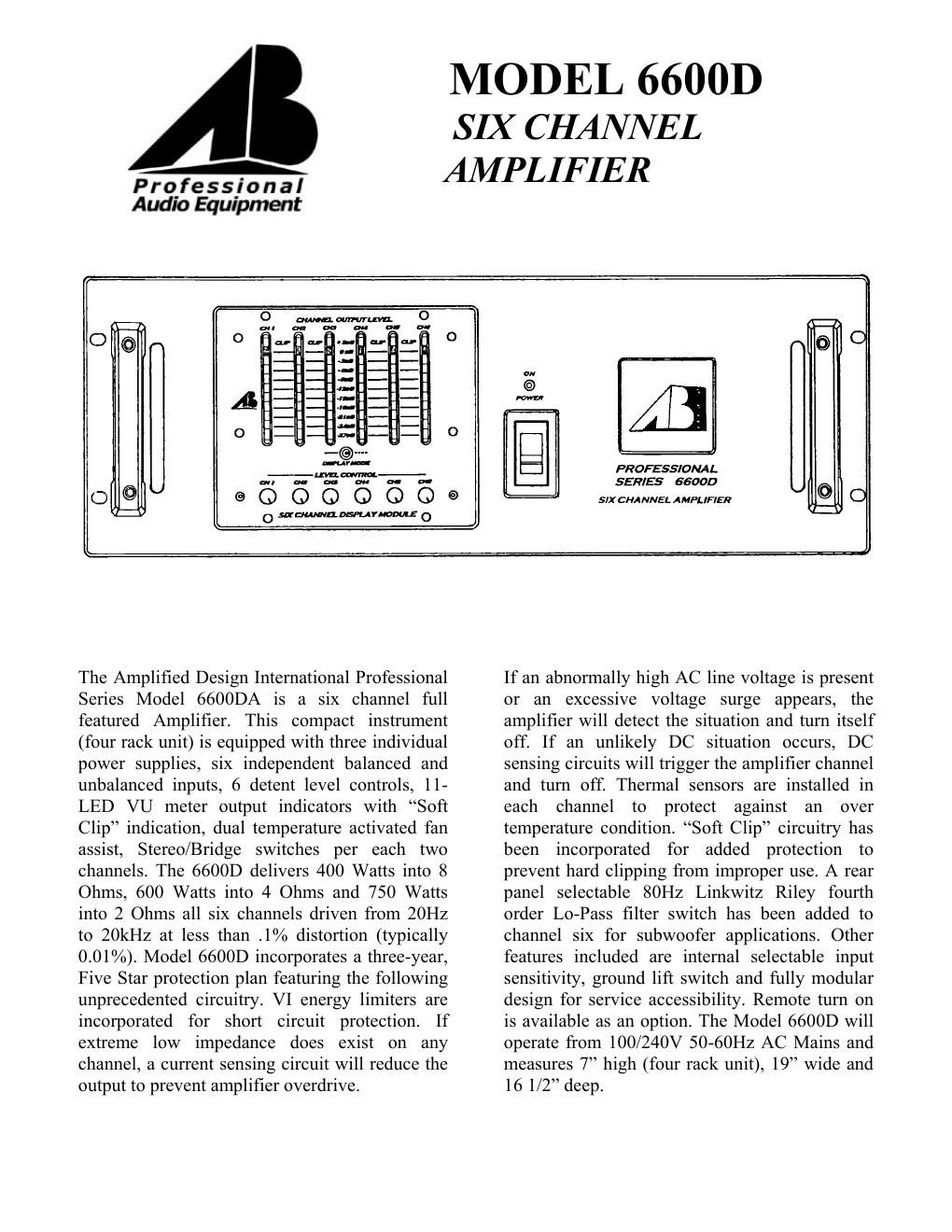

ab international 6600 d brochure

Extracted text from ab international 6600 d brochure (Ocr-read)

Page 1

AB MODEL 6600D SPECIFICATIONS Type: Continuous Power Output Per Channel @ 20Hz - 20kHz : Frequency Response: Distortion: Hum & No ise: Input Sensitivity: Input Connectors: Output Connectors: Controls & Indicators Damping Factor: Slew Rate: Crosstalk: Six Channel Am plifier 400W @ 8 Ohm s 600W @ 4 Ohm s 750W @ 2 Ohm s 1200W @ 8 Ohm s Bridged 1500W @ 4 Ohm s Bridged +/- 0.25dB 20Hz - 20kHz No m ore than 0.1% THD or IM, 0.01W to rated output, 20Hz-20kHz (Ty pically 0.01% ) 101dB below rated output (unweighted, 20kHz bandwidth) 1.0VRMS for rated output (selectable - .775V, 1.0V, 1.5V) ¼ Phone Jack (Balanced) XLR (Balanced) 5-way Binding posts (Front Panel) Ac m ains power switch (breaker), power on LED, level controls, signal/clip LEDS, (Rear Panel) ground lift switch, stereo/bridge switches per each two channels, Low Pass Filter switch (Ch6) 500:1 @ 1kHz Closed-loop response greater than 40V/us -80dB Gain Mainframe Power Supply: Turn-On Delay: Power Requirements: Thermal Protection: DC Protection: Heatsink and Cooling: Construction: Dimensions: Unit Weight: Shipping Weight: 34dB Toroidal transform er, 3 separate power supplies w/ 6ea 15k/uf capacitors 3 seconds AC Mains 100-240VAC, (120VAC from factory , unless otherwise indicated) 50/60Hz, 32A/16A for 2 Ohm , 20A/10A for 4 Ohm Each channels therm al sensor activates channel shutdown if an over-heating condition exists. Dc sensor activates channel shutdown if DC condition exists. Dual fan, two speed cooling utilizing m assive heatsink extrusions. 14-gauge cold-rolled steel with 3/16 heavy alum inum front panel Slim line 7height, 19 standard rack m ount width, 16 ½ depth overall (less handles) 62 lbs (28.18kg) 67 lbs (30.15 kg) Am plified Design Intl (m fr of AB Intl products) 1830-6 Vernon St. Roseville, CA 95678 Phone 916-783-7800 Fax 916-784-1050 W eb Si te: www.abam ps.co m E-Mail: sales @abam ps.co m

Page 2

6600D Applications Two Way Stereo With Two Monitor Mixes
