zenith dvt 412 service en

Extracted text from zenith dvt 412 service en (Ocr-read)

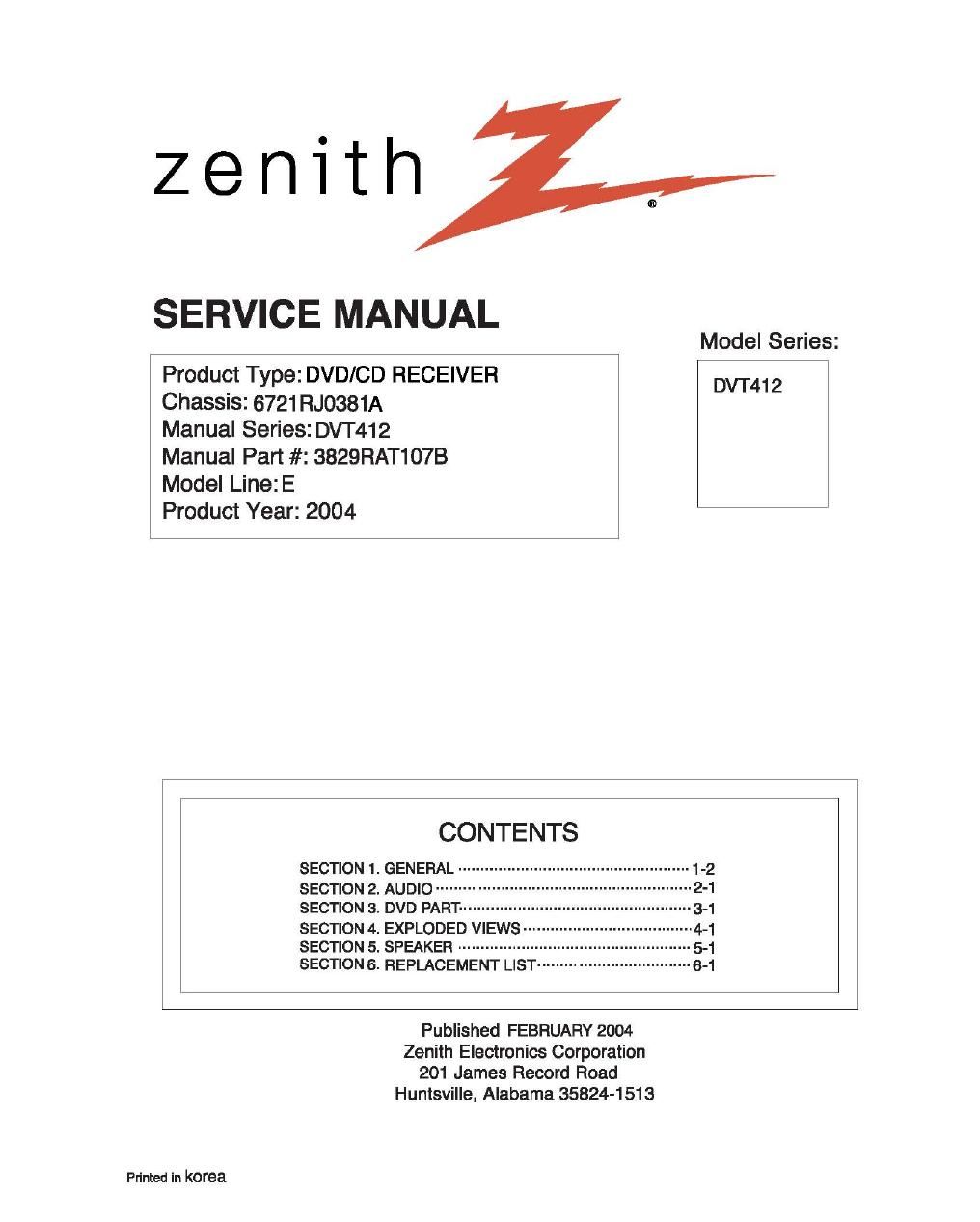

Page 1

zenith

SERVICE MANUAL

Product Type: DVD/CD RECEIVER
Chassis: 6721 RJ0381A

Manual Series: DVT412

Manual Part #: 3829RAT107B
Model Line: E

Product Year: 2004

Model Series:

DVT41 2

CONTENTS

SECTION 1. GENERAL
SECTION 2. AUDIO
SECTION 3. DVD PART"-
SECTION 4. EXPLODED
SECTION 5. SPEAKER ------------
SECTION 6. REPLACEMENT L


Printed in korea

Published FEBRUARY 2004
Zenith Electronics Corporation
201 James Record Road
Huntsville, Alabama 35824-1513

Page 2

(- [CONTENTS] -\

0 SECTION 1.GENERAL

- SERVICING PRECAUTIONS ............................................... 1-2
- ESD PRECAUTIONS ..................................................... 1-4
' SPECIFICATIONS ........................................................ 1-5
' LOCATION OF CUSTOMER CONTROLS ...................................... 1-6

0 SECTION 2. AUDIO PART

- AUDIO TROUBLESHOOTING GUIDE ......................................... 2-1
~ BLOCK DIAGRAM ........................................................ 2-5
- SCHEMATIC DIAGRAMS .................................................. 2-7
~ WIRING DIAGRAM ...................................................... 2-17
~ PRINTED CIRCUIT DIARGAMS ............................................ 2-19

0 SECTION 3.DVD PART

- ELECTRICAL TROUBLESHOOTING GUIDE .................................... 3-1
- DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING ................. 3-9
- BLOCK DIAGRAMS ...................................................... 3-22
- DVD PART SCHEMATIC DIAGRAMS ......................................... 3-23
- VOLTAGE SHEET ((IC &TR) ............................................... 3-31
- PRINTED CIRCUIT DIAGRAM .............................................. 3-33
O SECTION 4. EXPLODED VIEWS ................................... 4-1
O SECTION 5. SPEAKER PART ..................................... 5-1
0 SECTION 6. REPLACEMENT PARTS LIST ........................... 6-1

.1.1-
