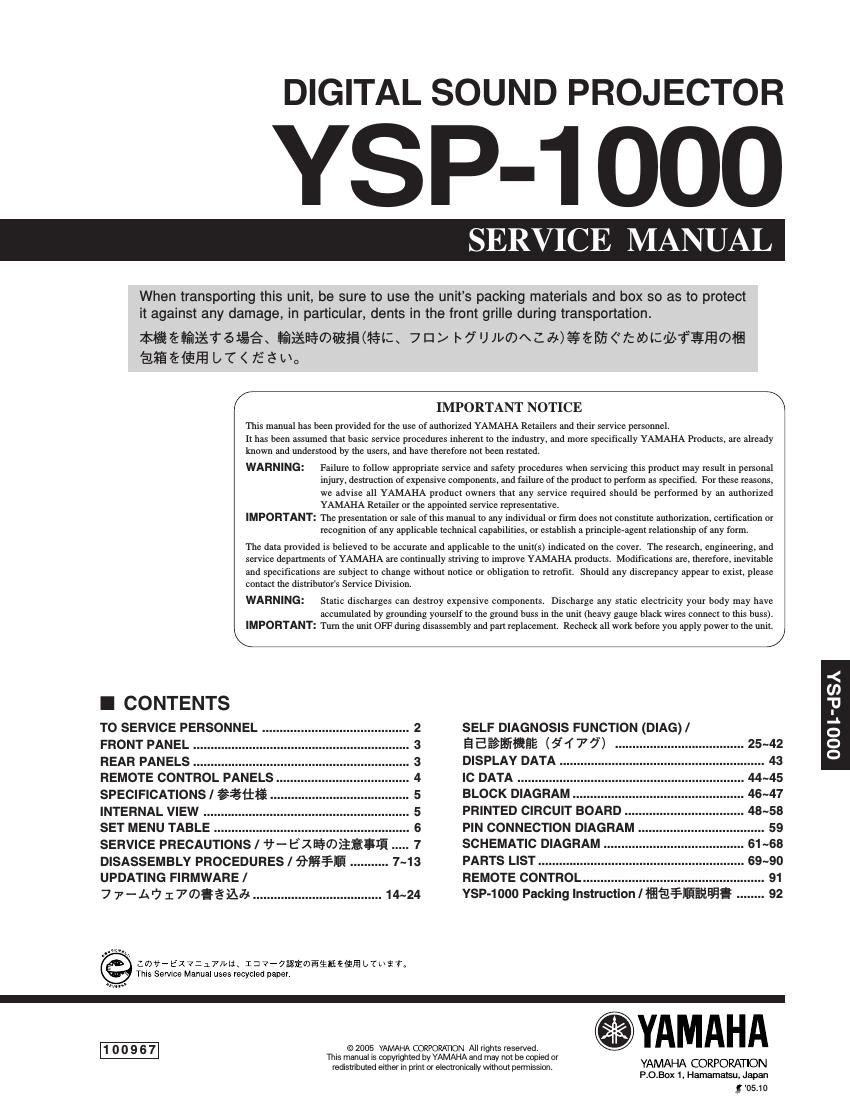

Page 1

DIGITAL SOUND PROJECTOR

YS P-1 000

ER ICE M NU

When transporting this unit, be sure to use the units packing materials and box so as to protect
it against any damage, in particular, dents in the front grille during transportation.

7M§E IIIETéiaaifis fififlfrOWififléils 7E!) b7)JbODAZfi)§EBfi<°f:NJIZIJZ\f§FH®IE

EEEEFHLT< ffémo

IMPORTANT NOTICE

This manual has been provided tor the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal

injury. destruction ofexpensive components. and failure of the product to perform as specitied. For these reasons,

we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or
recognition of any applicable technical capabilities, or establish a principleeagent relationship of any fomi.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

contact the distributor's Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have

accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL
FRONT PANEL
REAR PANELS .............................................................. 3
REMOTE CONTROL PANELS.
SPECIFICATIONS / §%Ii*§

INTERNAL VIEW ........................................................... 5
SET MENU TABLE ...................
SERVICE PRECAUTIONS / u- I: we $IE 7
DISASSEMBLY PROCEDURES / fififlfi ........... 7~13
UPDATING FIRMWARE /

77-A'7170ééi5i; ..................................... 14~24

:awe Exv:;71bi1t 1:777iéimfiitfifitfiffi bttxzh
This Service Manual uses recycled paper.

to 2005 YAMAHA CORPORATION Ali rights reserved.
Thrs manuai is copyrighted by YAMAHA and may not be copreo or
redistributed either in print or eiectrontcaliy without permission

SELF DIAGNOSIS FUNCTION (DIAG)/
e E??E9i%§é (9'4 77") ..................................... 25~42
DISPLAY DATA 43
IC DATA .
BLOCK DIAGRAM
PRINTED CIRCUIT BOARD ..
PIN CONNECTION DIAGRAM .
SCHEMATIC DIAGRAM .....
PARTS LIST ............
REMOTE CONTROL..
YSP-1ooo Packing Instruction/METIIE 53% .


YAMAHA

YAMAHA CORPORATION
P.O.Box 1. Hamamatsu, Japan
g '05. I o

000 LdSA

Page 2

YSP-1000

YSP-1000

I TO SERVICE PERSONNEL

.Critical Components Information

Components having special characteristics are marked l
and must be replaced with parts having specifications equal
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.

0 Meter impedance should be equivalent to 1500 ohms
shunted by 0.15pF.

CAUTION

AC LEAKAGE
WALL EQUIPMENT TESTER OR
OUTLET UNDER TEST EQUIVALENT

@ID-

INSULATING
TABLE

0 Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both polarities.

'39 F501: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 5A, 125V FUSE.

CAUTION

F501: REPLACE WITH SAME TYPE 5A,125V FUSE.

ATTENTION

F5011UT|L|SER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 5A,125V.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-

SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose

eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before

handling food.

About Lead Free Solder / ,mfiBA/fi ICDIAT

The P.C.B.s installed in this unit are soldered using the
following solder.

$$EE§$hfu5£fi®n>fifiwcfimehfma
/\>5liF§E<7)i§l) "(To

SIDEA/AE SIDEB/BE
AMP P.C.B. Lead Free Solder/ fitfiafl >5" Lead Free Solder/ 3MB / 51'
DSP P.C.B. Lead Free Solder/ fiffinfl >57 Lead Free Solder/ 331234}le 57'
INPUT P.C.B. - Lead Free Solder/ fitfiélv/fi?

OPERATION P.C.B. -

Lead Free Solder/ fitfiafl / 51'

Solder Dip

M.
Among some types of lead free solder currently available,
it is recommended to use one of the following types for the
repair work.

- Sn + Ag + Cu (tin + silver + copper)

- Sn + Cu (tin + copper)

- Sn + Zn + Bi (tin + zinc + bismuth)

Caution:

1. As the melting point temperature of the lead free solder
is about 30°C to 40°C (50°F to 70°F) higher than that of
the lead solder, be sure to use a soldering iron suitable
to each solder.

2. If lead solder must be used, be sure to remove lead free
solder from each terminal section of the parts to be
replaced and from the area around it completely before
soldering, or make sure that the lead free solder and
lead solder melt together fully.

REFLOW

Process

FLOW Process

fifiufl >5: lilA < Ofiwfifififfi U i 37): IEiEIfiIC I;
T330); 5 tfigfiélV/Q'Wfim Efifi I; i To

- Sn+Ag+Cu(§E+§E+$fi)

- Sn+Cu(§E+§I§)

' Sn+Zn+Bi (§%+fi§r§+ If X 7 X)

ia'

barge/Vacate asmasoeexnzvmcttmso
~4ocrslss< thrower ammo/vs
Iifictl\/§:-(EZI§FI§< fsema

2)?llJ/\>§El§bz¥%z&§ twig-.311 aseuwfi
@312 unli nfi-FgflgimflflgfiwfififihyfiETNTHY
Ull$ ifilttifiiééfixé;5i:n>£¢'1¢ll1b(<75'6le
