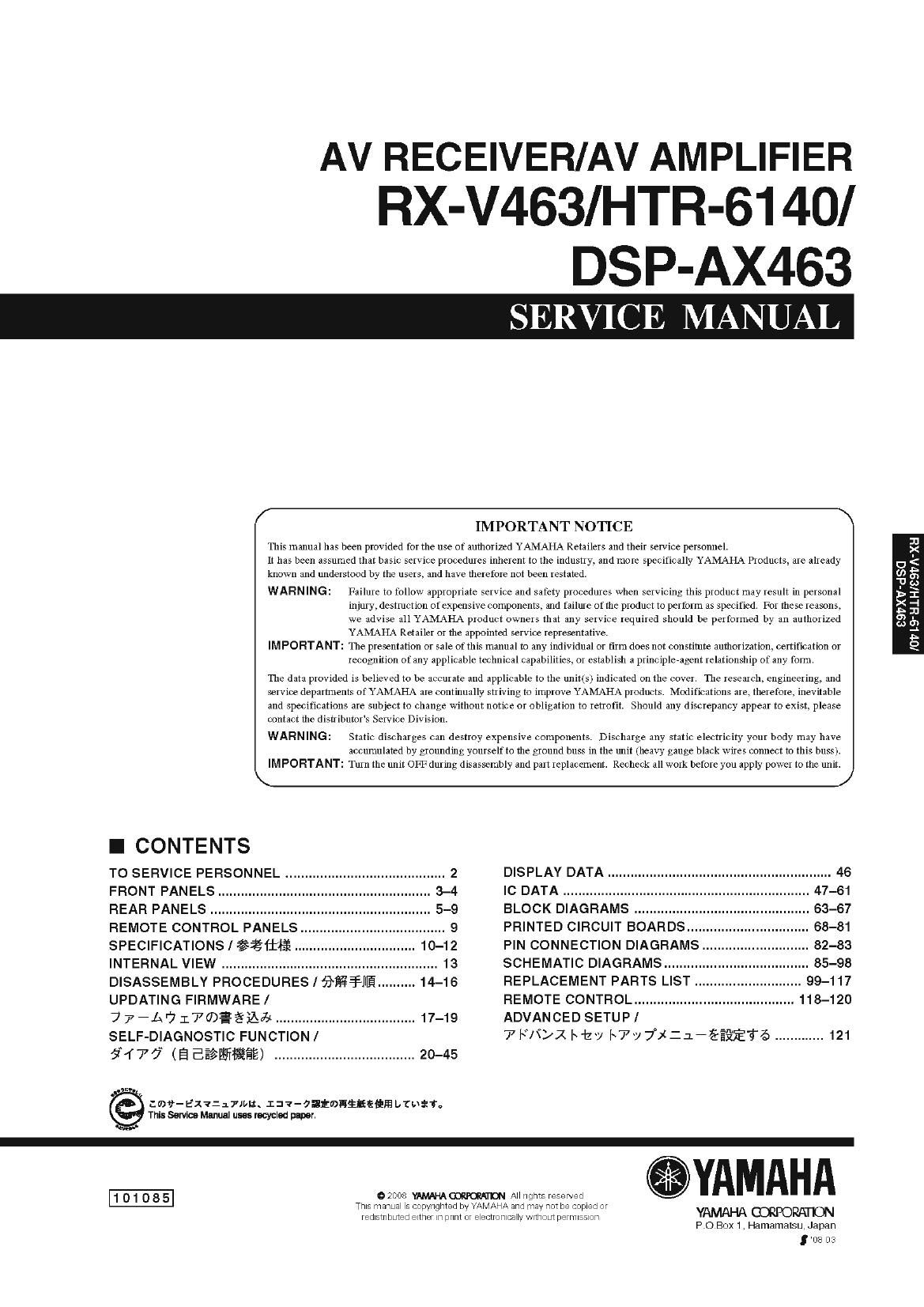

AV RECEIVER/AV AMPLIFIER

RX-V463/HTR-61 40/

DSP-AX463

SERVICE MANUAL

/

contact the distributor's Service Division.

\

I CONTENTS

TO SERVICE PERSONNEL 2

FRONT PANELS ........................................................ 3-4
REAR PANELS 5-9
REMOTE CONTROL PANELS ...................................... 9
SPECIFICATIONS I 43%1ifi 10-12
INTERNAL VIEW ......................................................... 13

DISASSEMBLY PROCEDURES Ifififiimfiuuum 14-16
UPDATING FIRMWARE /

7 7 -.L\'3 1793:3353} 17-19
SELF-DIAGNOSTIC FUNCTION /

5H 77 (E EEQESHREE) ..................................... 20-45

:mv- Ex 7:17M1. lav-Oatmfiflaliififli LOTIfliTD
This Service Manual uses recycled paper.

101085

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

9 2008 mm All fights reserved
ThIs manual Is copyrIghtsd Dy YAMAHA and may not be copied or
redIstrIbUted elther In prInt or electmmsally WIthout permlssmn

\

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction ofexpensive components, and failure ofthe product to perform as specified. For these reasons,
We advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principleiagent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are. therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black Wires connect to this buss).

IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

/

DISPLAY DATA ........................................................... 46
IC DATA 47-61
BLOCK DIAGRAMS .. .. 63-67
PRINTED CIRCUIT BOARDS 68-81

PIN CONNECTION DIAGRAMS ............................ 82-83
SCHEMATIC DIAGRAMS 85-98
REPLACEMENT PARTS LIST ............................ 99-117

REMOTE CONTROL 118-120
ADVANCED SETUP 1
TFIV/lhty PTszl-Esfire ............. 121

.YAMAHA

YAMAHA CORPORATION

PO Box 1, Hamamalsu, Japan
1 '08 03
