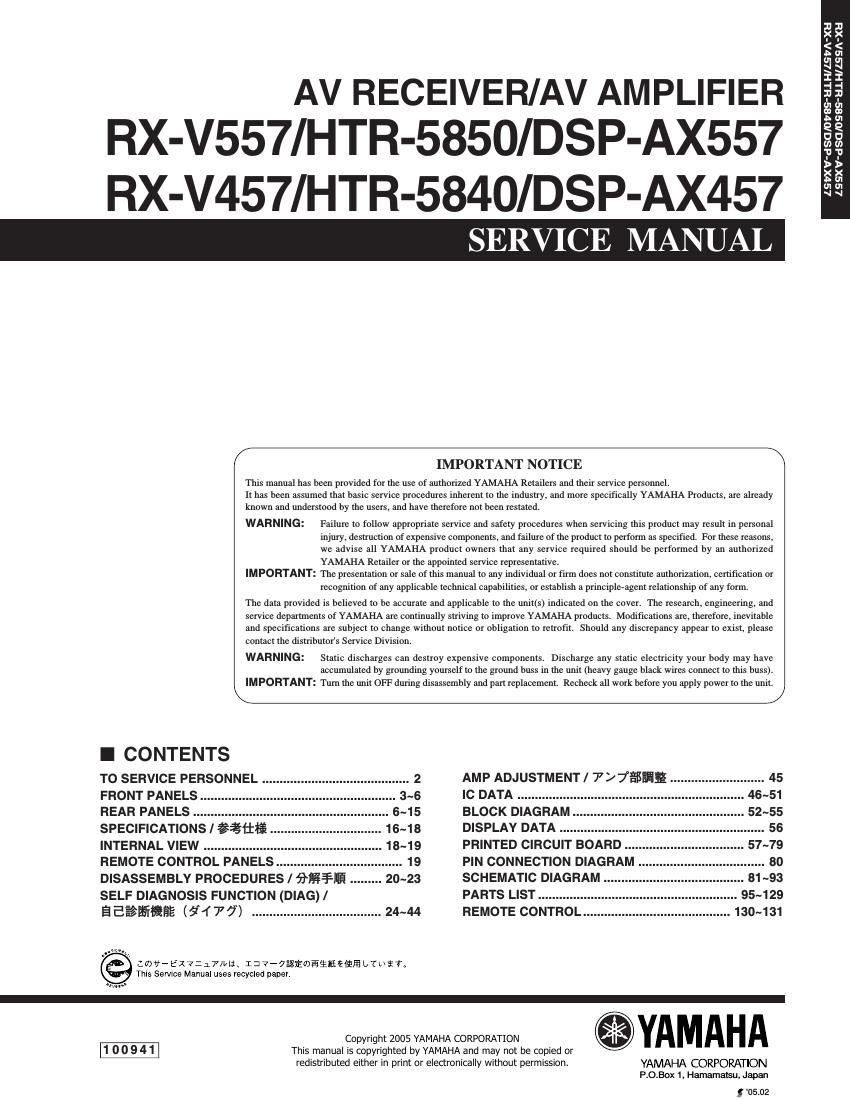

Page 1

AV RECEIVER/AV AMPLIFIER
RX-V557/HTR-5850/DSP-AX557

RX-V457/HTR-5840/DSP-AX457

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destmction of expensive components, and failure ofthe product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principleragenl relationship of any form.

The data provided is believed to be accurate and applicable lo the unil(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore. inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist please

cotllacl the dislribulors Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

I CONTENTS

TO SERVICE PERSONNEL .......................................... 2
FRONT PANELS ........................................................ 3~6
REAR PANELS ................................................... 6~15
SPECIFICATIONS/ §%I:H§ . 16~18
INTERNAL VIEW . . 18~19

.19

REMOTE CONTROL PANELS. .
. 20~23

DISASSEMBLV PROCEDURES / fidfilflfi
SELF DIAGNOSIS FUNCTION (DIAG) /
E EEJmififiE (5H 77) ..................................... 24~44

' :meexvhmta. 137*7aimfiififififfifii l/(uzh
This Service Manual uses recycled paper.

Copyright 2005 YAMAHA CORPORATION
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.

AMP ADJUSTMENT / 7 >7§I§§E¥ ........................... 45
IC DATA ................................................................. 46~51
BLOCK DIAGRAM ................................................. 52~55
DISPLAY DATA ............... 56
PRINTED CIRCUIT BOARD .. 57~79
PIN CONNECTION DIAGRAM 80
SCHEMATIC DIAGRAM ........................................ 81 ~93
PARTS LIST ......................................................... 95~129
REMOTE CONTROL .......................................... 130~131

fiYAMAHA

YAMAHA CORPORATION
P.O.Box 1. Hamamalsu, Japan

'05.02

I!)
5.
<<
301
0101
1]
\\
II
-I-I
39:.
UIUI
NW
#01
92
DD
mm
I?
>>
xx
#01
0101
1

Page 2

RX-V557/HTR-5850/DS P-AX557
RX-V457lHTR-5840/DS P-AX457

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked I WALL EQUIPMENT TESTER OR
and must be replaced with parts having specifications equal OUTLET UNDER TEST EQUIVALENT
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® ZED-
When sen/ice has been completed, it is imperative to verify f
that all exposed conductive surfaces are properly insulated
from supply circuits. i

h
In
in
X
5
a.
U)
D
\
o
In
no
"I
I
l-
I
\
h
In
In
>.
X
I

RX-V457IHTR -5840/DSP-AX457

0 Meter impedance should be equivalent to 1500 ohms INS1EILLQJENG
shunted by 0.15pF.
o Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both polarities.

CAUTION
A F1, 2: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 8A. 125V FUSE.

CAUTION
F1, 2: REPLACE WITH SAME TYPE 8A, 125V FUSE.

ATTENTION
F1, 2: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A,125V.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About Lead Free Solder / fifidflyjlijmt

The P.C.Bs installed in this unit are soldered using the zmsfilliééfiéfltmegifiml\ysilqlzfllfifiiéhtbtawy
following solder. IIFEEOJJEDC?u
Component Side / EISEIIE Foil Side / IUJE
DSP P.C.B, Lead Solder / slaw/war Lead Free Solder/fiafiulwg
FUNCTION P.C.B. - Lead Free Solder/#fialwsf
OPERATION P.C.B. - Lead Free Solder / fife/Ws"
MAIN P.C.B. - Lead Free Solder / many/9
POWER P.C.B. - Lead Free Solder/
SUBTRANS P.C.B. - Lead Free Solder/
CONVERSION P.C.B. Lead Solder / slaw/war Lead Free Solder/
VIDEO P.C.B. - Lead Free Solder/ \
XM P.C.B. Lead Solder / fiGAD/UJ Lead Free Solder/fiftfiulkysf
SMT REFLOW Process
Solder Dip
Ml FLOW Process
