Yamaha rx v100 d

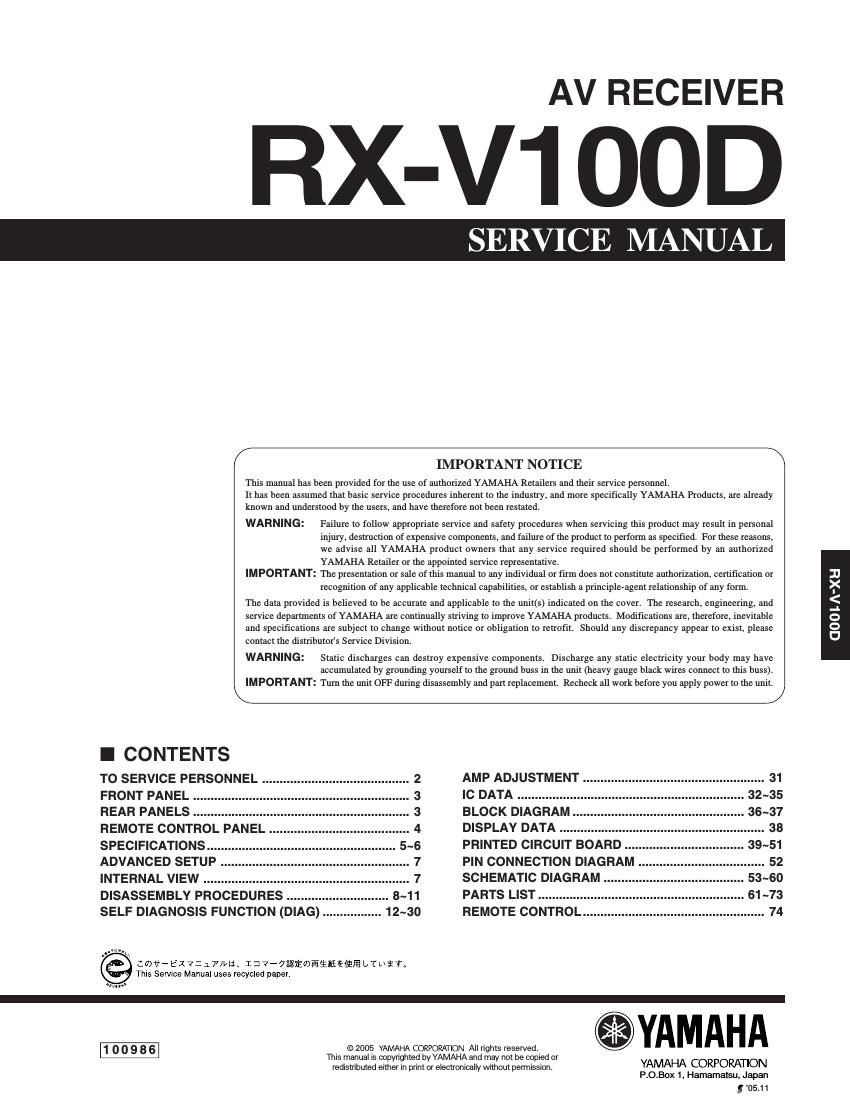

This is the 74 pages manual for yamaha rx v100 d.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 74
left right
yamaha rx v100 d

Extracted text from yamaha rx v100 d (Ocr-read)


Page 1

RX-V100D 2 RX-V100D WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits.  Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF.  Leakage current must not exceed 0.5mA.  Be sure to test for leakage with the AC plug in both polarities. The P.C.B.s installed in this unit are soldered using the following solder. About Lead Free Solder Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. - Sn + Ag + Cu (tin + silver + copper) - Sn + Cu (tin + copper) - Sn + Zn + Bi (tin + zinc + bismuth) Caution: 1. As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. 2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead free solder and lead solder melt together fully. SIDE A SIDE B DSP P.C.B. Lead Solder Lead Free Solder FUNCTION P.C.B. -“ Lead Free Solder OPERATION P.C.B. -“ Lead Free Solder MAIN P.C.B. -“ Lead Free Solder POWER P.C.B. -“ Lead Free Solder SUBTRANS P.C.B. -“ Lead Free Solder DAB P.C.B. -“ Lead Free Solder Side A Side BSMT REFLOW Process MI FLOW Process Solder Dip

Page 2

RX-V100D 3 RX-V100D FRONT PANEL B model REAR PANELS G model B model
