Yamaha rc d24 remote controller locator service manual
This is the 20 pages manual for yamaha rc d24 remote controller locator service manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 20

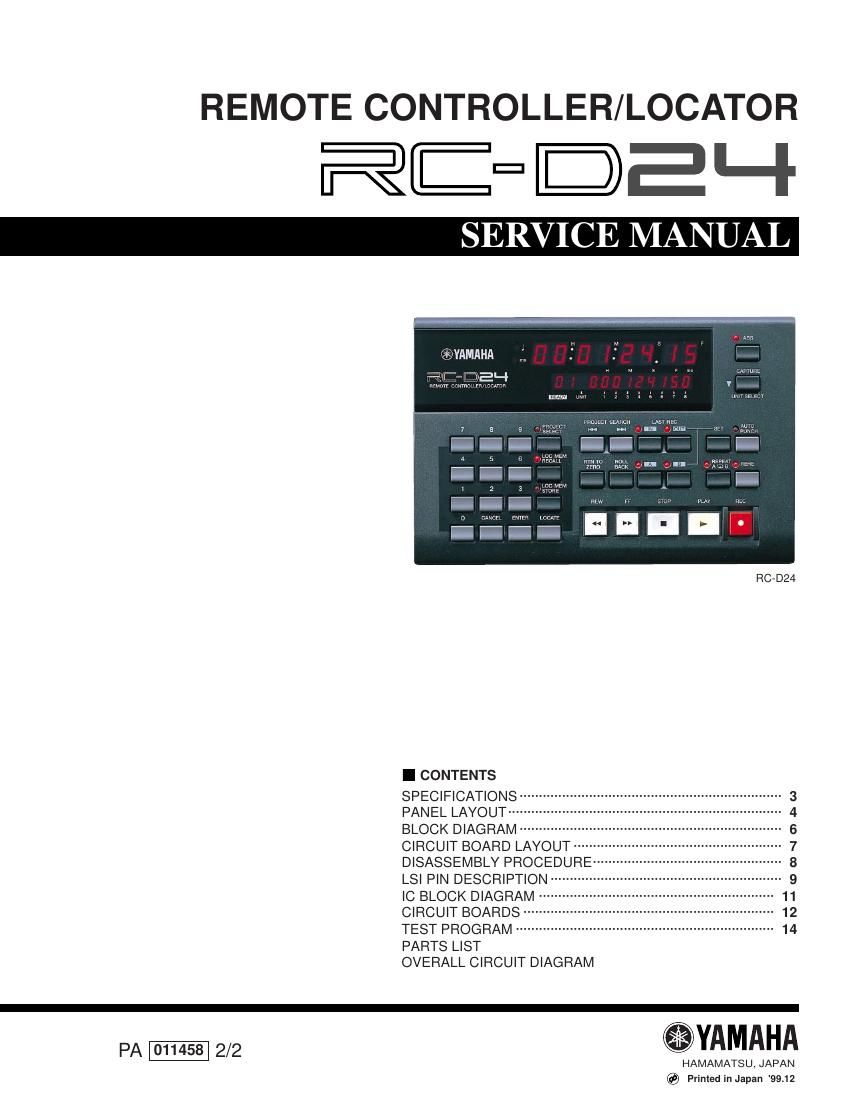

Extracted text from yamaha rc d24 remote controller locator service manual (Ocr-read)
Page 1
RC-D24
2WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes
to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that
basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by
the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components and failure of the product to perform as specified. For these
reasons, we advise all Yamaha product owners that all service required should be performed by an authorized
Yamaha Retailer or the appointed service representative.
IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization, certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and
changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist,
please contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the
unit.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
Page 2
SPECIFICATIONS
RC-D24
3
Repeat playback
Punch in/out
Auto Punch multi-take recording
Locate
Display
Others
Mounting screws
Supply voltage
Power consumption
Dimensions (W x H x D)
Weight
Free-air operating temperature range
Relative humidity
AccessoriesProject Select/Search
Locate point set/search
Locate memory store/recall
Return to zero
Roll back
Counter
Message area
ABS/REL
CAPTURE
POWER SW
15-pin D-sub connector
Speaker bolts
Mic standA-“B Repeat
Auto, Manual, Rehearsal
Up to 99 takes
LAST REC IN, LAST REC OUT, A, B
99
8 x 7-segment LED
Time display: Hours, minutes, seconds, frames
12 x 7-segment LED
Time display: Hours, minutes, seconds, frames,
sub-frames
M5 nut x2
W3/8
12 V DC
10 W
214 x 50 x 138 mm (8.4 x 2 x 5.4 inches)
1 kg (2.2 lbs)
0 ËšC to 40 ËšC (32 ËšF to 104 ËšF)
10 %-“95 %
15-pin D-Sub remote cable (5 m)
