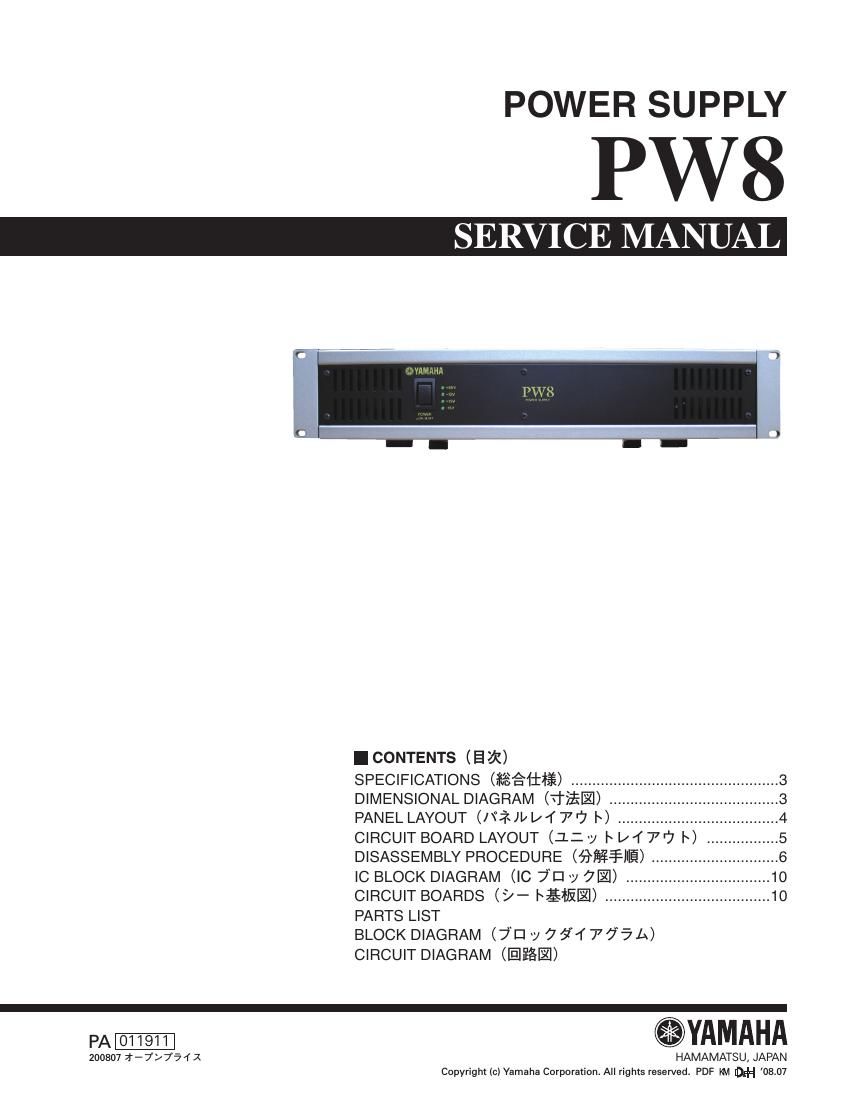

Page 1
PW8
2
WARNING
Components having special characteristics are marked and must be replaced with parts having specifi cation equal to those
originally installed.
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic
service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users,
and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise
all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in
specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributors Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated
by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
WARNING: This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/
flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
¹w
æ
¼xz-
¶-¡ËbhŠt OAs
æ
¼pb{¦õb -ùxz-
¶whŠt
žc¦ w
æ
¼-]-;-65à4Ð'°
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in this mains lead are coloured in accordance
with the following code:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be connected to
the terminal in the plug which is marked by the letter E or by the safety
earth symbol
or colored GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured RED.
- This applies only to products distributed by Yamaha Music U.K. Ltd. (3 wires)
Page 2
3 PW8
SPECIFICATIONS¢
ïù7£
General Specifications
Power Connector Pin Diagram Power Supply Cable Pin Assignments
Secondary Voltage+15V Green LED: On (+15 V), Off (less than +10 V or more than +21 V)
-15V Green LED: On (-15 V), Off (less than -21 V or more than -10 V)
+12V Green LED: On (+12 V), Off (less than +7.6 V or more than +18 V)
+48V
(Phantom Voltage)Green LED: On (+48 V), Off (less than +32 V)
Power Consumption265 W (IM8-40), 230 W (IM8-32), 200 W (IM8-24)
DimensionsHeight: 100.5 mm, Depth: 412 mm, Width: 480 mm
Net Weight11 kg
DC OUTPUT
DC PARALLEL INPUT
1 2 3
8 9 1054 6 73 2 1
10 9 867 5 4
No. Function
1 Power supply remote
2 +15 V
3 ±15 V GND
4 +48 V GND
5 -15 V
6 +12 V
7 +12 V GND/power supply remote
8 Power supply remote
9 +48 V
10 FRAME GND
DIMENSIONAL DIAGRAM¢
GO
$£
88 12.5
392.5 64.5 250374.5
404.5 5.5
76.2
300
410
30
438
11
76.2
3244.7
H: 100.5
W: 480
D: 412
Units: mm
