Yamaha nxu 10

This is the 25 pages manual for yamaha nxu 10.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 25
left right
yamaha nxu 10

Extracted text from yamaha nxu 10 (Ocr-read)


Page 1

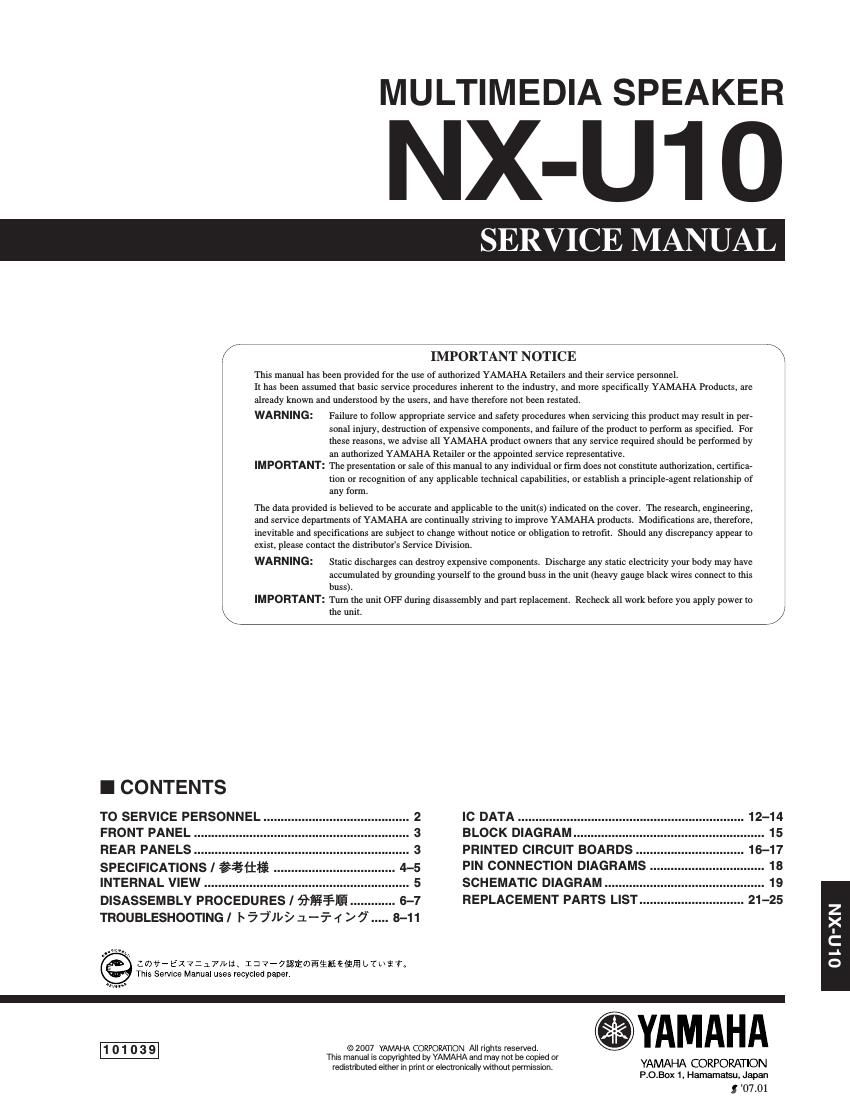

NX-U10 2 NX-U10 TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits.  Meter impedance should be equivalent to 1500 ohms shunted by 0.15µF.  Leakage current must not exceed 0.5mA.  Be sure to test for leakage with the AC plug in both polarities. WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE WARNING: CHEMICAL CONTENT NOTICE! The solder used in the manufacturing process except soldering of the P.C.B. ass'y contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Š;t eL^-oMb-ow, XS|Ëï¼ ÇZt -ù æxÁËï¼pËï¼ ÇZ^-oM-b{ ÁËï¼txMXmTw ¨UK-bUz .gÌtx<Gw OsÁËï¼w-;- * `-b{ ~4O "H $V¢  Ü £ ~4O $V¢  £ ~4O ;O #J

Page 2

NX-U10 3 NX-U10 FRONT PANEL REAR PANELS K model T model A, B, G, L models Status indicator LED V model J model L side viewR side view Front view U model
