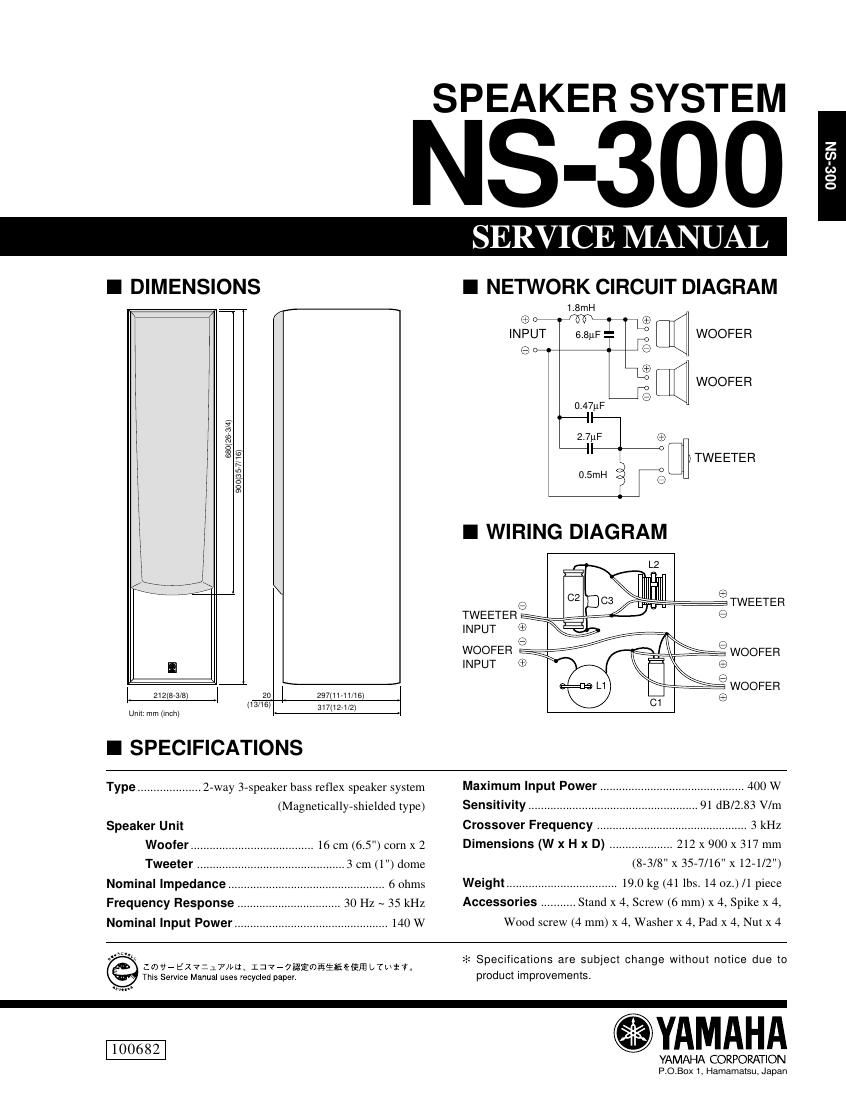

The Network Ass'y is
fixed with staple.
NS-300
EXPLODED VIEW
ABCDE
1
2
3
4
5
6
7
Page 2
PARTS LIST
* 1 V4015700 CABINET ASSY CH
* 1 V4015800 CABINET ASSY BL
1-3-4 VA806800 ELECTROLYTIC CAP 6.8uF 50V
1-3-5 FR116270 PAPER CAP 2.7uF 160V
* 1-3-7 V4346900 MYLAR FILM CAP 0.47uF 50V
1-4 V2192200 EMBLEM YAMAHA
1-5 CB605250 HOLDER
* 2 V4015500 FRONT GRILLE ASSY CH
* 2 V4585100 FRONT GRILLE ASSY BL
* 5 XW231A00 LOUD SPEAKER 16cm
* 6 XW232A00 LOUD SPEAKER 2.5cm
* 7 V4041400 SPEAKER TERMINAL 4P
* 9 V4041500 HEXAGON HEAD WOOD SCREW 4x20 MFCR3
10 EN230180 OVAL HEAD TAPPING SCREW 3.5x16 MFC2-BL
ACCESSORIES
* V4564100 STAND ASSY
EP040070 BIND HEAD TAPPING SCREW 4x20 ZMC2-BL
V2450400 HEXAGONAL NUT 6.0 MFZN2-BL
* V4043300 SPIKE M6.0
* V4402400 WASHER 13-7-2 MFZN2-BL
* V4053100 TAPPING SCREW 6x12 MFC2-BL
* New Parts
Ref.
No. PART NO. Description Remarks Markets
NS-300
