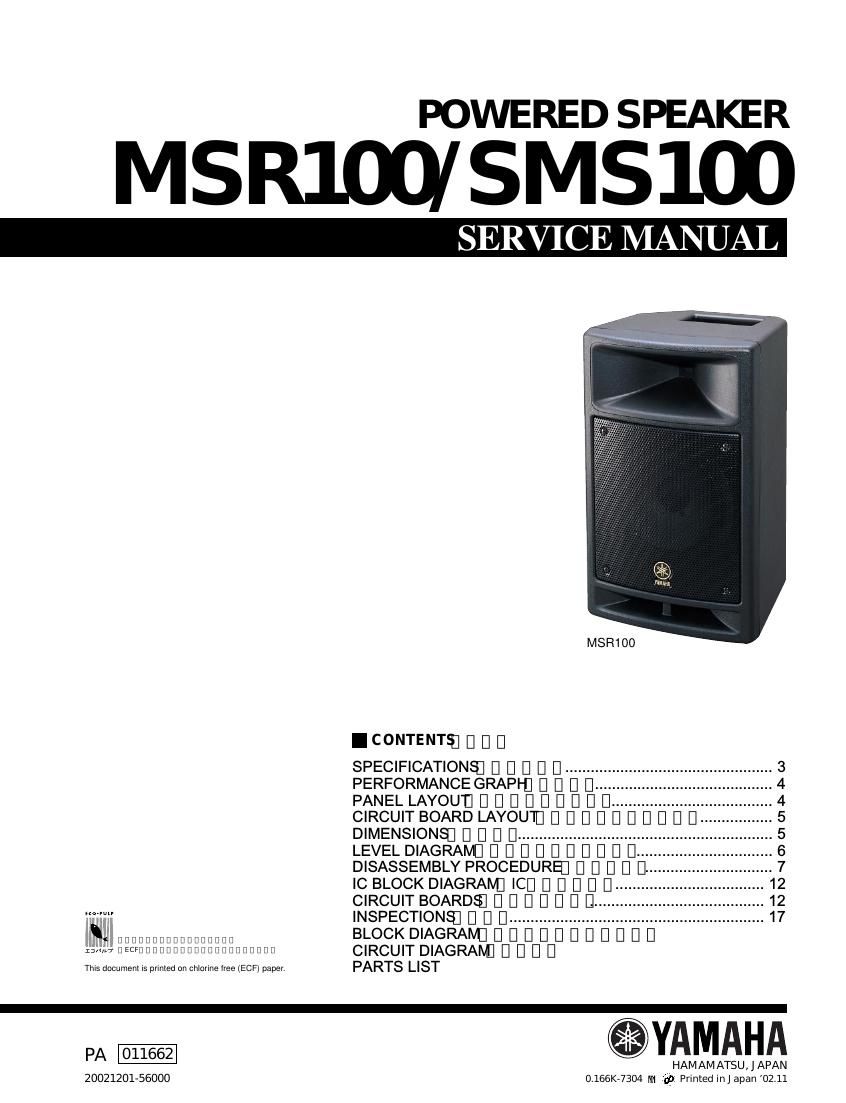

yamaha msr100 sms100 powered speaker service manual

Extracted text from yamaha msr100 sms100 powered speaker service manual (Ocr-read)


Page 1

MSR100/SMS100 2 IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD. ¹w Ž ¼xz- ¶-¡ËbhŠt OAs æ ¼pb{¦õb -ùxz- ¶whŠt žc¦ w æ ¼-]-;<à4Ð'°

Page 2

MSR100/SMS100 3 SPECIFICATIONS General specifications Type 2way Bass Reflex Powered Speaker Speaker Unit LF: 200 mm Cone HF: 25.4 mm Compression Driver Frequency Range..................55 Hz-20 kHz (-10 dB) Cross Over Frequency..........4 kHz Maximum Output Level.........112 dB (1 m) Dimension (W´H´D).............275 ´ 455.5 ´ 255 mm Weight..................................11 kg Color.....................................Black (Approximate Munsell Value 5 PB2/1) Accessories..........................Power supply cord 2.5 m (AC Inlet type) Option ..................................BWS50-190/260/320, BCS251, BBS251 Amp. Unit Max Power...........................100W at 1 kHz, THD=1%, RL=6W Input Sensitivity....................INPUT 1: -50 dB* (MIC), +4 dB* (LINE) INPUT 2, 3: -10 dB* Input Impedance..................INPUT 1, 2, 3: 10 kW Output Sensitivity.................LINK OUT: -10 dB* Output Impedance...............LINK OUT: 10 kW Controls LEVEL Control ...............INPUT 1, 2, 3, MASTER EQ Control......................LOW: ±3 dB at 60 Hz HIGH: ±6 dB at 10 kHz POWER Switch..............ON/OFF Connectors INPUT 1..........................XLR-3-31 (balanced) INPUT 2, 3......................Phone (unbalanced) LINK OUT.......................Phone (unbalanced) Indicator POWER Indicator............Green LED CLIP Indicator.................Red LED Power Requirement USA and Canada ........... AC 120 V, 60 Hz Europe............................AC 230 V, 50 Hz Australia ......................... AC 240 V, 50 Hz Korea ................................. A C 220 V, 60 Hz Power Consumption .............70 W * 0 dB=0.775 V For European Model Purchaser/User Information specified in EN55103-1 and EN55103-2. Inrush Current: 10A Conformed Environment: E1, E2, E3 and E4 ïù7 - ïù7 Ü ¢£ ÌµèÑÍëŵЧ µÐ§âÇ¿Ä -'NN¯ï )'NN¯ïÓ迳ãïÅå Ì 6 \ *
