Yamaha ms20 s

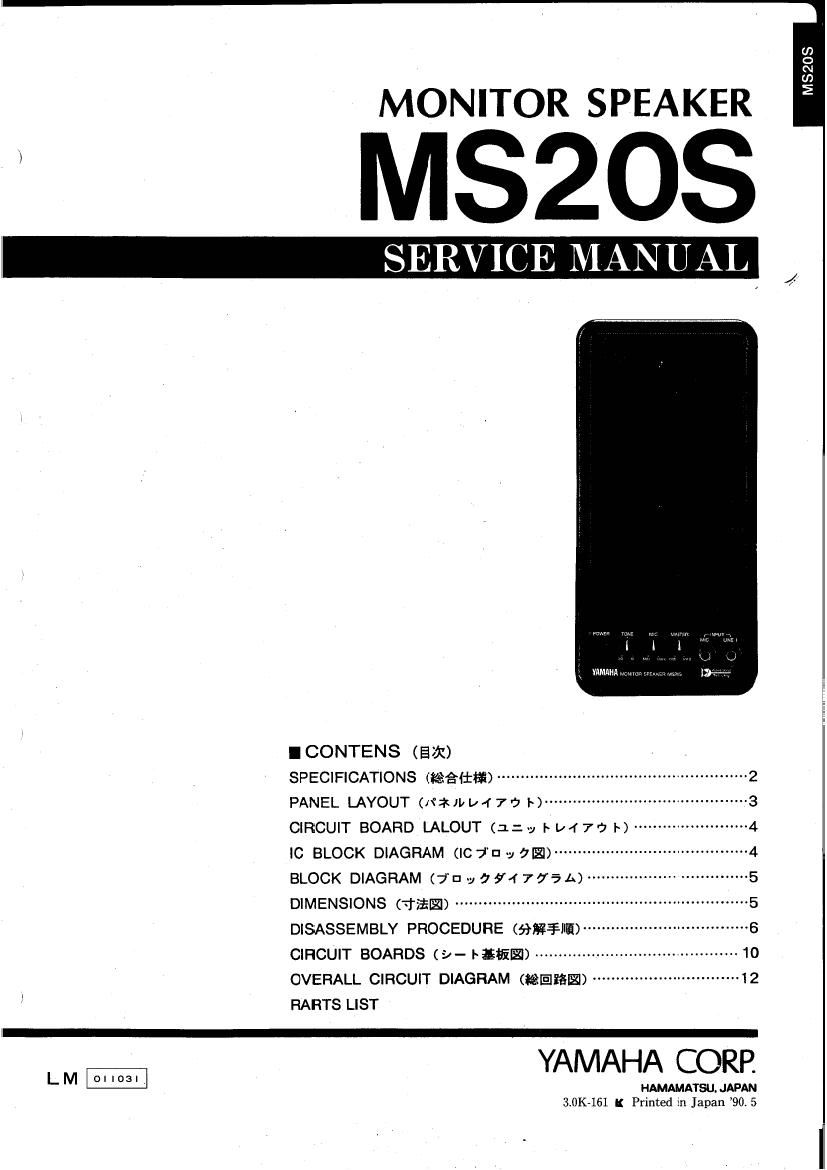

Page 1

MONITOR SPEAKER

I M5203

SERVICE MANUAL .1

ICONTENS (E33) -
SPECIFICATIONS (@éifi) ..................................................... 2

PANEL LAYOUT (/(*;pp479 I) ........................................... 3
CIRCUIT BOARD LALOUT (:1; .9 I (,4 7.7 I») ........................ 4
IC BLOCK DIAGRAM 0c 7'1: .1 g.) ......................................... 4
BLOCK DIAGRAM (7:: .y 575/4 775A) ................................. 5
DIMENSIONS grab.) .............................................................. 5
DISASSEMBLY PROCEDURE ($325M) ................................... 8
CIRCUIT BOARDS ('2- Iifi.) ........................................... 10
OVERALL CIRCUIT DlAGRAM (wfilifil) ............................... 12

RARTS LIST
LM YAMAHA CORP.
HAMAMATSU.JAFAN

3.0Kv161 K Printed in Japan 90. 5

Page 2

M8205

M5205

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel.
It has been assumed that basic service procedures inherant to the industry, and more specifically Yamaha
Products, are. already known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destruction of expensive components and failure of the
product to perform as specified. For these reasons, we advise all Yamaha product owners
that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute
authorization, certification, recognition of any applicable technical capabilitites, or
establish a principleagent relationship of any form.

The data provided is believed to be accurate and applicable to the unit/s indicated on the cover. The
research, engineering, and service departments of Yamaha are continually striving to improve Yamaha
products. Modifications are, therefore, inevitable and changes in specification are subiect to change without
notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's
Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your
body may have accumulated by grounding yourself to the ground buss in the unit (heavy
gauge black wires connect to this buss).

IMPORTANTtTurn the unit OFF during disassembly and parts replacement. Recheck all work before
you apply power to the unit.
