Yamaha mc2410 mc3210m mixer service manual

Page 1

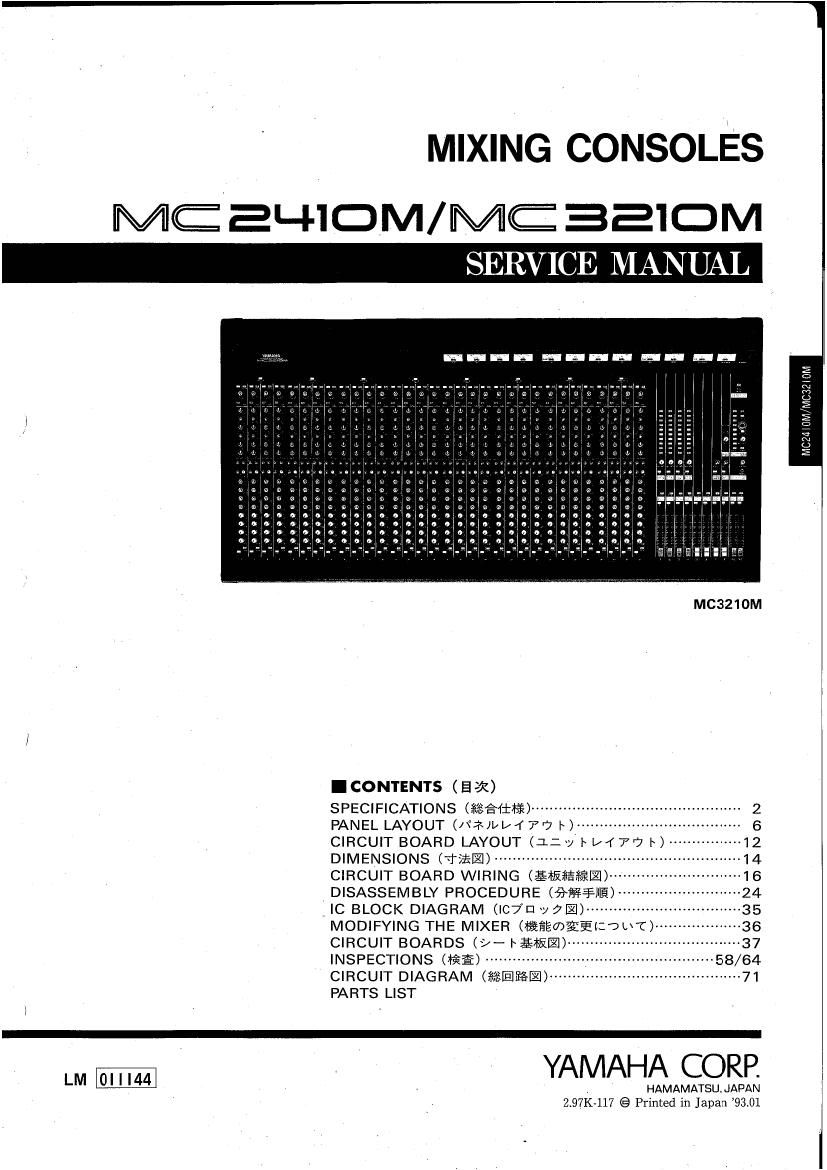

MIXING CONSOLES
MCaL-IIOM/Mg 3210M

SERVICE MANUAL

MC3210M
/

ICONTENTS (Ea)
SPECIFICATIONS (#JfisfiIiI --------------------------------------------- 2
PANEL LAYOUT UNI/V4 7:7 I) .................................... 6
CIRCUIT BOARD LAYOUT (1:9be D477 I>--- ----- 12
DIMENSIONS (211.33.) ..................................... 14
CIRCUIT BOARD WIRING (gmfifil) ------------ "~16
, DISASSEMBLY PROCEDURE <92¥$IIE>~ ~~-24
IC BLOCK DIAGRAM (IC7EI I, 7.) .................................. 35
MODIFYING THE MIXER (fifiémzfitrab'c) ------------------- 35
CIRCUIT BOARDS (~2- Igml) ...................................... 37
INSPECTIONS (fig) .................................................. 58/64
CIRCUIT DIAGRAM (WEIEéI) ------------------------------------------ 71

PARTS LIST '

LM ' I . YAMAHA CORP.

HAMAMATSU. JAPAN
2.97K-117 © Printed in Japan 9301

E
2
N
m
L)
E-
S
E
Q
N
(J
E

Page 2

E
o
m
m
o
E
E
o
-:r
N
L)
E

MCZ4IOM/MC32 | GM

/

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel.
[t has been assumed that basic service procedures inherant to the industry, and more specifically Yamaha
Products, are already known and understood by the users, and have therefore not been restated.

WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury,- destruction of expensive components and failure of the
product to perform as specified, For these reasons, we advise all Yamaha product owners
that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute
authorization, certification or recognition of any applicable technical capabilities, or
establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The
research, engineering, and service departments of Yamaha are continually striving to improve Yamaha
products. Modifications are, therefore, inevitable and specifications are subject to change without notice or
obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service
Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your
body may have accumulated by grounding yourself to the ground buss in the unit (heavy
gauge black wires connect to this buss).

IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before
you apply power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/
electronic and/or plastic (where applicable) components may also contain traces of chemicals found
by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth
defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC 0R PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale
solder fumes or expose eyes to solder/flux vaporl.

If you come in contact with solder or components located inside the enclosure of this product,
wash your hands before handling food.
