Page 1

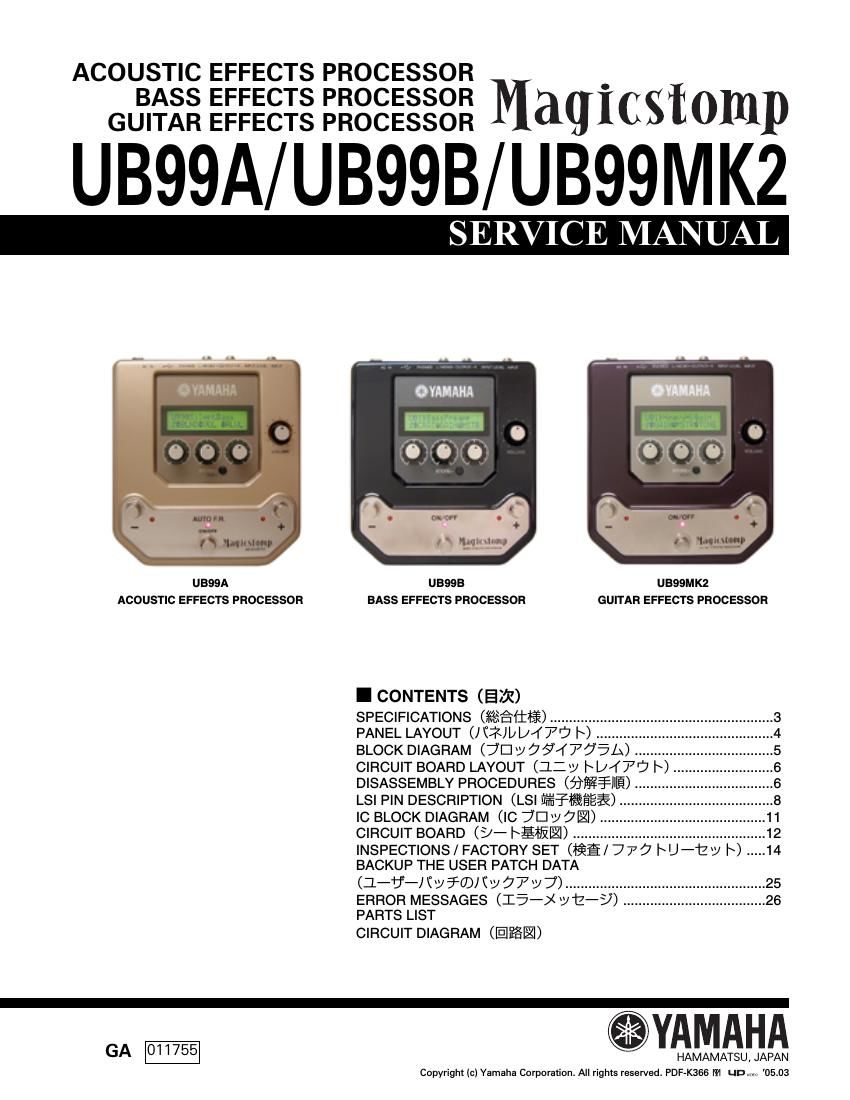

UB99A/UB99B/UB99MK2
2
-– WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to
those originally installed.
å°ã®å•†å“ã¯ã- 安全 ã‚’ ç¶æŒã™ ã‚‹ 㟠ã‚ã«é‡è¦ ãªéƒ¨å“ã§ã™ã-‚ 交æ›ã™ ã‚‹ å ´åˆã¯ã- 安全㮠㟠ã‚ã«å¿…ãšæŒ‡å®šã®éƒ¨å“ ã‚’ ã- 使ç-¨ ã ã ã• ã„ã-‚
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic
service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and
have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise
all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification,
recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in
specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributors Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to
cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to
solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
Page 2
UB99A/UB99B/UB99MK2
3
-– SPECIFICATIONS ¢
ïù7£
Digital Section
Digital signal processing effector
Includes special editor application Sound Editor for
MAGICSTOMP
Patch Select: 2 Modes
Built-in Chromatic Auto Tuner
Communications
Receive: Parameter Change, Bulk In (1 patch), Bulk
In (99 patch)
Transmit: Bulk Out (99 patch)
Controller/Switch
Knob x4
CONTROL1, 2, 3, VOLUME
Push Switch x4
UB99A: -“, +, AUTO F.R./ON/OFF, STORE/EXIT
UB99B/UB99MK2: -“, +, ON/OFF, STORE/EXIT
Slide Switch x1
INPUT LEVEL (HIGH/LOW)
Display
16 x 2 character LCD (w/Back light)
LED x 3 (UB99A: -“, +, AUTO F.R./ON/OFF)
(UB99B/UB99MK2: -“, +, ON/OFF)
Connections
INPUT: Standard Monaural Phone Jack
OUTPUT L/MONO, R: Standard Monaural Phone JackPHONES: Mini Stereo Phone Jack
USB
AC IN
A/D Converter
24 bit + 3 bit Floating
D/A Converter24 bit
Sampling Frequency44.1 kHz
Memory AllocationsPreset:99
User: 99
Input Level/Impedance
INPUT HIGH: -“25dBm/1 M-„¦
INPUT LOW : -“15dBm/1 M-„¦
Output Level/Impedance
OUTPUT L/MONO, R: 0dBm/1 k-„¦
PHONES L, R: -“10 dBm/150 -„¦
Power
Exclusive Power Adaptor (AC-10)
AC Output: AC 12 V, 1 A
Power Consumption12 W
Dimensions (W x H x D)164 x 62 x 176 mm
(6-7/16 x 2-7/16 x 6-15/16)
Weight910 g (2lbs.)
AccessoriesPower Adaptor (AC-10)
CD-ROM
USB Cable
Owners Manual
Patch List
Effect List ̫ȍ
æ
デジ タ ルシ グナルプ ムセ ッ シ ン グ ・ エ フ ェ ク ター
å°‚ç-¨ã‚¨ãƒ‡ ã‚£ ã‚¿ ー ソ フ ト Sound Editor for MAGICSTOMP
åŒæ¢±
パッãƒã‚»ãƒ¬ ク ト : 2 モード
ク ムマ ムッ ク オー ト ムュ ーナー内è-µ
è ô;ó
å—ä¿¡ Parameter Change, Bulk In (1 patch), Bulk In (99
patch)
é-ä¿¡ Bulk Out (99 patch)
