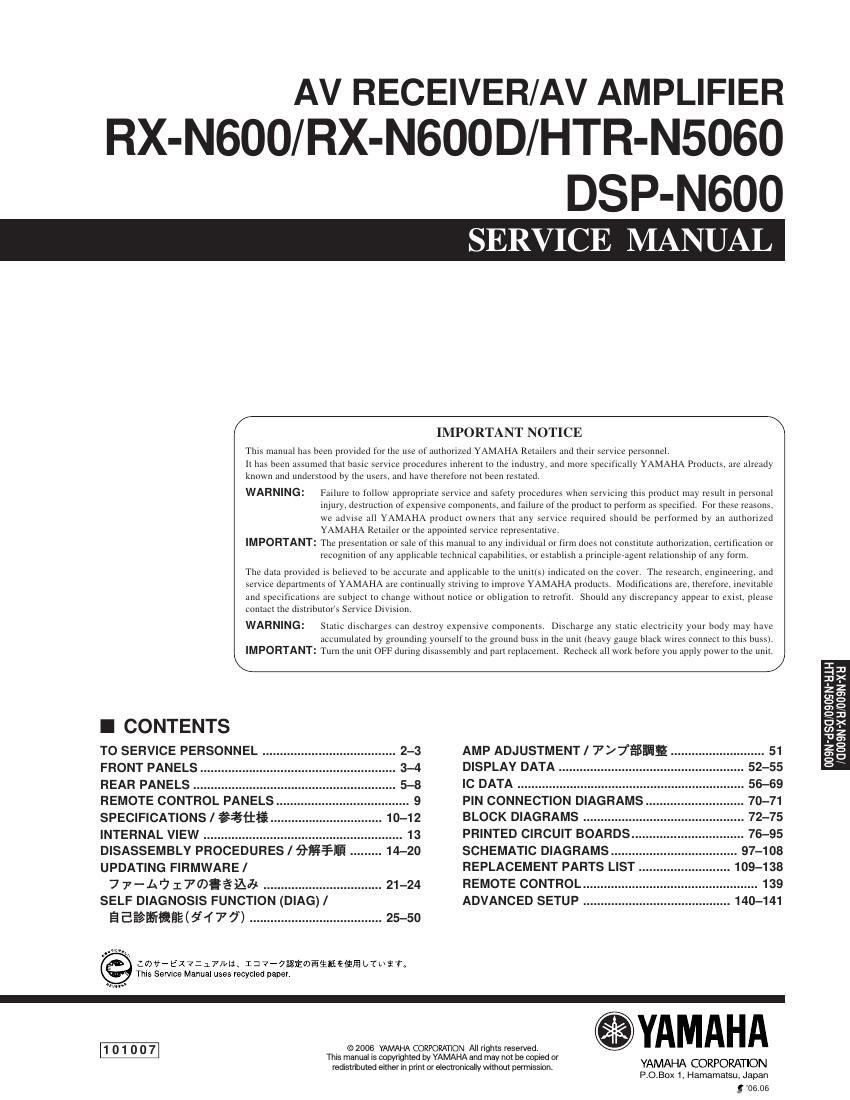

AV RECEIVER/AV AMPLIFIER
RX-N600/RX-N600D/HTR-N5060

DSP-N600

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the iise of authorized YAMAHA Retailers and their service personnel.
it has been assumed that basic service procedures inherent to the industry. and more specifically YAMAHA Products, are already
known attd utiderstood by the users. and have therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product tttay result itt personal
Injury. destruction of expensive compotients. and failure of tire product to perform as specified. For these reasons.
we advise all YAMAHA product owners that arty service required should be performed by art authorized
YAMAHA Retailer or the appointed service representative.

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization. certification or
recognition of any applicable technical capabilities. or establish a pl'InCIpIeragenl relationship of any form,

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover The research, engineering. and
service departments of YAMAHA are continually striving to improve YAMAHA pi-oducts. Modifications are, therefore. inevitable
and specifications are subject to change Without notice or obligation to retrofit. Should arty discrepancy appear to EXISL please
contact the distributors Service Division.

WARNING: static discharges cait destroy expensive cottipouents. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bass in tlie uiitt (heavy gauge black wires connect to this buss).
IMPORTANT: Tutti the iiuit OFF during disassetnbly and part replacement. Recheck all work before you apply power to the iiuit.

3:2

2::

I CONTENTS 23

T0 SERVICE PERSONNEL 2-3 AMP ADJUSTMENT / 7>7°§I5§FIE .. 51 Ea

FRONT PANELS 3-4 DISPLAY DATA 52-55 0
REMOTE CONTROL PANELS 9 PIN CONNECTION DIAGRAMS 70-71
SPECIFICATIONS / §%I:I:Ffi 10-12 BLOCK DIAGRAMS . 72-75
INTERNAL VIEW 13 PRINTED CIRCUIT BOARDS 76-95
DISASSEMBLY PROCEDURES / fifiié¥llfi 14-20 SCHEMATIC DIAGRAMS 97-108
UPDATING FIRMWARE / REPLACEMENT PARTS LIST 109-138
7 7-.Lx") I70§-��5At7$ 21-24 REMOTE CONTROL. 139
SELF DIAGNOSIS FUNCTION (DIAG) / ADVANCED SETUP . 140-141

E EE?EI&§E(§1 77") 25-50

:0vitx7:171w1t 1:777aimfiififififfiffi btLETs
This Service Manual uses recycled paper.

1 01 O 0 7 © 2006 YAMAHA CORPORATION All tights tesewed. g YAM A H A

This manual is copyrighted by YAMAHA and may not be copied or
redistributed etthet in print or electronically Without petmtsston. YAMAHA CORPORATION

P.0.Box 1, Hamamatsu, Japan
:! '06.06

Page 2

RX-NGOO/RX-NflJOD/

E
E
E
E'

RX-NGOO/RX-N GOOD/HTR-NSOGOI
DSP-NGOO

I TO SERVICE PERSONNEL

1. Critical Components Information
Components having special characteristics are marked at
and must be replaced with parts having specifications equal
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.

0 Meter impedance should be equivalent to 1500 ohms
shunted by 0.15uF.

AC LEAKAGE
WALL EQUIPMENT TESTER OR
OUTLET UNDER TEST EQUIVALENT

@Il}

:5

INSULATING
TABLE

0 Leakage current must not exceed 0.5mA.
0 Be sure to test for leakage with the AC plug in both polarities.

"CAUTION"
"F3000, 3001: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE

8A,125V FUSE.
CAUTION

F3000, 3001: REPLACE WITH SAME TYPE 8A,125V FUSE.

ATTENTION

F3000, 3001: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 8A,125V,

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solderfumes or expose
eyes to solder/flux vapor!

if you come in contact with solder or components located inside the enclosure of this product, wash your hands before

handling food.

About Lead Free Solder / fitfi/Wilzjut

All of the P.C.B.s installed in this unitare soldered using
the lead free solder.

Among some types of lead free solder currently available,
it is recommended to use one of the following types forthe
repair work.

-Sn +Ag +Cu (ljn +si|ver +copper)
-Sn +Cu (tin +copper)
-Sn +Zn +Bi (tin +zinc +bismuth)

Caution:
As the melting point temperature of the lead free solder is
about 30°C to 40"C (50"F to 70°F) higherthan that of the lead
solder, be sure to use a soldering iron suitable to each solder.

2FI§EIC3§§ZF§IIZUéé ITEM???

filinul \JSlClabK DDUJEiEbED i373 léfifiélilfFEEOD
cliifcfifiiifiu} \Jémléfii Eifiéfibiig

, Sn+Ag+Cu(§%+$E+fifi)
, Sn+Cu
. Sn+Zn+Bi(§%+fifiG+EX7X>

535% 1
flficl/ \JQOJFEQEIEIJiEfiUDfiGlD/ \75l:l:l3\80~40C
EEE EIEZIEPH< 73600
