Yamaha htr 6260

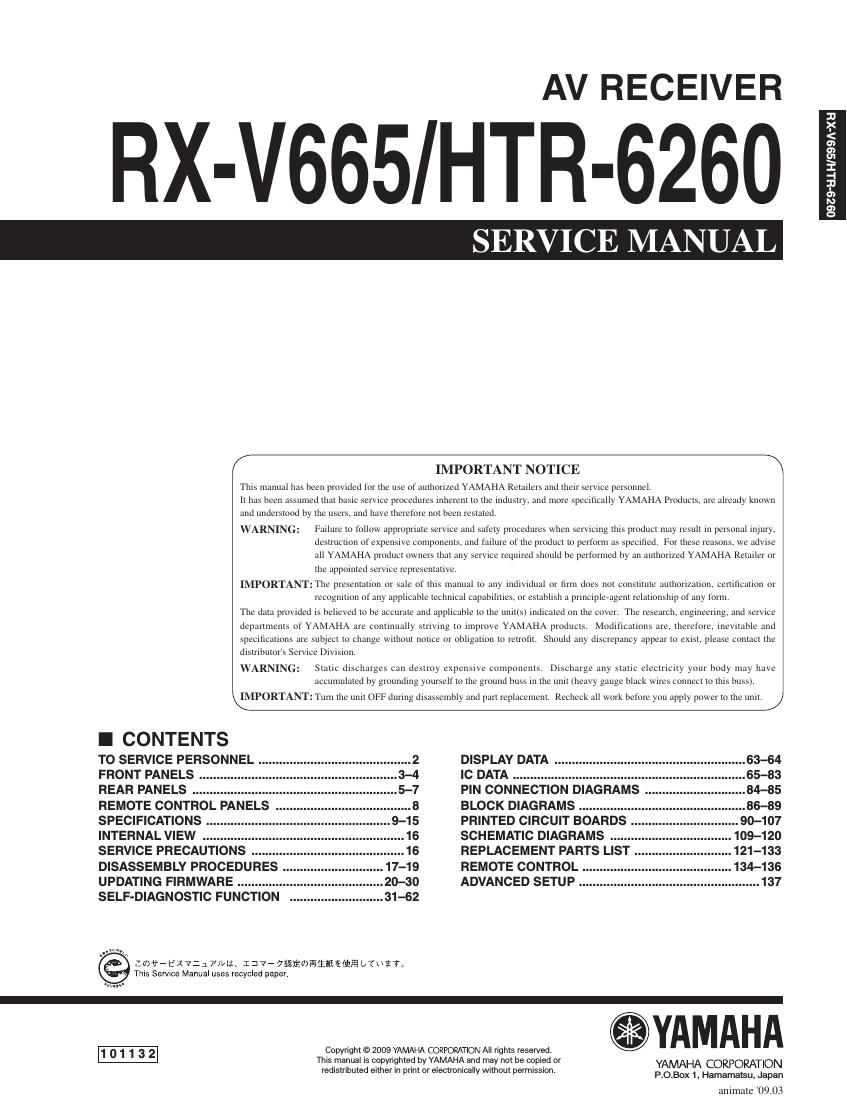

Page 1

AV RECEIVER

RX-V665/HTR-6260

SERVICE MANUAL

3
5
<
a:
as
Q
I
-l
:P
m
N
as
c

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel,
it has been assumed that basic serVice procedures inliereni to the industry. and more specifically YAMAHA Products. are alieady known

and understood by Ihe usersr and have lheretore not been maimed.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury.
deslmclioll ol expensive components. and failure of the product to perform as specified. For these reasons. we advise
all YAMAHA product owners that any serVice required should be performed by an authorized YAMAHA Retailer or
[he appoimed service represenlflliye.
IMPORTANT: The presentation or sale at this manual to any individual or firm does not consmme authorization. cerllticiillon or
recognition of any applicable technical capabilities. or establish a pl'mCIpIeflgelll I'eIanonSIup of any form
The data provided is believed to be accurate and applicable to the iinitisl indicated on the cover, The research. engineering and service
departments of YAMAHA are continually striving to improve YAMAHA pt-oducts, Moditicattons are. therefore, inevitable and
specifications are SubjeCI to change \yllhoul nolice or obligation Io relrofil. Should ally discrepancy appear [0 exlsl. please contacl lhe
distribmor's Service Division,

WARN

: Static discharges can destroy expensive cotnponents Discharge any static electricity your- body may have
acciimtilated by grounding yourselfm the ground buss in the unit (heavy gauge black Wires connect to this buss).

IMPORTANT: Turn the unit OFF during drsassembly and part replacement, Recheck all work betoi-e you apply power to the unii.

I CONTENTS

TO SERVICE PERSONNEL DISPLAY DATA

FRONT PANELS IC DATA
REAR PANELS 5-7 PIN CONNECTION DIAGRAMS 84-85

REMOTE CONTROL PANELS ...8 BLOCK DIAGRAMS 86-89

SPECIFICATIONS PRINTED CIRCUIT BOARDS 90-107
INTERNAL VIEW 16 SCHEMATIC DIAGRAMS . 109-120
SERVICE PRECAUTIONS . REPLACEMENT PARTS LIST . 121-133
DISASSEMBLY PROCEDURES 17-19 REMOTE CONTROL 134-136
UPDATING FIRMWARE 20-30 ADVANCED SETUP 137

SELF-DIAGNOSTIC FUNCTION 31 -62

:wv-tXVzlrlmt 137-73Esimfiiiifiilfilfi l/Tuifi
This Service Manual uses lecycled papal.

fiYAMAHA

1 0 1 1 3 Copyright © 2009 YAMAHA CORPORATION All rlgms reselved,
This manual is copynghled by YAMAHA and may not be copied or
ledlsvlbuled elmer in print or electronically Wlmoul pemllSSIon YAMAHA CORPORATION
P.O.Box 1, Hamamatsu. Japan

animate 09.03

Page 2

o
to
N
9
E
[-
I
\
ID
to
to
>.
X
E

RX-V665/HTR-6260

1l TO SERVICE PERSONNEL ACLEAKAGE
.Critical Components Information WALL EQUIPMENT TESTER OR
Components having special characteristics are marked A and OUTLET UNDER TEST EQUIVALENT

must be replaced with parts having specifications equal to those

originally installed. ® D-

2. Leakage Current Measurement (For 120V Models Only) J_-
When service has been completed, it is imperative to verify '

that all exposed conductive surfaces are properly insulated INSTUALQLTEING
from supply circuits.
- Meter impedance should be equivalent to 1500 ohms shunted - Leakage current must not exceed 0.5mA.
by 0-15 lJF- 0 Be sure to test for leakage with the AC plug in both polarities.
For U model
133 CAUTION
,A,v F3701: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,
125V FUSE."
For C model
CAUTION
F3701: REPLACE WITH SAME TYPE 6A, 125V FUSE.
ATTENTION

F3701: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or
expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder
All of the P.C.I3.s installed in this unit and solder joints are soldered using the lead free solder.
Among some types of lead free solder currently available, it is recommended to use one of the following types for the
repair work.
0 Sn + Ag + Cu (tin + silver + copper)

0 Sn + Cu (tin + copper)
0 Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
