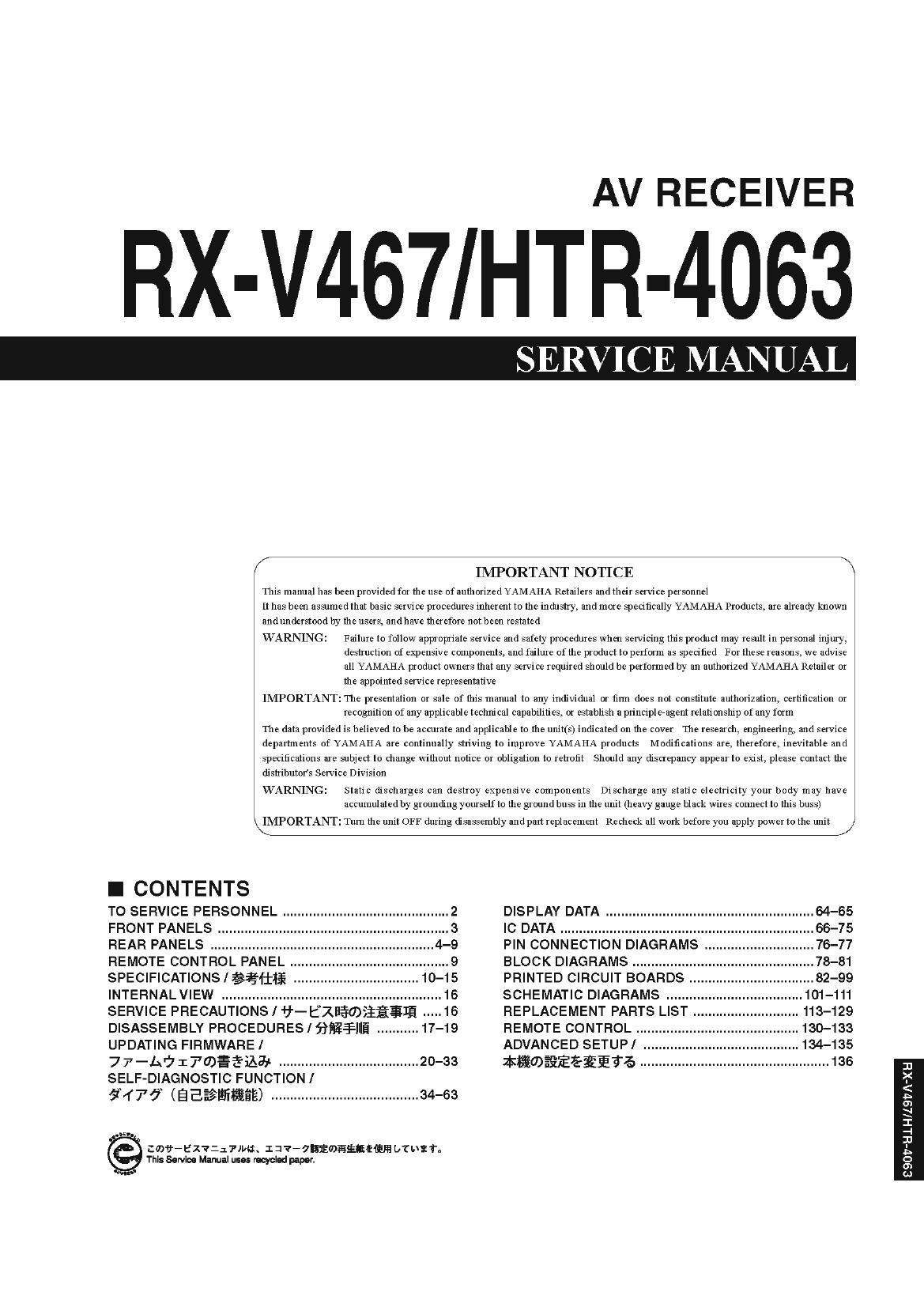

AV RECEIVER

RX-V467/HTR-4063

SERVICE MANUAL

/ IMPORTANT NOTICE \

This manual has been provided for the use of authorizedYAMAHA Retailers and their service personnel

It has been assumedthat basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known

and understood by the users> andhave therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure ofthe product to perform as specified For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover The research, engineering, and service

departments of YAMAHA are continually striving to improve YAMAHA products Modifications are, therefore, inevitable and

specifications are subject to change without notice or obligation to retrofit Should any discrepancy appear to exist, please contact the

distributor's Service Division

WARNING: Static discharges can destroy expensive components Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black Wires connect to this buss)

QMPORTANT: Turn the unit OFF during disassembly andpart replacement Recheck all work before you apply power to the unit

I CONTENTS

TO SERVICE PERSONNEL ............................................ 2

DISPLAY DATA ....................................................... 64-65

FRONT PANELS ..3 IC DATA ....................................... 66-75
REAR PANELS .................. .4-9 PIN CONNECTION DIAGRAMS . .76-77
REMOTE CONTROL PANEL .. ....9 BLOCK DIAGRAMS .............. ..78-81
SPECIFICATIONS/afiiifi 10-15 PRINTED CIRCUIT BOARDS ..32-99
INTERNAL VIEW ............................................ 16 SCHEMATIC DIAGRAMS ........ .101-111
SERVICE PRECAUTIONS I U- EXHSOJSEEEIE ..... 16 REPLACEMENT PARTS LIST . 113-129
DISASSEMBLY PROCEDURES lfiffiailllfi ........... 17-19 REMOTE CONTROL .. 130-133
UPDATING FIRMWARE/ ADVANCED SETUPI 134-135
7 7-.Lx'7 I7®§¥Efl3fi ..................................... 20-33 ASflGJEEEEEE'fi'é .................................................. 136
SELF-DIAGNOSTIC FUNCTION /

-��477 (Eaiéflfififié) ....................................... 34-63

zmfi-Ezvzlwbtt, .T. :7-9fliofifltfifii bfl-Eh
This Service Manual uses recycled paper.
