Yamaha htr 3063

Page 1

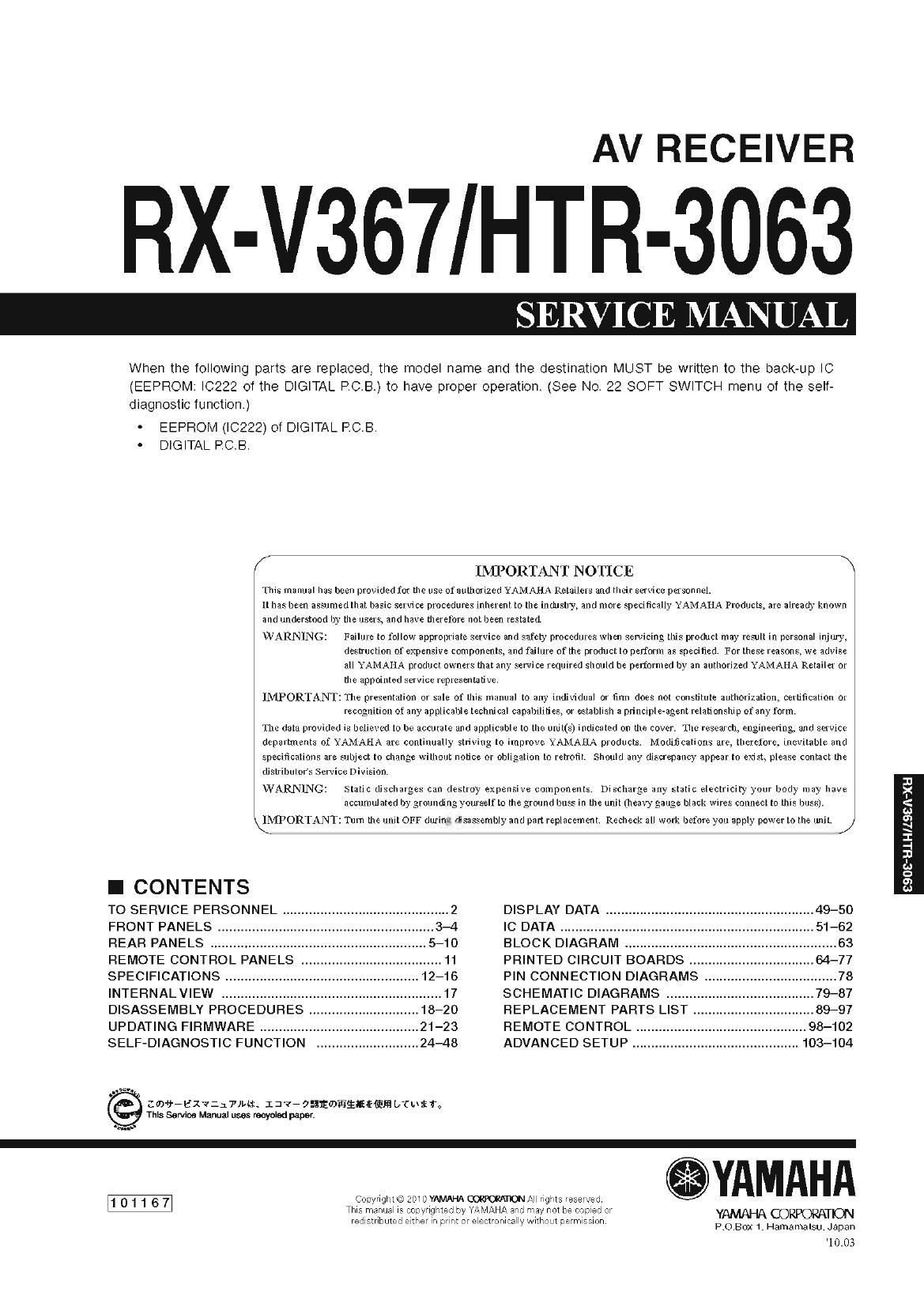

AV RECEIVER

RX-V367/HTR-3063

SERVICE MANUAL

When the following parts are replaced, the model name and the destination MUST be written to the back-up IC
(EEPROM: |C222 of the DIGITAL PCB.) to have proper operation. (See No. 22 SOFT SWITCH menu of the self-
diagnostic iunction.)

EEPROM 00222) of DIGITAL PCB.
0 DIGITAL ROB.

/ IMPORTANT NOTICE \

This manual has been provided for the use ofauthorized YAMAHA Retailers and their service personnel.

it has been assumedthat basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known

and understood by the users, and have therefore not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative.

INIPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable iechni cal capabilities, or establish a principle-agent relationship or any form.

The data provided is believed to be accurate and applicable to 18 uni t(s) indicated on the cover. The research, engineering, and service

departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and

specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exj st, please contact the

distribulors Service Division.

WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).

QMPORTANT: Turn the unit OFF durinu rtsassembly and part replacement. Recheck all work before you apply power to the unit. /

I CONTENTS

TO SERVICE PERSONNEL .. ...2 DISPLAY DATA . .49-50
FRONT PANELS ......................................................... 3-4 IC DATA ................................................................... 51 -62
REAR PANELS ......................................................... 5-10 BLOCK DIAGRAM ........................................................ 63
REMOTE CONTROL PANELS ..................................... 11 PRINTED CIRCUIT BOARDS ................................. 64-77
SPECIFICATIONS ................................................... 12-16 PIN CONNECTION DIAGRAMS ................................... 78
INTERNAL VIEW .......................................................... 17 SCHEMATIC DIAGRAMS ....................................... 79-87
DISASSEMBLY PROCEDURES ............................. 18-20 REPLACEMENT PARTS LIST ................................ 89-97
UPDATING FIRMWARE ................ .21-23 REMOTE CONTROL .. 98-102
SELF-DIAGNOSTIC FUNCTION ........................... 24-48 ADVANCED SETUP ............................................ 103-104

emu-527:;7ML I :I'V- flfimwfiififfififi LCmfi 1'9
This Service Manual uses recycled paper.

101167

Copyright© 2010 YMMHA Wm All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission

YAMAHA

YAMAHA CORPORATION

P.O.Box 1. Hamamalsu. Japan
'10.03

5?
<
OJ
0'!
E
I
_|
:F
m
D
a)
DJ

Page 2

M
t9
0
1
CE
I-
I
\
h
(D
0"
>.
X
D:

RX-V367IHTR-3063

I TO SERVICE PERSONNEL

AC LEAKAGE
1. Critical Components Information WALL EQUIPMENT TESTER OR
Components having special characteristics are marked A: and OUTLET UNDER TEST EQUIVALENT
must be replaced with parts having specifications equal to those
originally installed. ® :ID-
2. Leakage Current Measurement (For 120V Models Only) J_--
When service has been completed, it is imperative to verify INSULATING
that all exposed conductive surfaces are properly insulated TABLE
from supply circuits.
0 Meter impedance should be equivalent to 1500 ohms shunted 0 Leakage current must not exceed 0.5mA.
by 015 IJF ° Be sure to test for leakage with the AC plug in both polarities.
For U model
n33 CAUTION
-A-V F1501: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,
125V FUSE."
For C model
CAUTION
F1501: REPLACE WITH SAME TYPE 6A, 125V FUSE.
ATTENTION

F1501: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A, I25V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or
expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.

About lead free solder

All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the
repair work.
0 Sn + Ag + Cu (tin + silver + copper)

0 Sn + Cu (tin + copper)
~ Sn + Zn + Bi (tin + zinc + bismuth)

Caution:
As the melting point temperature of the lead free solder is about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
