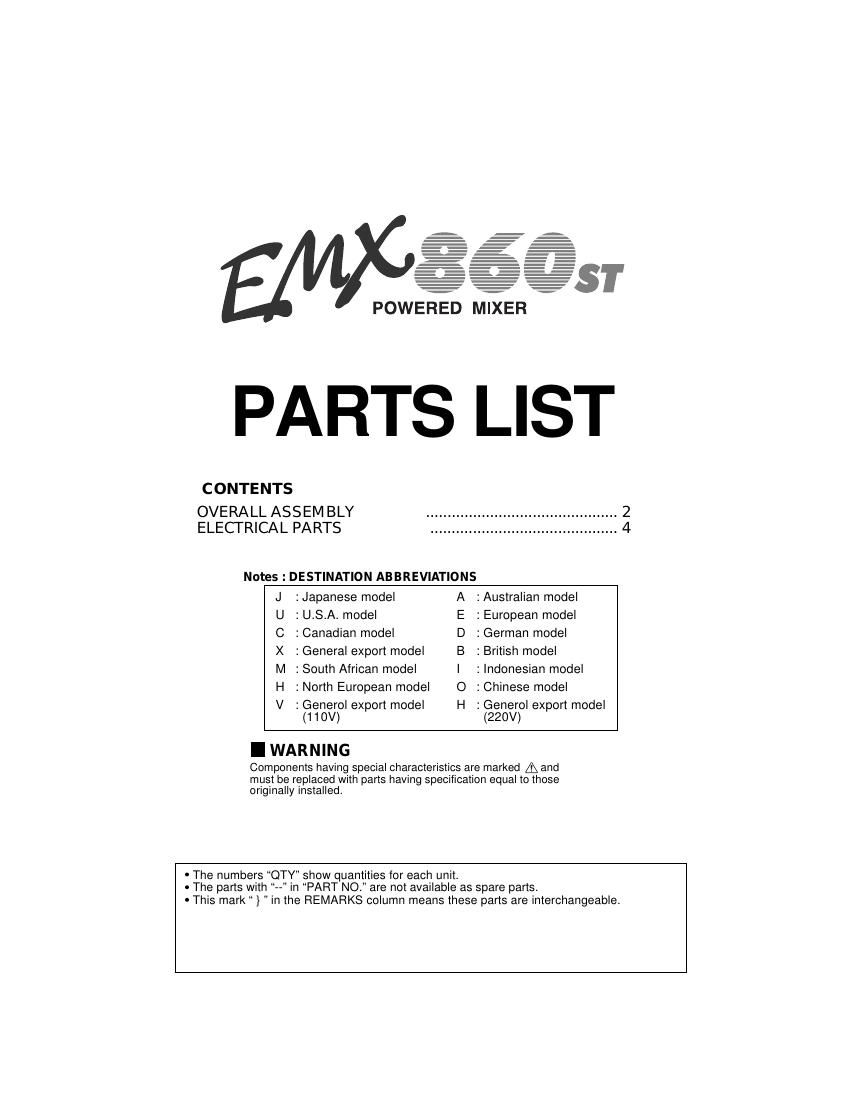

ST
POWERED MIXER
PARTS LIST
C ONTE NTS
OVERALL ASSEMBLY
ELECTRICAL PARTS
Notes : DESTINATION ABBREVIATIONS
J :Japanese model A :Australian model
U : U.S.A. model E : European model
C : Canadian model D : German model
X : General export model B : British model
M : South African model I : Indonesian model
H : North European model 0 : Chinese model
V : Generol export model H : Generol export model
(110V) (220V)
I WARNING
Components having special characteristics are marked A and
must be replaced with parts having specification equal to those
originally installed.
- The numbers QTY show quantities for each unit
- The parts with in PART NO. are not available as spare parts
- This mark ) in the REMARKS column means these parts are interchangeable.
