Yamaha emx 5000

This is the 124 pages manual for yamaha emx 5000.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 124
left right

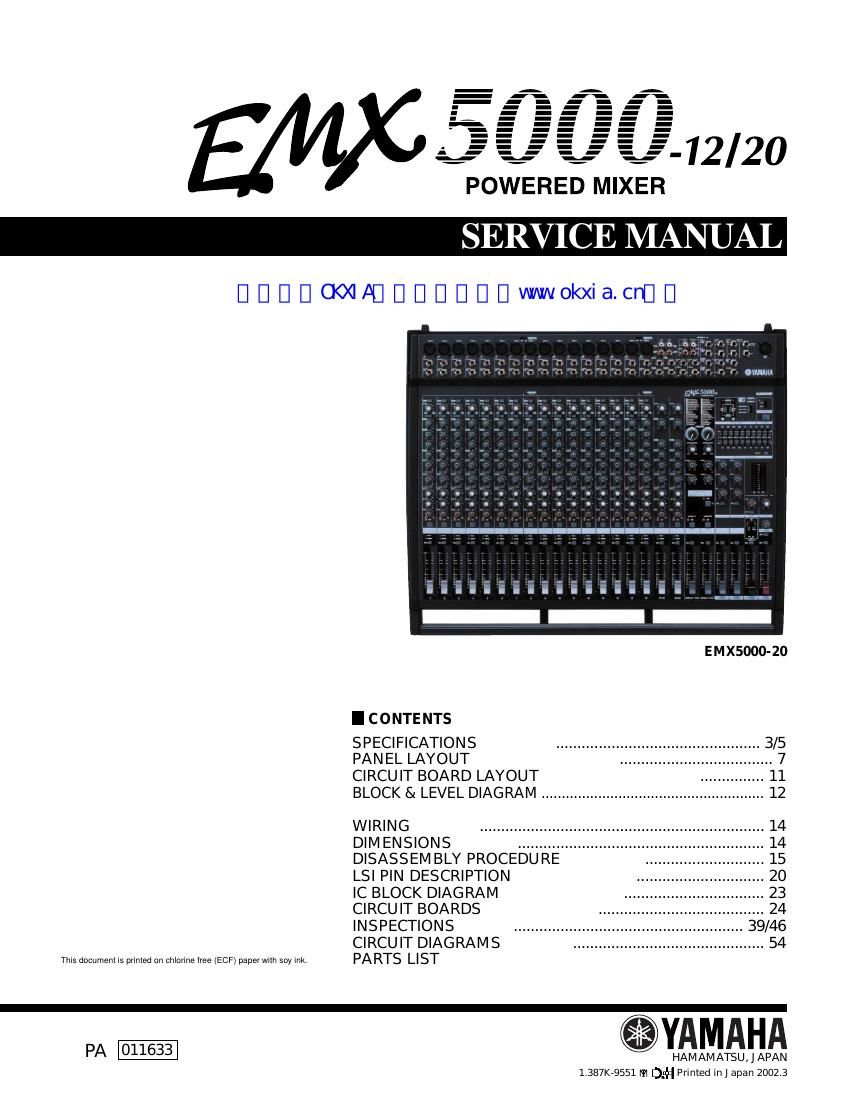

yamaha emx 5000

Extracted text from yamaha emx 5000 (Ocr-read)


Page 1

EMX5000-12/20 2 WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. * This applies only to products distributed by YAMAHA KEMBLE MUSIC (U.K.) LTD. WARNING Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributorÕs Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. This mark urges servicemen to pay attention.

Page 2

EMX5000-12/20 3 SPECIFICATIONS Maximum output powerSPEAKERS: 500 W+500 W/4W@0.5% THD at 1 kHz 325 W+325 W/8W@0.5% THD at 1 kHz BRIDGE: 1000 W/8W@0.5% THD at 1 kHz Frequency response20 Hz-20 kHz +1 dB, -3 dB @1 W output into 8W (SPEAKERS OUT) 20 Hz-20 kHz +1 dB, -3 dB @+4 dB output into 600W (ST OUT, ST SUB OUT, MONO OUT, AUX SEND, EFFECT SEND) Total harmonic distortionLess than 0.5% @20 Hz-20 kHz, 250 W output into 4W (SPEAKERS OUT) Less than 0.3% @20 Hz-20 kHz, +14 dB output into 600W (ST OUT, ST SUB OUT, MONO OUT, AUX SEND, EFFECT SEND) Hum & noise (Average, Rs=150W) (with 20 Hz-20 kHz BPF)-128 dB equivalent input noise, -65 dB residual output noise (SPEAKERS OUT) -95 dB residual output noise (ST OUT, ST SUB OUT, AUX SEND) -84 dB (ST OUT, MONO OUT)ST master/MONO master fader at nominal level and all chan- nel On switches off and all channel fader at minimum. -64 dB (68 dB S/N) (ST OUT, MONO OUT)ST master fader at nominal level and one channel On switch on and one channel fader at nominal level and one channel Gain control at nominal level. -81 dB (AUX SEND)Master fader at nominal level and all channel On switches off and all channel level control at minimum. -80 dB (EFFECT SEND) All channel level control at minimum. Maximum voltage gain108 dB INPUT A/B to SPEAKERS OUT 84 dB INPUT A/B to ST OUT, MONO OUT 80 dB INPUT A/B to AUX SEND (PRE) 90 dB INPUT A/B to AUX SEND (POST) 78 dB INPUT A/B to EFFECT SEND 58 dB ST CH IN to ST OUT Crosstalk at 1 kHz 68 dB adjacent input, 68 dB input to output Input channel equalization±15 dB Maximum HIGH 10 kHz shelving* MID 250 Hz-5 kHz peaking LOW 100 Hz shelving* * Turn over/roll off frequency of shelving: 3 dB below maximum variable level. ST Input channel equalization±15 dB Maximum HIGH 10 kHz shelving* MID 2.5 kHz peaking LOW 100 Hz shelving* * Turn over/roll off frequency of shelving: 3 dB below maximum variable level. CH peak indicators Red LED on each channel lits when POST EQ signal reaches the level -3 dB below clipping. CH signal indicators Green LED on each channel lits when POST EQ signal reaches the level -10 dB. Meters 13 points LED meter Power amp select switch 500W + 500W, 300W + 300W, 100W + 100W Limiter Comp. : THD³0.5% (SPEAKERS OUT) LIMIT indicators Turn on : THD³0.5% (SPEAKERS OUT) Graphic equalizer 9 bands (63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz), ±12 dB Maximum Internal digital effect 1 16 programs, parameter control Internal digital effect 2 16 programs, parameter control, tap delay control, foot switch (DIGITAL EFFECT ON/OFF, TAP) Foot switch (FC5) Digital effect 2 mute: on/off, Tap delay Protection circuit (Power amp) POWER switch on/off mute, DC detection, TEMP (heatsink temp. ³90¡C) Fan circuit stop - low speed (50¡C) - variable - high speed (70¡C) Phantom power +48 V (balanced input) Option FC5 (Foot switch), RK-124 (EMX5000-12) Power requirement/ Power consumptionUSA and Canada: 120 V AC 60 Hz, 400 W Europe: 230 V AC 50 Hz, 550 W Other: 240 V AC 50 Hz, 550 W General specifications Dimensions (WxHxD) 682 ´ 158 ´ 538 mm (EMX5000-20) / 478 ´ 158 ´ 538 mm (EMX5000-12) Weight 19 kg (EMX5000-20) / 15 kg (EMX5000-12) Accessories Power cord, Owners Manual
