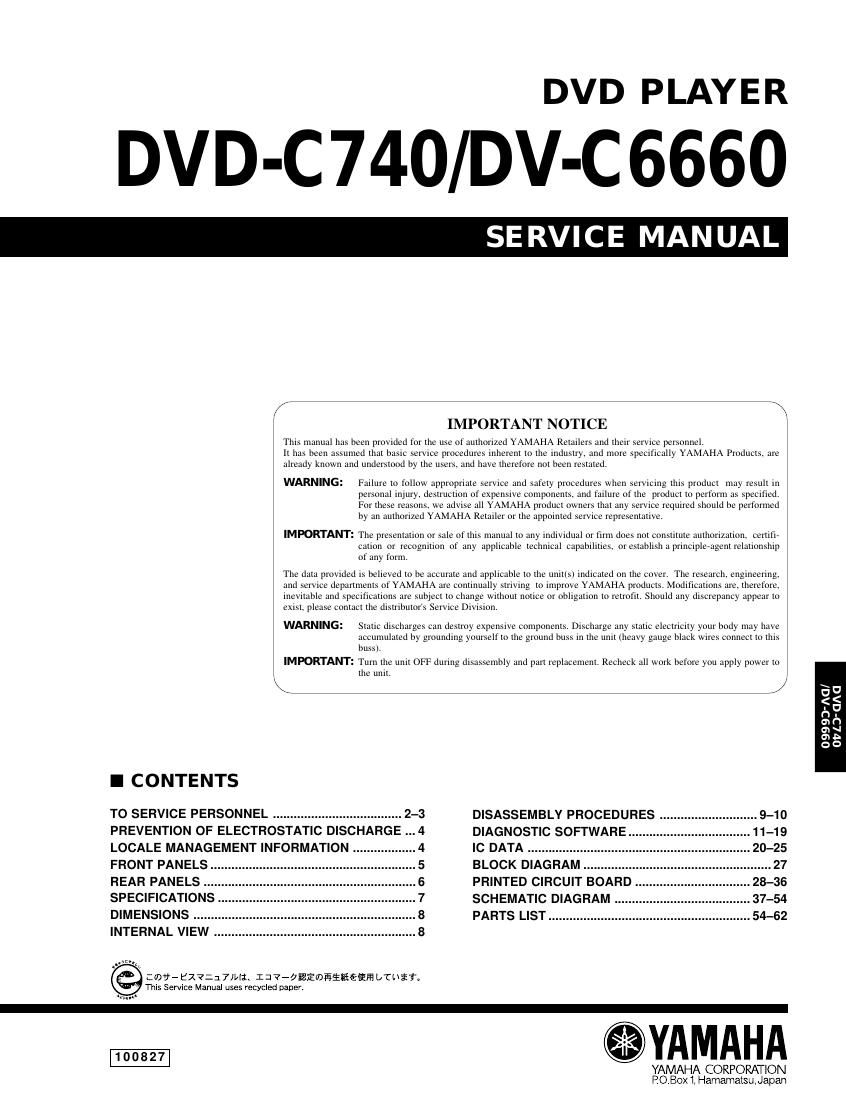

Page 1

DVD PLAYER

DVD-C740/DV-C 6660

SERVICE MAN UAL

'\
IMPORTANT NOTICE

This manual has been provided for die use of aiiiliorized YAMAHA Reiailers and ilieir service personnel
lr has been assumed ihai basic service procedures inhereni io ihe indiisiry. and more specifically YAMAHA Producis. are
already known and undei-srood by rhe users. and have iherefore nor been resrared.

WARNING: Failure io follow appropriare service and saferv procedures vvlien servicing ihis produci niay resiilr in
personal injury. desii-ucrion of expensive cornponenis. and failure of rhe produci lo perform as specified,
For rhese reasons. vve advise all YAMAHA produci owners rhar any service required should be performed

by an aiirhorized YAMAHA Relailei- or rhe appoinred service represenlanve.

IMPORTANT: The preseniarion or sale of ihis manual ro any individual or firm does not consume aiirhorizarion. cemfir
caiion or recogmlion of any applicable iechnical capabiliries. or esrablisli a pl'lllciplerageni relaiionsliip
of any form.

The daia provided is believed to be accuraie and applicable io ilie |IIIII(S) indicared on rhe cover. The research. engineering.

and sei~vice departments of YAMAHA are coniinually sirivlng ro iinpi-ove YAMAHA prodiic . Modificauons are. rherefore

inevirable and specificaiions are subyeci to Change iviilioiii lloIIce or obligafion ro reirofii. Should any discrepancy appear lo
exisl. please conraci ihe dismblltor's Service Division.

WARNING:

Static discharges can desii-oy expensive coinponenis. Discharge any siaric eleciriciry your body may have
accuniulaied by grounding yourself io ihe ground biiss in ilie uml (hem). gauge black wires connecr lo iliis
buss).

IMPORTANT: Tiirn ilie unir OFF during disasseinbly and pan replacenieni. Recheck all work before you apply povver [0
Ike \IIIII.

K /

\
U
.<
n
a
a
01
O

0I7L D'OAO

I CONTENTS

TO SERVICE PERSONNEL 2-3
PREVENTION OF ELECTROSTATIC DISCHARGE 4
LOCALE MANAGEMENT INFORMATION
FRONT PANELS
SPECIFICATIONS
INTERNAL VIEW

mmflmmb

zmv- Ex72171m. III V-Qflimfiifibfiéfifi unlit
This Service Manual uses recycled paper.

DISASSEMBLY PROCEDURES 9-10
DIAGNOSTIC SOFTWARE 11-1 9
IC DATA 20-25
BLOCK DIAGRAM 27
PRINTED CIRCUIT BOARD 28-36
SCHEMATIC DIAGRAM 37-54
PARTS LIST 54-62

.YAMAHA

YAMAHA CORPORATION
0.80m Hamamatsu Japan

Page 2

DVD-C740/DV-C6660

I TO SERVICE PERSONNEL

1. Critical Components Information AC LEAKAGE
Components having special characteristics are marked A WALL EQUIPMENT TESTER OR
and must be replaced with parts having specifications equal OUTLET UNDER TEST EQUIVALENT
to those originally installed.

2. Leakage Current Measurement (For 120V Models Only) ® I:

When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated :
from supply circuits. INSTLAIEAIENG

0 Meter impedance should be equivalent to 1500 ohm shunted
by 0.15m:

o Leakage current must not exceed 0.5mA.

0 Be sure to test for leakage with the AC plug in both

polarities.
THE DVD AUDIO/VIDEO PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain traces of chemicals found by the California Health and
Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR
ANY REASON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes
or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands
before handling food.

WARNING: Laser Safety

This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.

1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.

DVD-C740

0
l0
9
5
up
>
Q

2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.

3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.

Laser Emitting conditions:

1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through
the lens of the laser pick-up unit. Do not attempt any servicing during this period!

If no disc is detected. the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.

2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
