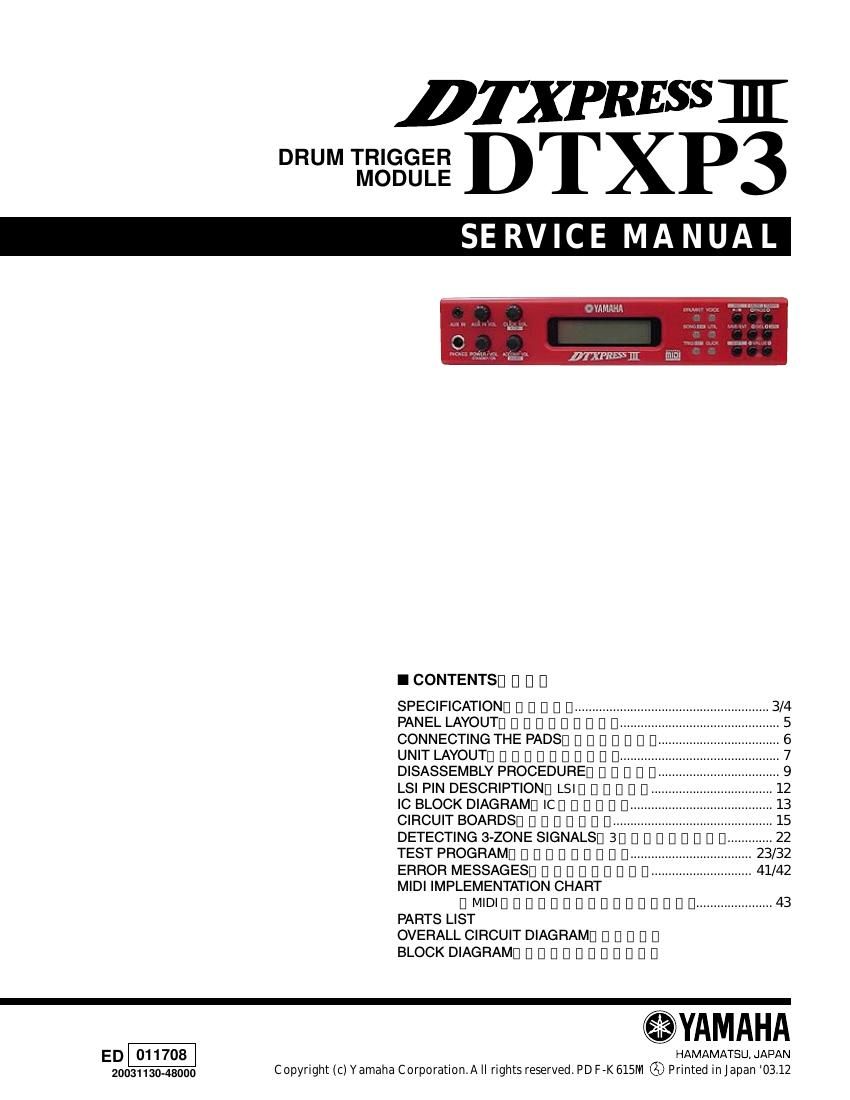

Page 1
DTXP3
2
IMPORTANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that
basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the
users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specified. For these reasons, we
advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer
or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and
changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING:Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to
cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT-
SOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to
solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
LITHIUM BATTERY HANDLING This product uses a lithium battery for memory back-up.
WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following
precautions when handling or replacing lithium batteries.
- Leave lithium battery replacement to qualified service personnel.
- Always replace with batteries of the same type.
- When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
- Never reverse the battery polarities when installing.
- Do not short the batteries.
- Do not attempt to recharge these batteries.
- Do not disassemble the batteries.
- Never heat batteries or throw them into fire.
ADVARSEL!Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det
brugte batteri tilbage til leverandøren.
VARNINGExplosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens instruktion.
VAROITUSParisto voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch Official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF
BATTERIES.
- Please refer to the diassembly procedure for the removal of Back-up Battery.
- Leest u voor het verwijderen van de backup batterij deze beschrijving.
«-
æ½¢Ü?Uº^-oM-b{
<0c3f0b91039b07a1036c036f07a605f50362039403710d300d4303620394062907650355034b039303870362027b07a605f508cc0374037803b1029403cf03b503da03c703e1039e03e7037008a60c06035e03950368038b0377039b08960f3b0360036f05
3c035e034d027b>
WARNING (-
¶ Íw«-)
Components having special characteristics are marked and must be replaced with parts having specification equal to those originally installed. <000104b903770de60dbc0378027a04860ab6039b04a108cb036203940368038a0374094f0f4103730de60dbc03700362027b07a605f5039b0362039409d407f90378027a04860ab603770368038a0d9e036308a60c0603770de60dbc039b035d08960f3b05
3c035e034d027b>
Page 2
3
DTXP3
SPECIFICATIONS
Tone Generator16 bit AWM2
Maximum polyphony32
Voices990 drum, percussion voices and effects
128 keyboard voices (GM system level 1)
Drum kits48 Preset
32 User memory locations
Trigger setups7 Preset
4 User memory locations
Sequencer tracks2 (TR1, TR2)
Song control
Main song Start/Stop, note chase
Pad song 3 songs can be played at the same time, Trigger Control
Other Sequencer FunctionsMIDI sync play, Quantize (while recording, in Song Edit job mode),
Mute (rhythm mute, drum instrument mute), Groove Check
Song95 Preset
32 User memory locations
Record modesReal-time
Controls
LED buttons 6 (DRUMKIT, SONG, TRIG, VOICE, UTIL, CLICK)
Buttons 9 ( / , SAVE/ENTER, SHIFT, PAGE / , SELECT / , VALUE-/+
Knobs MASTER VOLUME/POWER SW (push), ACCOMP. VOLUME, AUX VOLUME,
CLICK VOLUME
Display16 x 2 LCD display (w/Back light)
Connections
Front Panel Aux input (stereo mini jack)
Head phone (stereo phone jack)
Rear Panel MIDI input/output
Foot controller (stereo phone jack)
HOST SELECT SW
TO HOST (mini DIN jack)
Output L/MONO (mono phone jack)
Output R (mono phone jack)
Trigger Inputs 1 - 8 (stereo phone jack L : trigger input, R : rim switch)
Trigger Input 9/10 (stereo phone jack L, R : trigger input)
Trigger attenuation switch 1-6 (DIP SW)
Power supplyDC 12V/AC adaptor (PA-3C)
Power Requirement4.8 Watt
Dimensions (W x H x D)220 x 240 x 44 mm (8-11/16 x 9-3/16 x 1-5/16)
Weight1.6 kg (3 lbs 8 oz)
AccessoriesOwners Manual
AC adaptor
