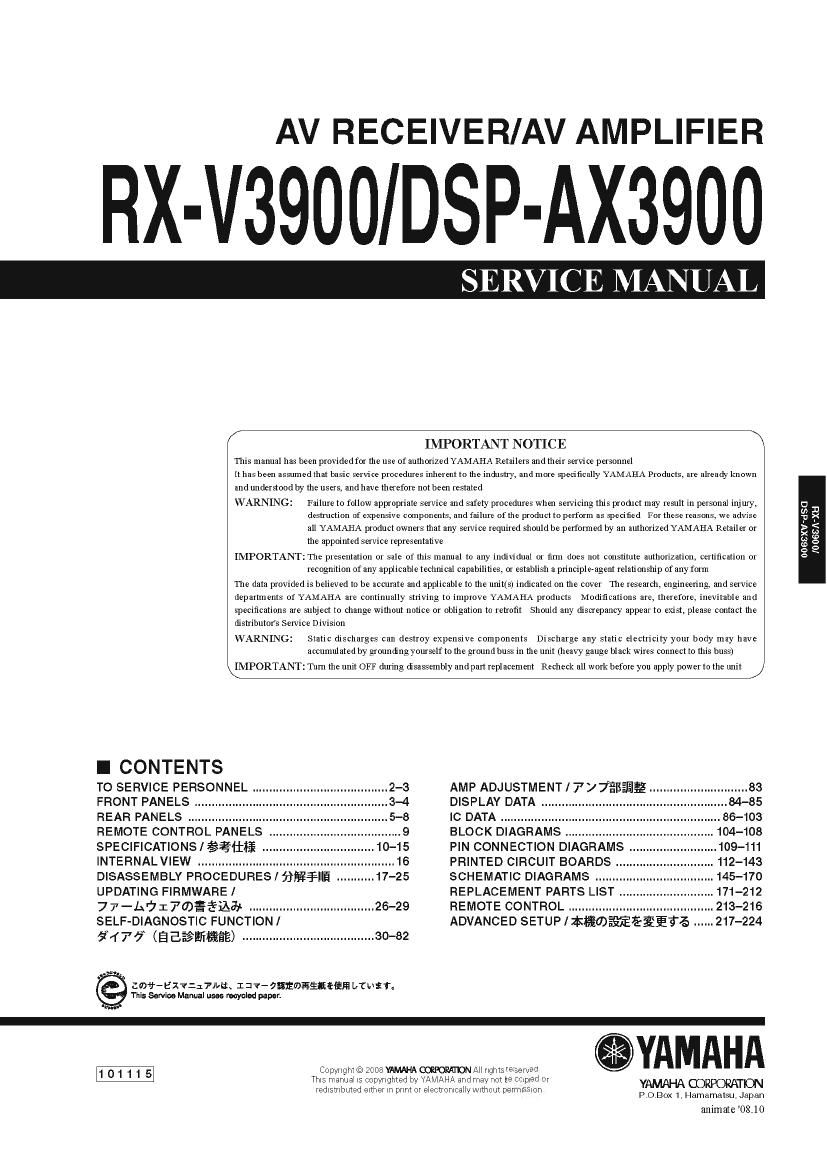

AV RECEIVER/AV AMPLIFIER

RX-V3900/DSP-AX3900

ER ICEM NU

IMPORTANT NOTICE

This manual has been providedfor the use of authorized YAMAHA Retailers and their service personnel

lt hasbeen assumedthat basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known

and understood by the users, and have thucfon: not been restated

WARNING: Failure to follow appropriate service and safety procedures when servicing this prodict may result in personal injury,
destruction of expensive components, and failure of the productto perform as specified For these reasons, we advise
all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or
the appointed service representative

IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship or any form

The data provided is believed to be accurate and applicable to the Imit(S) indicated on the cover The research, engineering, and service

departments of YAMAHA are continually striving to improve YAMAHA products Modifications are, therefore, inevitable and

specifications are subject to change without notice or obligation to retrofit Should any discrepancy appear to exist, please contact the

distributors Service Division

WARNING: Static discharges can destroy expensive components Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss)

IMPORTANT: Turn the unit OFF during disassembly and part replacement Recheck all work before you apply power to the unit

I CONTENTS

TO SERVICE PERSONNEL
FRONT PANELS .............

REAR PANELS .....................
REMOTE CONTROL PANELS
SPECIFICATIONS/ézfiflfi
tNTERNALVIEw ..................
DISASSEMBLY PROCEDURES/fiflailllfi .
UPDATING FIRMWARE /

77-A'717'0Ei553i
SELF-DIAGNOSTIC FUNCTION /
-��477 (aaéémmsfi) ..

zmfi-Ezvznwhue I :Iv-amgwfiimfifl bruit
This Serving Manual uses recycled paper:

101115

Copyright © 2008 YAMAHA OOIIPomnN
This rriahda is copyrighted by YAMAHA ahdrhay moth ipi r
redistributed eltler in print or electroricallyvyithedt permi ioh

AMP ADJUSTMENT / 7y7°§|i§m§
DISPLAY DATA ................................
IC DATA ...............
BLOCK DIAGRAMS
PIN CONNECTION DIAGRAMS
PRINTED CIRCUIT BOARDS .
SCHEMATIC DIAGRAMS .
REPLACEMENT PARTS LIST
REMOTE CONTROL .
ADVANCED SETUP / $fi®fi-��r£§¢é

. 104-108

109-111
.112-143
.145-170
.171-212
.213-216
.217-224

YAMAHA

YAMAHA CORPORATION

P o Box 1, I lamamnlsu, Japan
animals '08.10

All rights r» semi '

U

I
%>.<
:<

8
§:
as

Page 2

RX-V3900IDSP-AX3900

I TO SERVICE PERSONNEL

AC LEAKAGE
. Critical Components information WALL EQUIPMENT TESTER OR
Components having speCIal characteristics are maiked A and OUTLET UNDER TEST EQUIVALENT

must be replaced with parts having specifications equal to those
originally installed ® D-

2. Leakage Current Measurement (For 120V Models Only) J_-
When service has been completed, It is imperative to verify E
that all exposed conductive surfaces are properly Insulated
from supply circuits

- Meter impedance should be equivalent to 1500 ohms shunted
by 015 uF

lNSULATING
TABLE

0 Leakage current must not exceed 0i5mAr
0 Be sure to test for leakage With the AC plug in both polarir
ties

CAUTION

Fl: FOR CONTINUED PROTECTION AGAlNST RISK OF FlRE REPLACE ONLY WlTH SAME TYPE 10A, 125V
FUSE.

F2: FOR CONTINUED PROTECTlON AGAlNST RlSK OF FIRE, REPLACE ONLY WITH SAME TYPE 4Ai 125V
FUSE

CAUTION

Fl REPLACE WITH SAME TYPE 10A 125V FUSE
F2 REPLACE WITH SAME TYPE 4A, 125V FUSE
ATTENTION

F1 UTILISER UN FUSlBLE DE RECHANGE DE MEME TYPE DE 10A 125V
F2 UTILISER UN FUSlBLE DE RECHANGE DE MEME TYPE DE 4A, 125V.

RX-V3900l

o
o
m
m
><
5
D.
m
n

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer. or birth defects or other reproductive
harm.

DO NOT PLACE SOLDER ELECTRlCAL/ELECTRONlC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVERl

Avoid prolonged unprotected contact between solder and your skin! When solderingl do not inhale solder fumes or
expose eyes to solder/flux vapor!

if you come in contact with solder or components located inside the enclosure of this product wash your hands before
handling food.

About lead free solder / fififiIV/fiIZ'DL?

All of the P.C.B.s installed in this unit and solder joints are
soldered using the lead free solder

Among some types of lead free solder currently available,
it Is recommended to use one of the following types for
the repair work

0 Sn + Ag + Cu (tin + Silver + copper)

- Sn + Cu (tin + copper)

. Sn + Zn + Bi (tin + Zinc + bismuth)

Caution:
As the melting pomt temperature of the lead free solder
is about 30°C to 40°C (50°F to 70°F) higher than that of
the lead solder be sure to use a soldering iron suitable
to each solder

$%K%fi$hfv%¢dfwfifi£$dnyfifiwm
$é§é%dfi%nyficnyfifidehzmiao
fifinyfimub mmaoxaeeanyfiofimafifibsso

- Sn+Ag+Cu ,+f::.p+ég
- Sn+Cu (1;+
- Sn+Zn+Bi [5 +113: + 6171)

SEE :
fifinyfimflefigmfifi®%AUAyfimm&3o~
40°Ct§i§7ej < 7; DTVE§W>ZR Imam); wakes
Tc/ vac-(acme < féém
