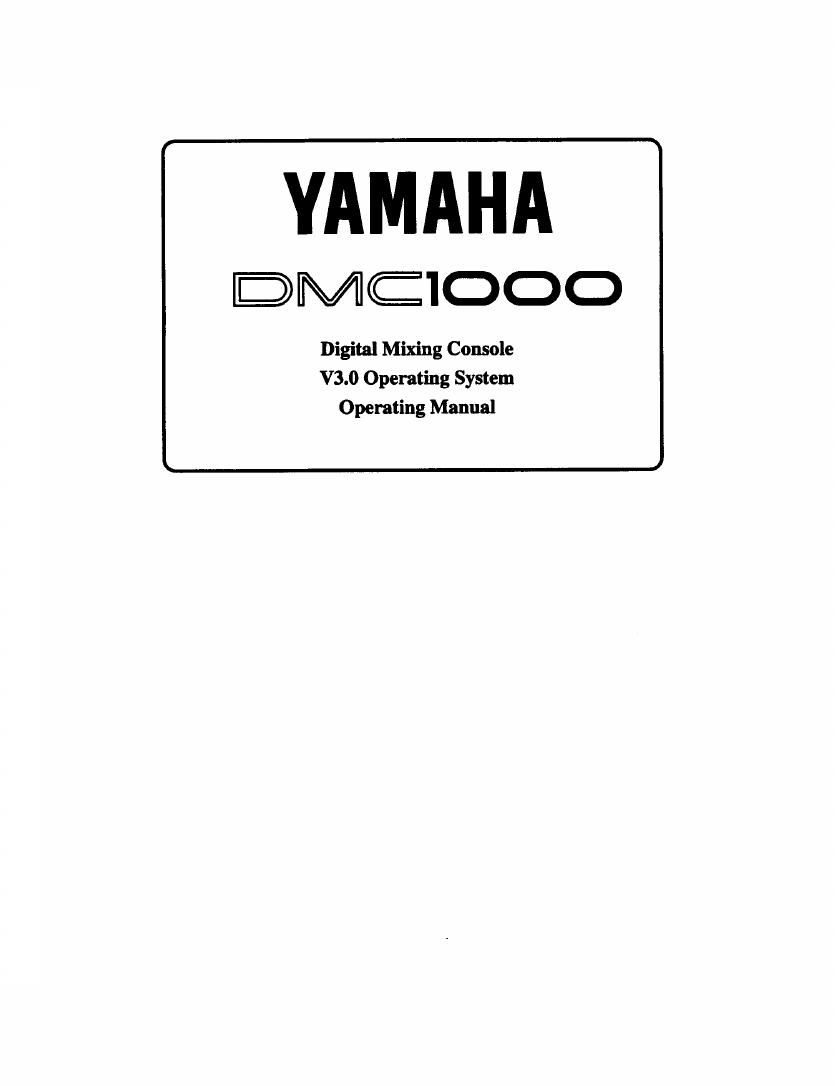

Page 1
YAMAHA
jMCIOOO
Digital Mixing Console
V3.0 Operating System
Operating Manual
Page 2
Operating Precautions & Notes i
Operating Precautions & Notes
Please read through the following information before operating the DMC 1000.
Safety Information
Make sure the DMC1000 power cord is not located in a position where it is likely to be
walked on and/or pinched by other equipment placed near to it.
Make sure that the DMC1000 is grounded (earthed) correctly. For a 3-core power cable
make sure that the AC receptacles earth terminal is actually grounded (earthed). For a 2-eore
power cable connect the DMC1000 GND terminal to an AC receptacle earth point.
Do not expose the DMC1000 to extremes of humidity.
Do not place the DMC1000 near water.
Do not place the DMC1000 in areas subject to extremely low temperatures.
Do not place the DMC1000 in locations subject to excessive dust.
Do not place the DMC1000 in an area subject to vibration.
Do not expose the DMC1000 to severe shocks.
Do not place the DMC1000 in direct sunlight, close to heating units. or in areas subject to
high temperatures.
The ambient temperature where the DMC1000 is operated should be between O'C and 35'C
(32°F and 95°F).
Warnings
The DMC1000 should be connected to an AC receptacle of the type described in this
Operating Manual or as marked on the DMC1000.
To reduce the risk of electric shock. do not remove the cover of the DMC1000.
To reduce the risk of fire or electric shock, do not expose the DMC 1000 to rain or moisture.
In an extremely humid environment, condensation may form on the inside and outside of
the DMC1000. If condensation does occur, leave the DMC1000 powered on, but do not use
it until the condensation has cleared.
The DMC1000 contains no user serviceable parts. Refer all servicing to qualified personnel.
The DMC1000 uses digital circuits that operate at high frequencies. When used close to TV
and radio equipment, reception may be affected. If this is the case, simply relocate the
DMC1000, or the affected equipment to a different location.
Ifany of the following should occur, the DMC1000 shouldbe serviced by qualified personnel:
The DMC1000 power cord or plug becomes damaged in any way.
Metal objects or liquids get inside the DMC1000.
The DMC1000 is exposed to rain.
The DMC1000 is dropped and/or the enclosure is damaged.
The DMC1000 does not operate normally or a marked change in performance is noticed.
DMC1000 V3 .0 (1 MM)
