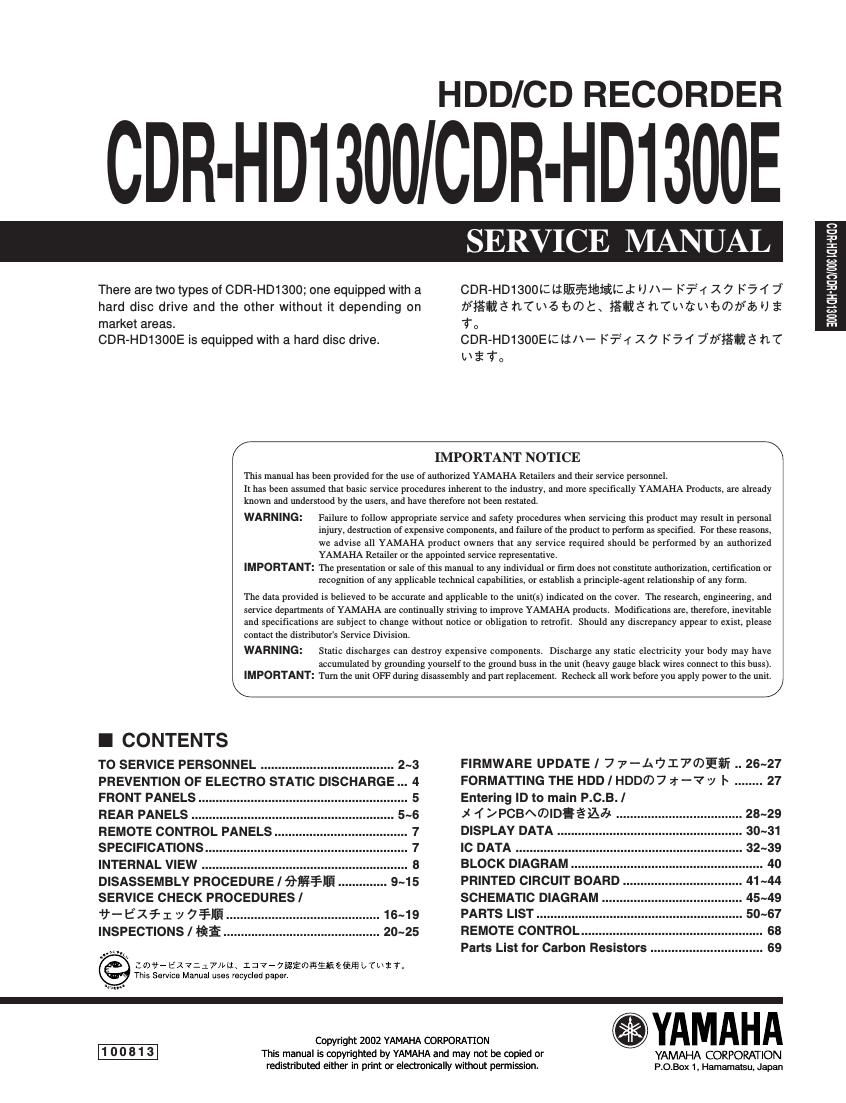

Page 1

CDR-HD1300/CDR-HD1300E 2 CDR-HD1300/CDR-HD1300E WALL OUTLETEQUIPMENT UNDER TESTAC LEAKAGE TESTER OR EQUIVALENT INSULATING TABLE TO SERVICE PERSONNEL 1. Critical Components Information Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only) When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits.  Meter impedance should be equivalent to 1500 ohm shunted by 0.15µF.  Leakage current must not exceed 0.5mA.  Be sure to test for leakage with the AC plug in both polarities. THE COMPACT DISC RECORDER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and /or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA- SON WHATSOEVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. WARNING: Laser Safety This product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit. 1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from the laser pick-up unit at all times. Do not stare at the laser beam at any time. 2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual. 3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser Emitting conditions: 1. This device is a Class IIIb laser device. Class IIIb means With the protective case removed, exposure to the light output from the laser, either directly or reflected by a mirror, can cause harm to the eyes, but there is no danger to the eyes from exposure to dispersed reflected laser light. (Generally 0.5 W or less) 2. Always wear eyeglasses designed for protection against laser light. 3. Always wear gloves. 4. Have no reflective objects anywhere near this device. 5. Figure A shows from where in this device the laser is emitted. 6. When switching on the power to the device for the first time, always measure the laser power with a laser power meter and check that the power is no greater than the number of Watts in the specifications. 7. Never look directly at the laser light while the laser is emitting light. 8. Do not allow the laser light to shine directly on your skin while the laser is emitting light.

Page 2

CDR-HD1300/CDR-HD1300E 3 CDR-HD1300/CDR-HD1300E CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPART PRODUIT LASER DE CLASSE 1 LINE IN - LINE OUT IN OUT DIGITAL REC COAXIAL OPTICAL COAXIAL OPTICAL RS-“232C VIDEO VIDEO OUTS VIDEO ANALOGPLAYRL RL 4 3 CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPART PRODUIT LASER DE CLASSE 1 U model CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPART PRODUIT LASER DE CLASSE 1 LINE IN - LINE OUT IN OUT DIGITAL REC COAXIAL OPTICAL COAXIAL OPTICAL RS-“232C VIDEO VIDEO OUTS VIDEO ANALOGPLAYRL RL 4 3 CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPART PRODUIT LASER DE CLASSE 1 B, G models VARO!: AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NĂ„KYMĂ„TTĂ–MĂ„LLE LASER- SĂ„TEILYLLE. Ă„LĂ„ KATSO SĂ„TEESEEN. VARNING!: OSYNLIG LASERSTRĂ…LNING NĂ„R DENNA DEL Ă„R Ă–PPNAD OCH SPĂ„RREN Ă„R URKOPPLAD. BETRAKTA EJ STRĂ…LEN. Laser Radiation Point Fig. A CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to carefully follow the instructions below when servicing. 1. Laser Diode Properties - Material : GaAlAs - Wavelength : 780-787 nm - Emission Duration : Pulse - Laser Output : Read mode 0.7mW (Continuous) -ś» Write mode max. 38mW -ś» (for 166ns, Min. Cycle 86.6ns) -ś» This output is the value measured at the lens of the Laser Pickup Unit. 2. When checking the laser diode emission, keep your eyes more than 30 cm away from the objective lens.
