Page 1

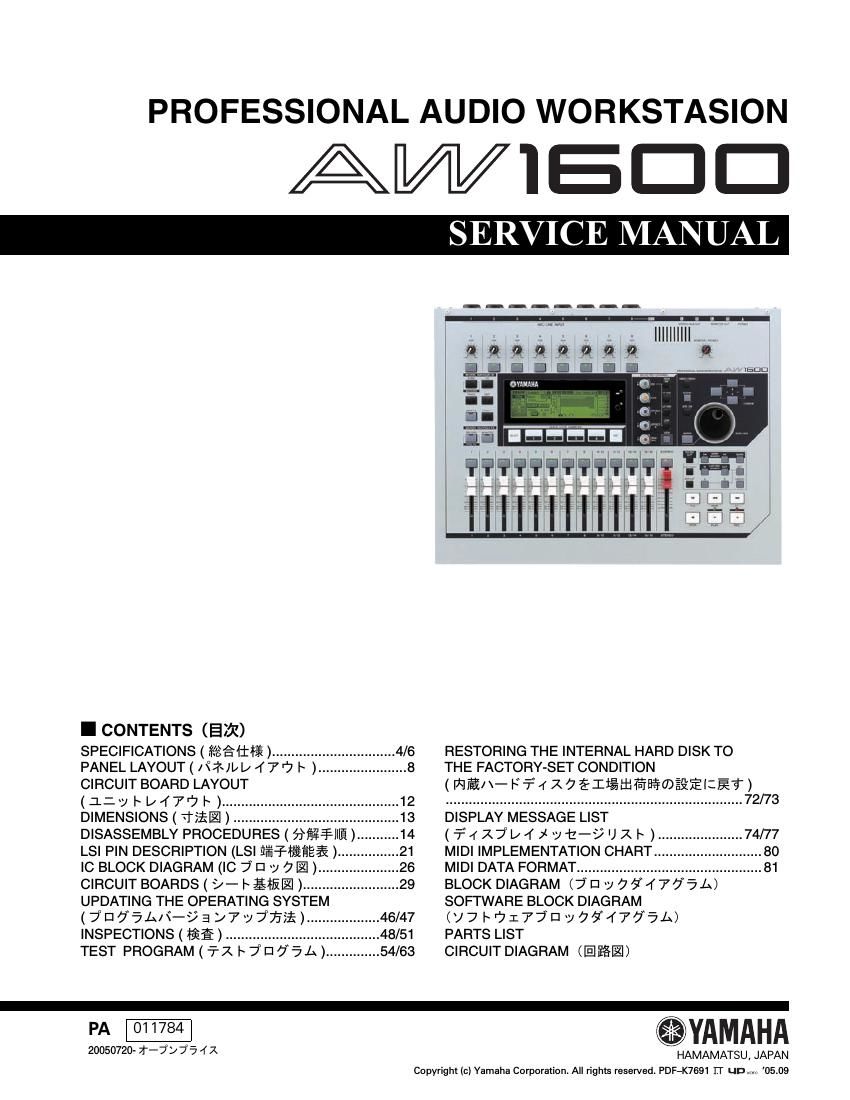

AW1600
2
-WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
印の商品は- 安全 を 維持す る た めに重要な 部品です- 交換す る 場合は- 安全の た めに必ず指定の部品 を - 使- く だ さ い-
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic
service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users, and
have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all
Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed
service representative.
IMPORTANT: This presentation or sale of this manual to any individual or firm does not constitute authorization certification, recognition
of any applicable technical capabilities, or establish a principal-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in
specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributors Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated
by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus).
IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)
components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause
cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO
EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux
vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and Cord
IMPORTANT. The wires in this main lead are coloured in accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the main lead of this apparatus may not correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The BLUE wire must be connected to the terminal that is marked with the letter N (or coloured BLACK).
The BROWN wire must be connected to the terminal that is marked with the letter L (or coloured RED).
Be certain that neither core is connected to the earth terminal of the three pin plug.
Page 2
AW1600
3
-PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
¢^- ¤w貫
¢Twèw-¢£
This product employs Class 1 laser. Labels on laser are-
located on the upper side of the internal CD-RW drive and-
the bottom panel of this product.本製品には ク ラ ス1レ ーザーが使- さ れ て い ま す-レ ーザー に
関す る ラ ベルが内-CD-RWド ラ イ ブ の上部- お よ び本製品の
ボトムパネルにあります-
VARO!
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET
ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ
KATSO SÄTEESEEN.
VARNING!
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
CD-RW drive
(CD-RW Åå Ò ð
Laser properties of the Drive
Laser Class: Class 1 (HHS and IEC 60825-1)
Wavelength: for CD 784 nm
for DVD 662 nm
Do not disassemble the CD-RW drive unit.
WARNING Laser Safety
This product contains a laser beam component. This
component may emit in visible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin
from laser radiation, the following precaution must be used
during servicing of the unit.
1) When testing and / or repairing any component within the
product, keep your eyes and skin more than 30 cm away
from the laser pick-up unit at all time. Do not stare the
laser beam at any time.
2) Do not attempt readjustment, disassemble and repair of
the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION -Use of controls or readjustments or performance
of procedures other than those specified
herein may result in hazardous radiation
exposure.
CD-RW Åå Òwè² -
Q
è²«åµ ç«åµ ø
(HHS and IEC 60825-1)
þ Õ ç 784 nm (CD)
662 nm (DVD)
CD-RW
Åå Ò-
ür`sMpXi^M{/
