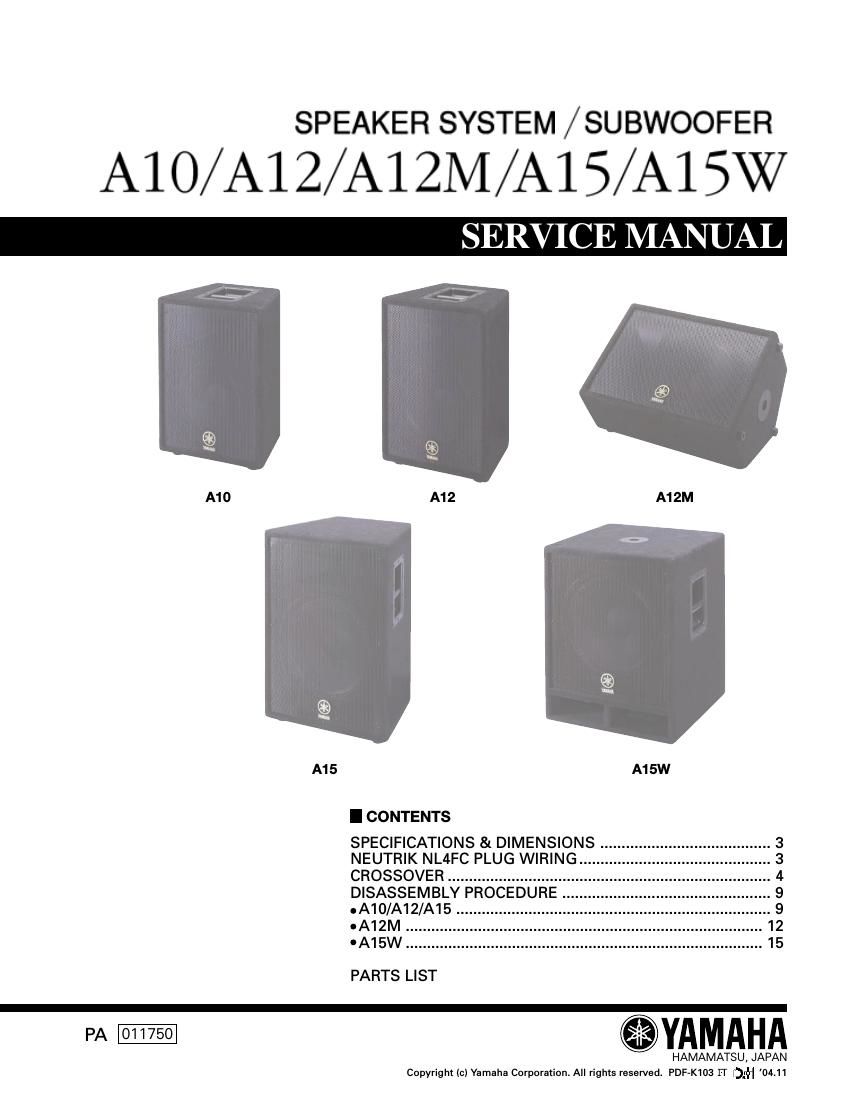

yamaha a 10 a 12 a 15

Extracted text from yamaha a 10 a 12 a 15 (Ocr-read)


Page 1

2 SPEAKER SYSTEM/SUBWOOFER A10/A12/A12M/A15/A15W IMPOR TANT NOTICE This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under- stood by the users, and have therefore not been restated. WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per- sonal injury, destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the appointed service representative. IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi- cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form. The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributors Service Division. WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.) IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit. WARNING: CHEMICAL CONTENT NOTICE! The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm. DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER! Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor! If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food. Protective Circuit (poly switch) All full-range loudspeakers are fitted with a self-resetting poly switch that protects the high-frequency driver from damage caused by excessive power. If a loudspeaker cabinet loses high-frequency output, immediately remove power from the unit and wait for two to three minutes. This should be long enough to allow the poly switch to reset. Reapply power and check the performance of the high- frequency driver before continuing, with the power reduced to a level that does not cause the poly switch to interrupt the signal. (On the subwoofers, the poly switch protects the woofer and a similar routine should be followed if the output is lost.)

Page 2

3 SPEAKER SYSTEM/SUBWOOFER A10/A12/A12M/A15/A15W SPECIFICATIONS & DIMENSIONS *: EIA RS-426 Model A10 A12 A15 A12M A15W Type 2 way Bass reflex Bass reflex Speaker UnitLF 10" cone 12" cone 15" cone 12" cone 15" cone HF 1" VC, Horn-TW - Frequency Response 65 Hz-20 kHz 60 Hz-20 kHz 65 Hz-20 kHz50 Hz-200 Hz with the internal low pass filtering Power CapacityNOISE*125 W 150 W 200 W 150 W 250 W PGM250 W 300 W 400 W 300 W 500 W MAX500 W 600 W 800 W 600 W 1000 W Nominal Impedance 8 Sensitivity 96 dB SPL (1 W, 1 m) 97 dB SPL (1 W, 1 m) 98 dB SPL (1 W, 1 m) 97 dB SPL (1 W, 1 m) 97 dB SPL (1 W, 1 m) Input Connectors 1/4" phone jack x 1, Neutrik SPEAKON NL4MP x 1 1/4" phone jack x 2, Neutrik SPEAKON NL4MP x 2 Socket Mount Diameter 35 mm (1 - 3/8") Dimensions (WxHxD)385 mm x 542 mm x 307 mm405 mm x 582 mm x 323 mm470 mmx 672 mm x 375 mm582 mm x 405 mm x 323 mm485 mm x 622 mm x 485 mm Weight 13.0 kg 15.5 kg 21.5 kg 15.5 kg 28.0 kg H WD 77.5102.5 H WD 120 30 H WD A10/A12/A15 A12M A15W Unit: mm If you will be using the Neutrik connectors for speaker input, wire the plugs as shown to the right. Be sure to use proper speaker cable - NOT shielded instrument or line cable - for all speaker connections. 2-“ (NO USE) 2+ (NO USE) 1+ : HOT(+) 1-“ :COLD (-“) Neutrik NL4FC connector NEUTRIK NL4FC PLUG WIRING
