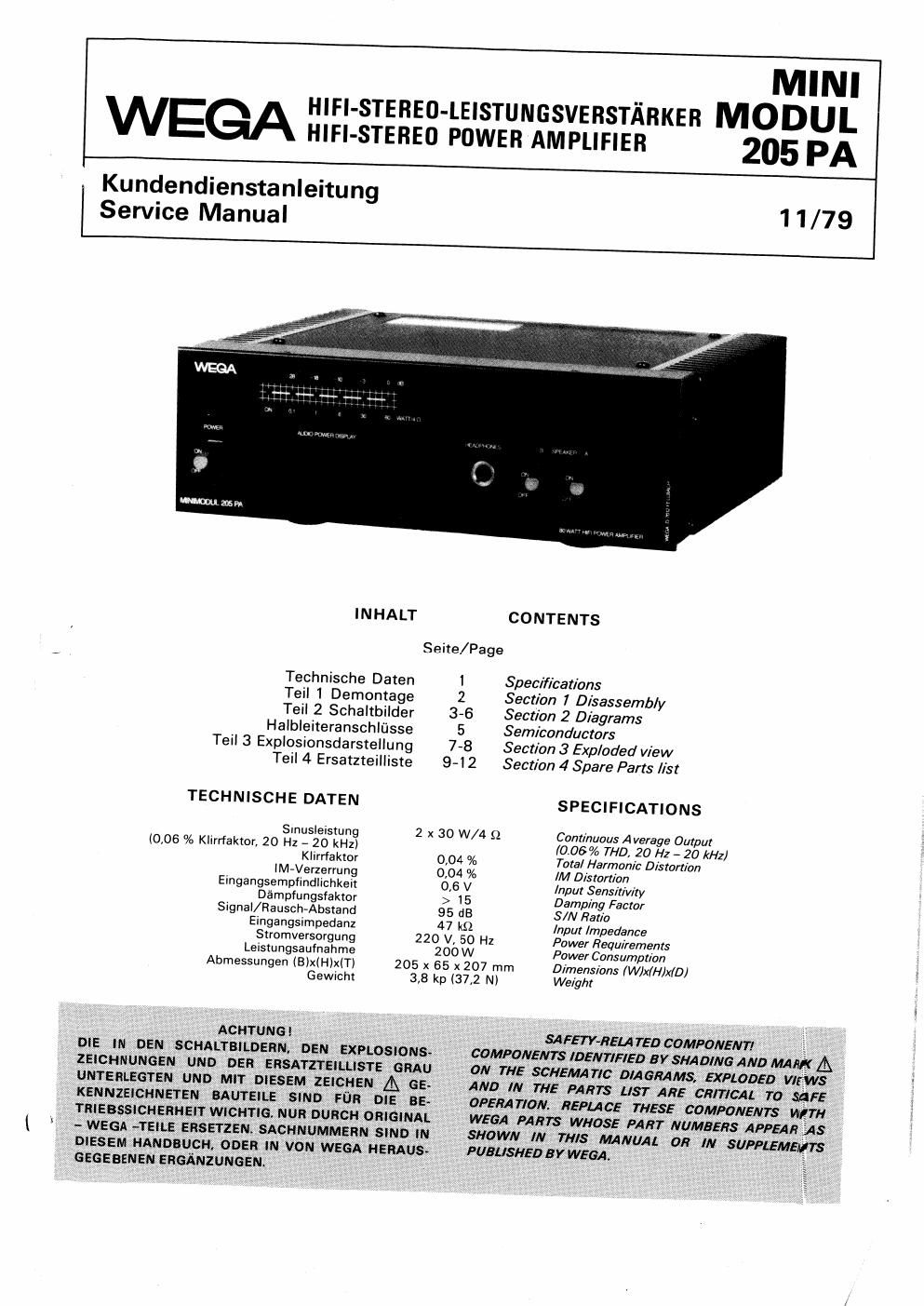

WE HIFl-STERED-LEISTUNGSVERSTIIRKEB MODUL
GA HIFl-STEREO POWER AMPLIFIER 205 pA
Kundendienstanleitung
Service Manual 11/79
«x,- mm at ,
INHALT CONTENTS
Seite/Page
Technische Daten 1 Specifications
Teil 1 Demontage 2 Section I Disassemb/y
Teil 2 Schaltbilder 3-6 Section 2 Diagrams
HalbIeiteranschIUsse 5 Semiconductors
Teil 3 Explosionsdarstellung 7-8 Section 3 Exploded View
Teil 4 Ersatzteilliste 9-1 2 Section 4 Spare Parts list
TECHNISCHE DATEN SPECIFICATIONS
Slnusleistung 2 x 30 W/4 £2 Continuous Average Output
(0,06 % Klirrfaktor, 20 Hz ~ 20 kHz) (0.06% THD, 20 Hz- 20 kHz)
Klirrfaktor 0,04 % Total Harmonic Distortion
IM-Verzerrung 0,04 % IM Distortion
Eingangsempfindlichkeit 0,6 V Input Sensitivity
Dampfungsfaktur > 15 Damping Factor
Signal/Rausch-Abstand 95 dB S/N Ratio
Eingangsimpedanz 47 ksz Input Impedance
Stromversorgung 220 V, 50 Hz Power Requirements
Leistu ngsa ufnahme 200 W Power Consumption
Abmessungen (BIXIHIXIT) 205 x 65 x 207 mm Dimensions (WxiHix/D)
Gewicht 3,8 kp (37,2 NI Weight
