Page 1

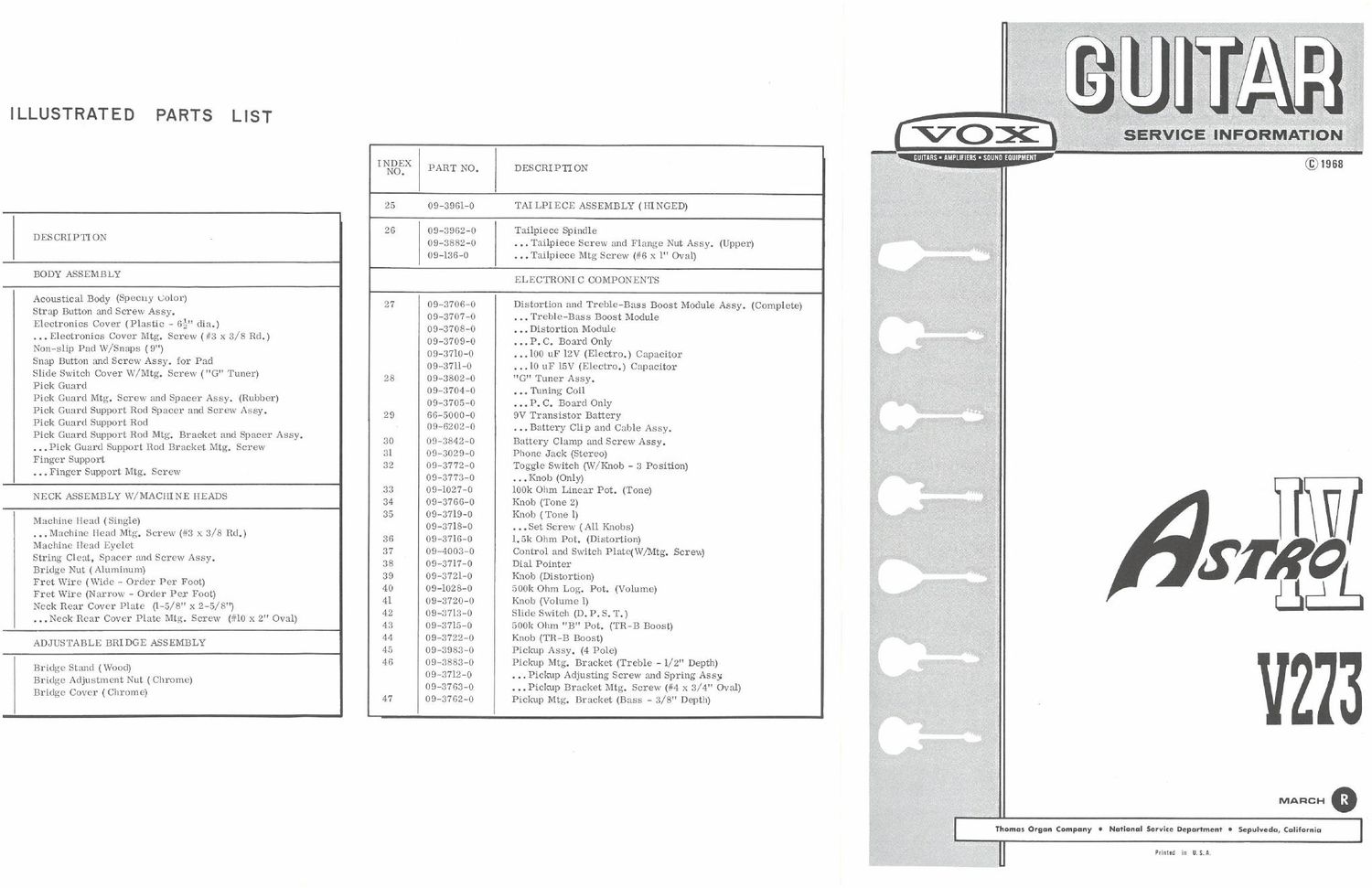

ILLUSTRATED PARTS LIST

DESCRIPTION

BODY ASSEMBLY

Acoustical Body (Specuy uolor)

Strap Button and Screw Assy.

Electronics Cover (Plastic - 6%" din.)

. . . Electronics Cover Mtg. Screw (#3 x 3/8 Rd.)
Non-slip Pad W/Snaps (9")

Snap Button and Screw Assy. for Pad

Slide Switch Cover W/Mtg. Screw ("6" Tuner)
Pick Guard

Pick Guard Mtg. Screw and Spacer Assyi (Rubber)
Pick Guard Support Rod Spacer and Screw Assy.
Pick Guard Support Rod

Pick Guard Support Rod Mtg. Bracket and Spacer Assy.
. . . Pick Guard Support Rod Bracket Mtg. Screw
Finger Support

. . . Finger Support Mtg. Screw

NECK ASSEMBLY W/MACIIINE HEADS

Machine Head (Single)

. .. Machine cud Mtg. Screw (#3 x 3/8 Rd.)

Machine Head Eyelet

String Clout, Spacer and Screw Assy.

Bridge Nut (Aluminum)

Fret Wire (Widc - Order For Foot)

Fret Wire (Narrow - Order Per Foot)

Ncck Rear Cover Plate (1-5/8 x 2-5/8")

. .. Neck Roar Cover Plate Mtg. Screw (#10 x Z" Oval)

ADJUSTABLE BRIDGE ASSEMBLY

Bridge Stand (Wood)
Bridge Adjustment Nut ( Chrome)
Bridge Cover (Chrome)

IND}? PART NO. DESCRIPTION

25 09-3961-0 TAI LPI ECE ASSEMBLY (III NGED)

ZG 09-3962-0 Tailpiece Spindle
09-3882-0 . . . Tnilpieco Screw and Flange Nut Assy. (Upper)
09-136-0 . . . Tailpiece Mtg Screw (#6 x l" Oval)

ELECTRONIC COMPONENTS

27 09-3706-0 Distortion and Treble-Bass Boost Module Assy. (Complete)
09-3707-0 . . . Treble-Bass Boost Module
09-3708-0 . . . Distortion Module
09-3709-0 . . . P. C. Board Only
09-3710-0 . . .100 uF 12V (Eloctro.) Capacitor
09-3711-0 . . .10 uF 15V (Electr0.) Capacitor

28 09-3802-0 "G" Tuner Assy.

09-3704-0 . . . Timing; Coil
09-37054) . . . P. C. Board Only

29 66-5000-0 9V Transistor Battery
09-62024) . . . Battery Clip and Cable Assy.

30 (19-3842-0 Battery Clamp and Screw Assy.

3 09-11029<0 Phone Jack (Stereo)

32 09-3772-0 Toggle Switch (W/Knob - 3 Position)
09-37713-0 . . . Knob (Only)

33 09-1027-0 100k Ohm Linear Pot. (Tone)

34 09-3766-0 Knob (Tone 2)

35 09-3719-0 Knob (Tone 1)

09-3718-0 . . . Set Screw (All Knobs)

36 09-3716-0 1.5k Ohm Pot. (Distortion)

37 09-4003-0 Control and Switch P1atc(\V/Mtg. Sore)

38 ()9-3717-0 Dial Pointer

39 09-25721-0 Knob (Distortion)

40 09-1028-0 500k Ohm Log. Pot. (Volume)

41 09-3720-0 Knob (Volume 1)

42 09-3713-0 Slide Switch (D. P.S. T.)

43 09-13715-0 500k Ohm "B" Pot. (TR-B Boost)

44 09-3722-0 Knob (TR-B Boost)

45 09-:3983-0 Pickup Assy. (4 Pole)

46 09-3883-0 Pickup Mtu'. Bracket (Treble - 1/2" Depth)
09-3712-0 . . . Pickup Adjusting Screw and Spring Assy
09-3763~0 . ..Pickup Bracket Mtg. Screw (#4 x 3/4" Oval)

47 09-3762-0 Pickup Mtg. Bracket (Bass - 3/8" Depth)

L SERVICE INFORMATiON

VOX

GUITARS AMPLIHERS SDUNn EQUIPMENI
@1958

MARCH 0

"llamas Organ Company . National Service Department . Sepulvedu, California

Plinllfl in 1|.SA

Page 2

38-565! -0
