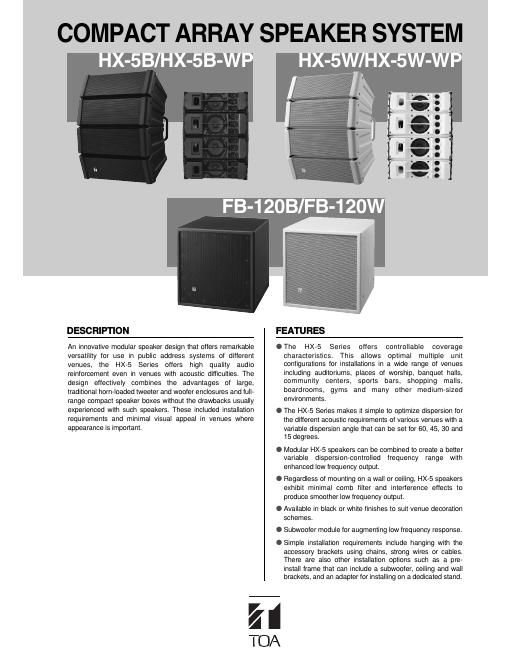

HX-5B/HX-5B-WP/HX-5W/HX-5W-WP FEATURES Design background The HX-5 is an innovative modular speaker design that incorporates the best characteristics of the traditional, cumbersome woofer enclosure combined with a CD horn-loaded high frequency driver and the full-range compact speaker enclosure without the drawbacks associated with each type. The traditional speaker system was able to provide well- controlled sound coverage but posed various difficulties for correct installation and also presented an old- fashioned appearance as well that impacts on the venue's appearance. The full-range compact speaker enclosure is easy to install, but the design's sound coverage is hard to control. The HX-5 features remarkably easy to control coverage characteristics including problematic low frequencies and can be installed in a multitude of ways while maintaining a modern, unobstrusive appearance. Adjustable sound dispersion A system is configured by vertically stacking four speaker modules with a total driver complement of four woofers and 12 tweeters positioned along the baffle surface. This configuration allows the variable directivity control and low-frequency dispersion control comparable to using a large constant-directivity horn speaker. A choice of four directivity angles - 15, 30, 45 and 60 degrees can be employed as needed. For instance, a specific directivity angle, or each module can have its directivity independently set for a specific coverage requirement. When two or multiple modules are connected to configure an arc, they effectively function as an immense single speaker controlling directivity for considerably lower frequencies. As a result, public address functions demonstrate optimal intelligibility even in environments with long reverb times. Minimal reflective effects Whether mounted on the wall or ceiling, the HX-5 is remarkably free from the comb filter and interference effects often encountered with other speaker designs. It can therefore produce more low frequency output even when mounted on the wall or ceiling. Versatile mounting options Compared to many other speaker designs, the HX-5 Series is remarkably easy to install in several ways. It can be hung easily with chains, strong wires and cables using the accessory brackets. There are also options for hanging with a pre-install frame by itself or configured with a subwoofer. There are also other options including ceiling and wall brackets as well as an adapter for use with a dedicated stand. Four Stages Angle of beam spread When you arrange the pluralIn multiple unit configurations, the HX-5 will be able to deliver greater low frequency output over its angle of dispersion. 15°, 30°, 45°, 60° 400Hz -“ 800Hz -“ CD horn HX-5 Large-scale CD horn Directivity changeable speaker

Page 2

HX-5B/HX-5B-WP/HX-5W/HX-5W-WP FREQUENCY RESPONSE 60 degree mode 45 degree mode 30 degree mode 15 degree modeEach 60 degree mode (× 2) Each 45 degree mode (× 2) Each 30 degree mode (× 2) Each 15 degree mode (× 2) 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 60 degree mode 45 degree mode 30 degree mode 15 degree modeEach 60 degree mode (× 2) Each 45 degree mode (× 2) Each 30 degree mode (× 2) Each 15 degree mode (× 2) 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL 110 [dB] 100 90 80 70 60 50 20 50 100 500 Frequency1k 5k 10k 20k [Hz] SPL HX-5B/HX-5W HX-5B-WP/HX-5W-WP Single Unit: 8-„¦ (1W/1m) Connected Two Units; 4-„¦ (1W/1m) Single Unit: 8-„¦ (1W/1m) Connected Two Units: 4-„¦ (1W/1m)
