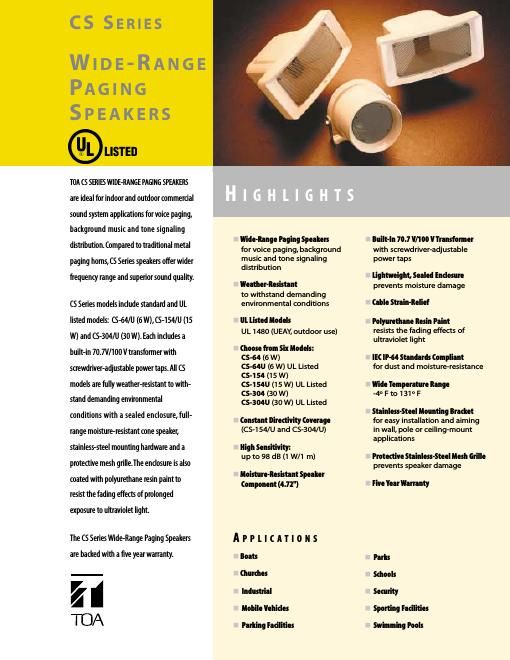

CS SERIES WIDE-RANGE PAGING SPEAKERS
Tel: 800-733-7088
Fax: 800-733-9766
www.toaelectronics.com
S PECIFICATIONS
Enclosure Type Wide-Range Paging Speaker
Dispersion CS-64/U: Exponential CS-154/U/304/U: Constant Directivity
Speaker Component Cone-Type Dynamic Speaker, 4.72" (12 cm)(Treated For Weather-Resistance)
Power Handling CS-64/U: 6 W CS-154/U: 15 W CS-304/U: 30 W
Transformer Taps / CS-64/U: 70.7 V: 6 W (830 -„¦), 3 W (1.7 k-„¦), Rated Impedance 1.5 W (3.3 k-„¦), 0.5 W (10 k-„¦)
100 V: 6 W (1.7 k-„¦), 3 W (3.3 k-„¦),
1 W (10 k-„¦)
CS-154/U: 70.7 V: 15 W (330 -„¦), 7.5 W (670 -„¦),
2.5 W (2 k-„¦)
100 V: 15 W (670 -„¦), 10 W (1 k-„¦),
5 W (2 k-„¦)
CS-304/U: 70.7 V: 30 W (170 -„¦), 15 W (330 -„¦),
10 W (500 -„¦), 5 W (1 k-„¦)
100 V: 30 W (330 -„¦), 20 W (500 -„¦),
10 W (1 k-„¦)
Sensitivity CS-64/U: 96 dB (Sound Pressure Level) CS-154/U: 97 dB (1 W / 1 m) CS-304/U: 98 dB
Frequency Response CS-64/U: 130 Hz - 13 kHz CS-154/U: 150 Hz - 15 kHz CS-304/U: 120 Hz - 15 kHz
Dispersion CS-64/U: 100º H x 100º V
(-6 dB, 2 kHz) CS-154/U: 110º H x 85º V CS-304/U: 100º H x 85º V
UL Listed Category UL 1480 (UEAY, outdoor use)
IEC IP Code IP-64
Temperature Range -4° F to +131° F (-20° C to +55° C)
Material/Finish Enclosure:Fire-Resistant ABS Resin, Polyurethane Resin
Paint, Off-White
CS-64/U Net:Punched, Surface Treated Steel Plate,
Dark Gray Powder Coating
CS-154/U/304/U Net:Aluminum, Gray PaintBracket/Screws:
Stainless Steel
Dimensions CS-64/U: 9.17" x 8.82" x 8.19"
(W x H x D) (233 mm x 224 mm x 208 mm)
CS-154/U/304/U:
14.40" x 9.06" x 10.71" (366 mm x 230 mm x 272 mm)
Weight CS-64/U: 3.31 lbs. (1.5 kg) CS-154/U: 6.17 lbs. (2.8 kg)
CS-304/U: 6.83 lbs. (3.1 kg)
2.01 2.01
Black (+) White (-)
3- θ 0.43
6.75 10.71 14.41
6.779.06
1.46
9.2910.12
23.62
5.67
Front View Side View
Bottom View UNIT: inches
θ 0.51 2- θ 0.43White (-) Black (+)
5.75 8.19
θ 6.61 θ 6.77
9.17
4.78
8.82
2.01 2.018.31
1.38
23.62
Bottom View
Side View Front View
UNIT: inches
D IMENSIONAL D RAWINGS
CS-64/U
CS-154/ U/CS-304/U
