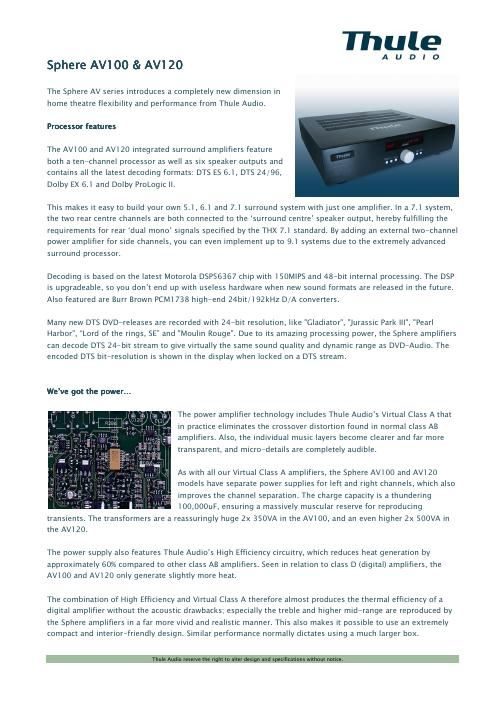

Page 1
Thule Audio reserve the right to alter design and specifications without notice.
High End sound characteristics
High End sound characteristicsHigh End sound characteristics High End sound characteristics
The AV100/120 is also a high-end integrated amplifier. By using the Pure Audio input, all analogue signals
bypass the DSP directly to the volume control for a short untainted signal path. It has a 6-channel Pure Audio
input e.g. for connection to an SACD or DVD-Audio player.
Easy usability is ensured through the enclosed standard remote control or the new optional intelligent multi-
unit remote controller RC250. AV100 and AV120 can also be integrated into a home automation system via its
RS232 connection. They also have Zone 2 outputs, which can control audio equipment in other rooms.
AV100S & AV120S with video switching
AV100S & AV120S with video switchingAV100S & AV120S with video switching AV100S & AV120S with video switching
The AV100S and AV120S are further equipped with
the new video switching board V350. V350 offers
progressive video pass-through and can switch and
upconvert composite and S-video signals into RGB or
component video, meaning just one single video-
cable is required to connect everything to your TV or
projector. Due to the highly advanced digital
separation filters in V350, you will typically obtain S-
video quality from your composite source, even from
a normal TV signal.
Please also see the product information for V350.
Technical Specifications
Technical SpecificationsTechnical Specifications Technical Specifications
AV100
AV100AV100 AV100
AV100 S
AV100 SAV100 S AV100 S
AV120
AV120AV120 AV120
AV120S
AV120SAV120S AV120S
Power output, 20-20kHz, 8 ohm 6x 100W 6x 100W 6x 120W 6x 120W
Power output, 20-20kHz, 4 ohm 6x 150W 6x 150W 6x 180W 6x 180W
Frequency range, +0/-1dB 10-40kHz 10-40kHz 10-40kHz 10-40kHz
THD 20-20kHz, -10dB, 8 ohms 0.005% 0.005% 0.005% 0.005%
Dynamic Range, 24bit, 0dB vol 115dBA 115dBA 115dBA 115dBA
Analogue stereo inputs for DSP 4x RCA phono 4x RCA phono 4x RCA phono 4x RCA phono
Digital inputs for DSP, 32-96kHz 4x Coax/2x Opto 4x Coax/2x Opto 4x Coax/2x Opto 4x Coax/2x Opto
Pure Audio input 1x 5.1 1x 5.1 1x 5.1 1x 5.1
Processor pre-out 10ch RCA phono 10ch RCA phono 10ch RCA phono 10ch RCA phono
Zone 2 output 2ch RCA phono 2ch RCA phono 2ch RCA phono 2ch RCA phono
Speaker outputs 6 ch screw term. 6 ch screw term. 6 ch screw term. 6 ch screw term.
Pre-out -> speaker gain 27dB 27dB 27dB 27dB
Composite video, 75 ohms n/a 4 input/1 out n/a 4 input/ 1 out
S-Video, 75ohms n/a 6 input/2 out n/a 6 input/ 2out
Component video, 75ohms n/a 2 input/1 out *
** * n/a input/ 1out *
** *
Dimensions (W x H x D) 420x90x370mm 420x90x370mm 420x90x370mm 420x90x370mm
Weight 16kg 16kg 19kg 19kg
*
** *also configurable as RGB out with embedded sync or separate composite sync.
