THUhENS S.A.
bte-Croix/VD TD 224 No 1
Switzerland

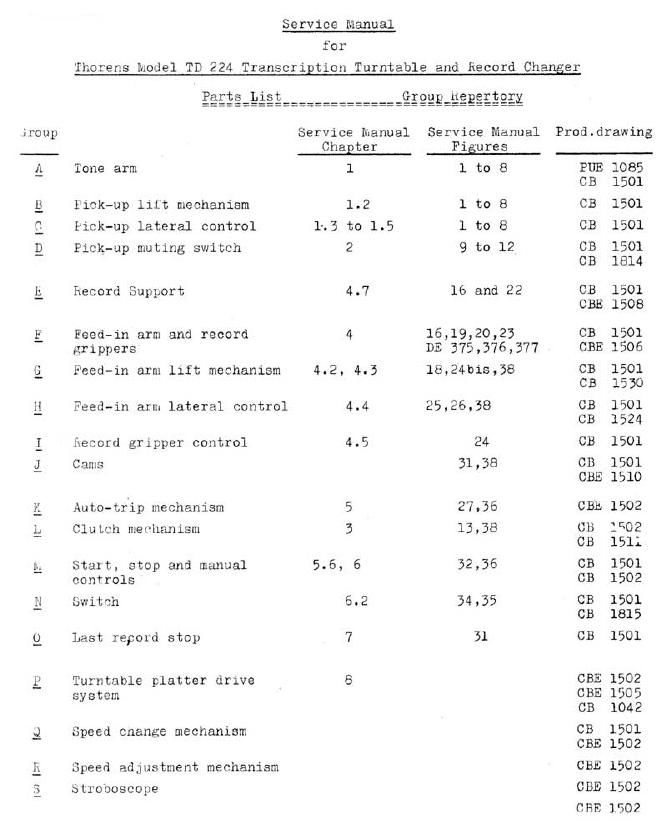

Service Manual
for
Thorens Model TDb224 Transcription Turntable and Record Changer
l;_Ieae-e£a.sdia§iaeai
1.1. Pick-up height
Normal adjustment: This adjustment may be checked when the turn-
table is "off" in the normal last record stOp position:
- lift the turntable platter rubber cover slightly from the rim
(see Fig. 4).
- bring the pick-up near the edge of the platter with the needle
tip outside,
- verify that the lower end of the lateral abutment of the plug-in
head is from 1/32" to 1/16" (1 and 2 mm) above the platter sur-
face (Distance h),
- check that the stylus is protruding between 3/32" and 7/32"
(2 and 5 mm) out of the shell. (See "Cartridge installation" in-
structions on page 13 and 14 of Instruction Manual).
New adjustment: turn screw PU 1007 (see Fig. 5);
- clockwise to increase pick-up height
- counterclockwise to decrease pick-up height
Notice. When the pick-up is playing a record, normal distance be-
tween the head of screw PU 1007 and abutment PU 1021 is about 1/8"
(3 mm) and the arm lifting ear PU 942 should be approximately in
the middle.
1.2. Pick-up lift
Symptom: Failure of pick-up arm to lift out of rest position during
automatic operation.
Normal adjustment: The tone arm should be lifted by about 1/16"
(1 mm) above the arm rest post.
§§E§§.EPL.LE Improper adjustment of pick-up height
Remedy. See 1.1. above
gagsg_flp;_§5 Clearance between arm lifting lever CB 1065 (see
Fig. 6) and extremity D of lifting spindle PU 1019 is excessive
when the unit is in the normal stop position.
Normal clearance: For units with serial number above 1500
this clearance, as checked with a wedge 0, should be 1/16" (1.3 +
