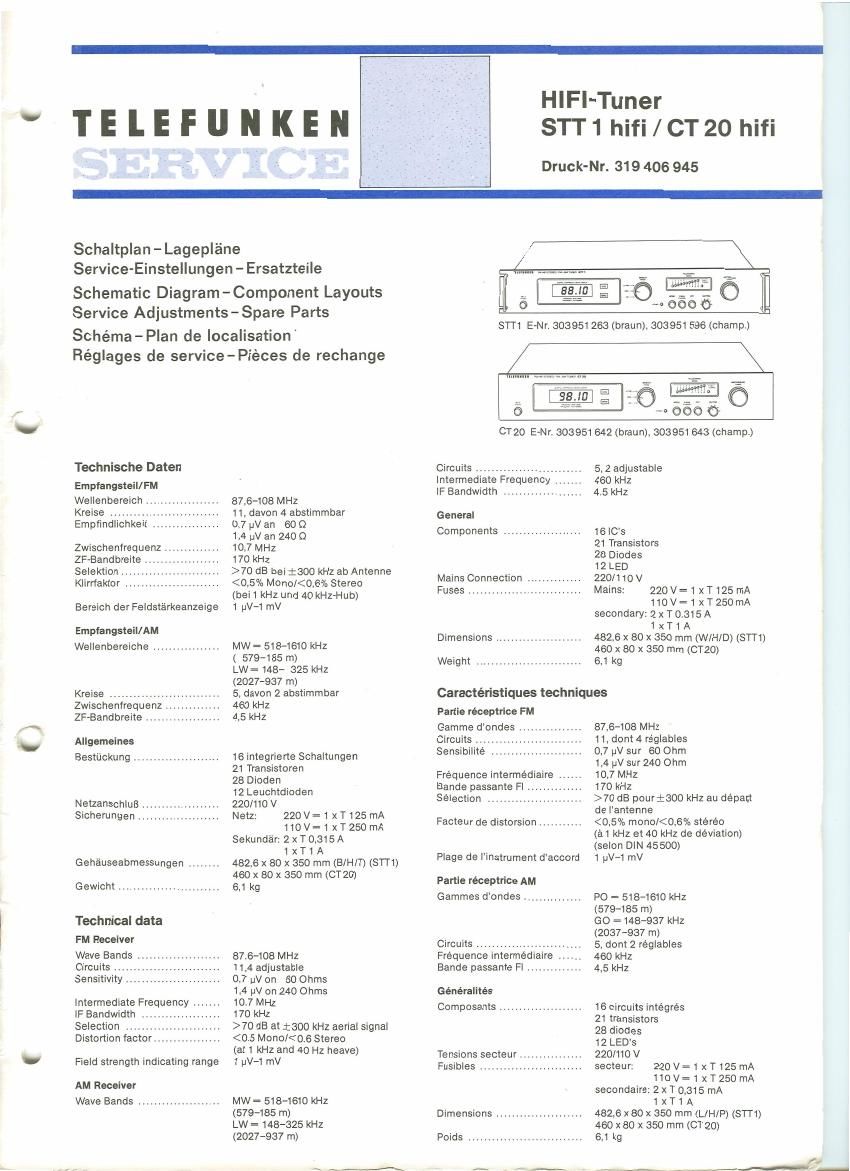

This is the 22 pages manual for Telefunken STT1 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Position 2" Bate Bezeichnung ltem Descripkion
1. Nr.
Mechanische Teile Mechanical parts Pieces mécaniques
525 N 309 926 808 Spannrolle fLirSeil lension rollerfor cord galet tendeur pour cordon
526 H 309 981 802 Feder fiJr Spannrolle tension roller for spring ressort pour galet tendeur
527 C 309 926 983 Seiischeibe cord disc rouleau cordon
528 K 309 928 904 Kupplung clutch embrayarge
529 K' 309 870 925 Skalensell dial cord cordon cadran
530 309 943 020 Amriebsachse drive shaft arbre d'enlrainemenl
531 G 309 927 909 Schwungrad flywheel volant
532 K 309 900 295 Diodenhalter.1-facn diode hoider support de diode
533 N" 309 653 501 Sicherungsnalter fuse holder ports-fusible
534 309 928 904 Kupplung clutch . embrayage
535 509 943 022 Achse fijr Bereich shaft for range arbre pour gammes
Anderungen vorbehalten
Subject to modifications
Modifications reserves
Printed in :he Federal Republic of Germany
UV 83/8004
22
TELEFUNKEN
Fernseh und Rundfunk GmbH
Dokumeniation
TillystraBe 25
3000 Hannover 91
W. GERMANY
