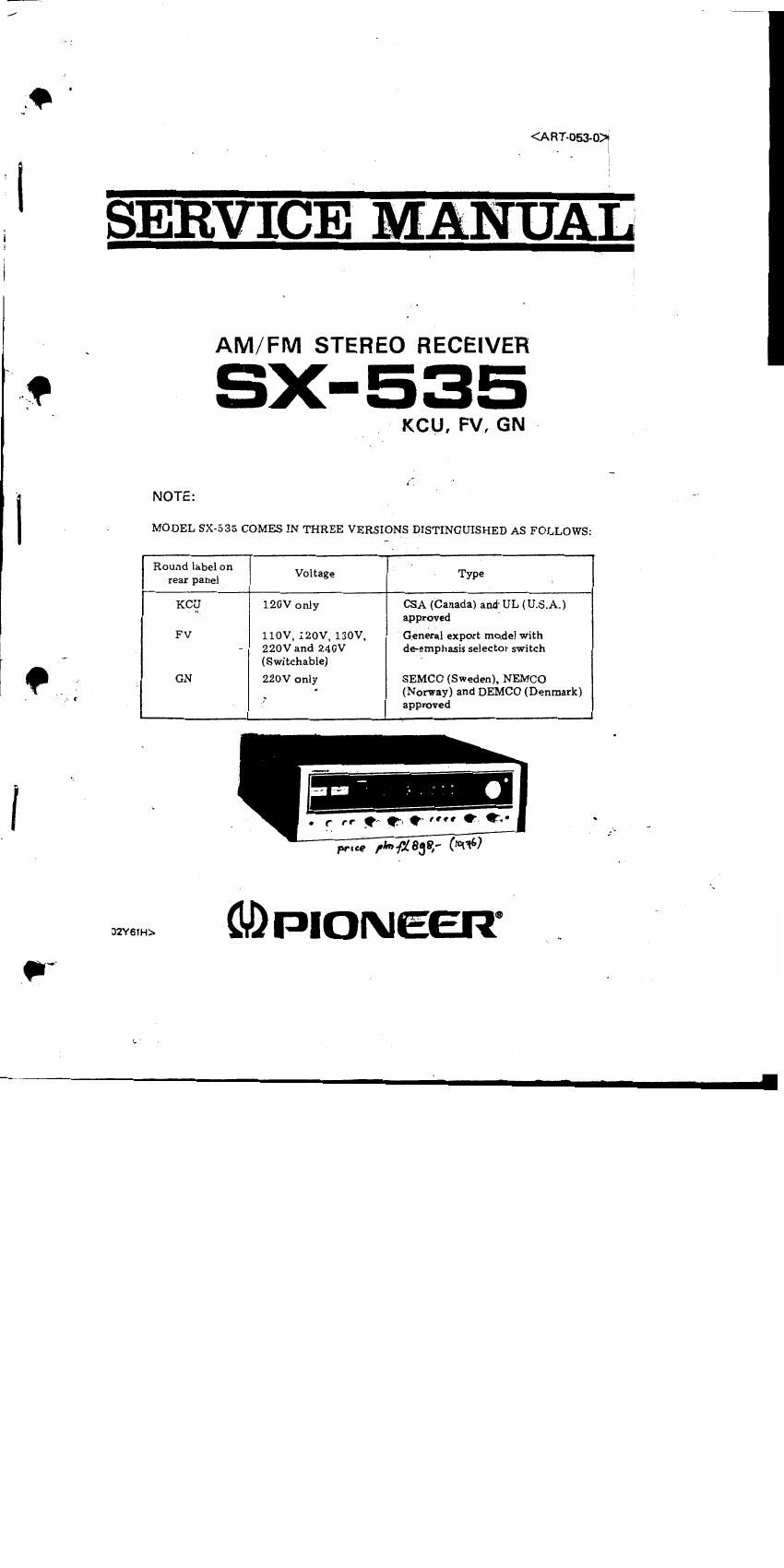

F
AM/FM STEREO RECEIVER
SEX-535
NOTE:
KCU, FV. GN
MODEL SX535 COMES IN THREE VERSIONS DISTINGUISHED AS FOLLOWS:
Round label on
rear panel Voltage Type
KCEJ 1 20V only USA (Canada) and UL (U.S.A)
approved V
FV 110V, 120V, 130V, Genénl export mode! with
220V and 240V deemphasis selector switch
(Switchable)
GN 220V only SEMCO (Sweden), NEMCO
_ (Norway) and DEMCO (Denmark)
approved
price ,hflasg- (was)
GDPIONEER ,w
SX-SSE
AM Section
1_ Switch positions on the sx-sas:
FUNCTION ................ AM 7;
POWER .................. ON
1 Connection of instruments: ,
AM Signal Generator(AM SG) . . Connect to AM ANTENNA tenni-
nals in series with dummy antenna
(lkfl resistor).
AC Voltmeter .............. Connect to TAPE REC jack.
Set AM SG to 30% modulation at 400K: and 30dB output.
4. Tune AM SG and SX-535 cg dial readings of SOOkHz and adjust T6 to
maximize audio frequency mtput level. (Adjust core of ferrite loopstick
antenna at the same time.)
Tune AM SG and SX-535 ta dial readings of 1,400kHz and adjust T04
and TC5 to maximize audio [requency output level.
I Repeat steps 4 and 5 so thatoutput is maximized when the dial indicates
these frequencies.
9
p
' @W
m @ J
JDWE gm L
:1 u o n ®
Tuner Assembly (AWE-046)
