Technics SUZ 400 Schematics

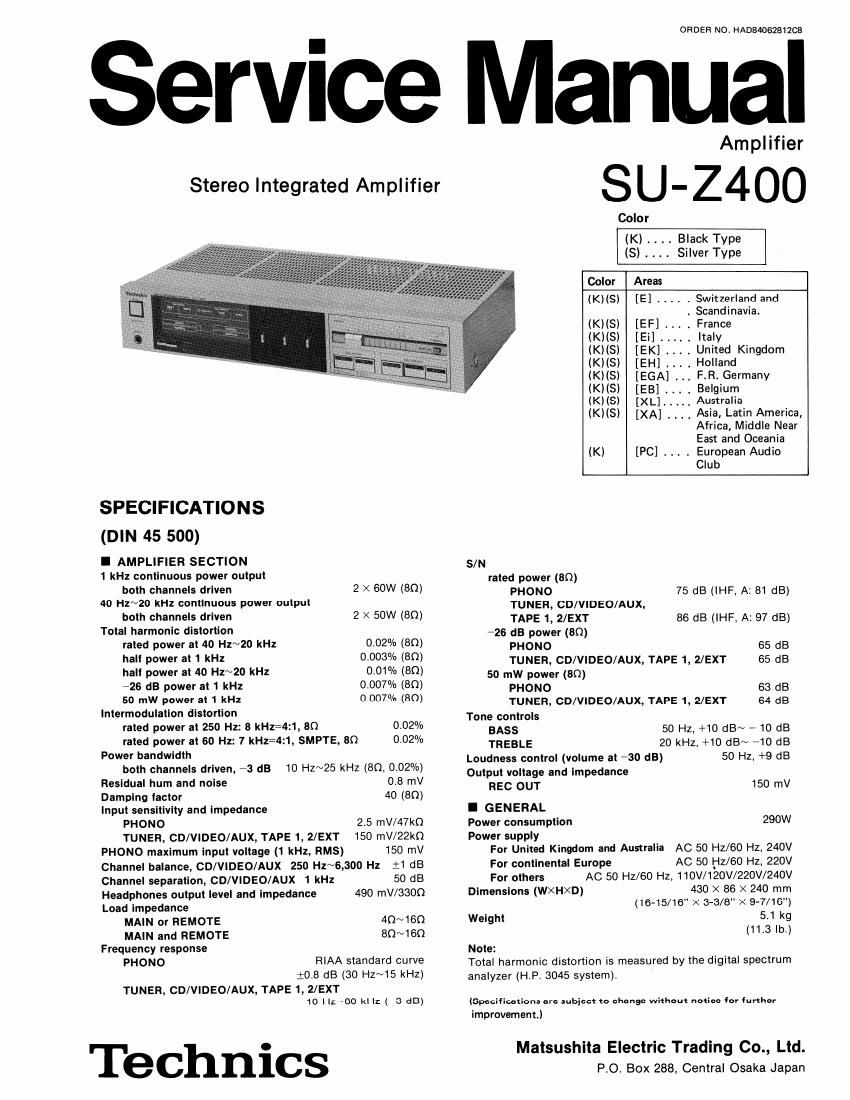

This is the 14 pages manual for Technics SUZ 400 Schematics.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 14
left right
Technics SUZ 400 Schematics

Extracted text from Technics SUZ 400 Schematics (Ocr-read)


Page 2

T T

I CON EN S Page Page
SAFETV PRECAUTION ........................... 2 DESCRIPTION OF MUTING/RELAY DRIVE IO -------- 10
LOCATION OF CONTROLS . 3' 4 BLOCK DIAGRAM ..................... . .
PROTECTION CIRCUITRV ............ . . 4 CHANGE IN POWER SUPPLY . .
BEFORE REPAIR AND ADJUSTMENT ............ . . .4 SCHEMATIC DIAGRAM .......
SELECTING THE CORRECT SPEAKER IMPEDANCE . . . 4 RESISTORS St CAPACITORS . . .
DISASSEMBLY INSTRUCTIONS ..................... 5. 5 REPLACEMENT PARTS LIST ...... . . . . .
TERMINAL GUIDE OF TRANSISTORS, DIODES AND IC'S . . s EXPLODED VIEWS ........................... 19

CIRCUIT BOARDS AND WIRING CONNECTION DIAGRAM . 7 ~9

I SAFETY PRECAUTION

Before servicing, unplug the power cord to prevent an electric shock.

When replacing parts, use only manufacturer's recommended components for safety.

Check the condition of the power cord. Replace if wear or damage is evident.

After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to
prevent the customer from being exposed to a shock hazard.

FTPWNT

o INSULATION RESISTANCE TEST

1, Unplug the power cord and-short the two prongs of the plug with a jumper wire.

2, Turn on the power switch.

3. Measure the resistance value with ohmmeter between the jumpered AC plug and each exposed metal cabinet part, such as
screwheads antenna, control shafts, handle brackets, etc. Equipment with antenna terminals should read between 3M9
and 5.2MQ to all exposed parts. (Fig. A) Equipment without antenna terminals should read approximately infinity to
all exposed parts. (Fig. B)

Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

Antenna
terminal \.

Exposed Exposed
metal metal
part part
Ohmmeter Ohmmeter
(Fig.Ai (Fig. B)
Resistance=3MQ-5.2MQ Resistance=Appvox oo

4. if the measurement is outside the specified limits, there is a possibility of a shock hazard. The equipment should be
repaired and rechecked before it is returned to the customer.
