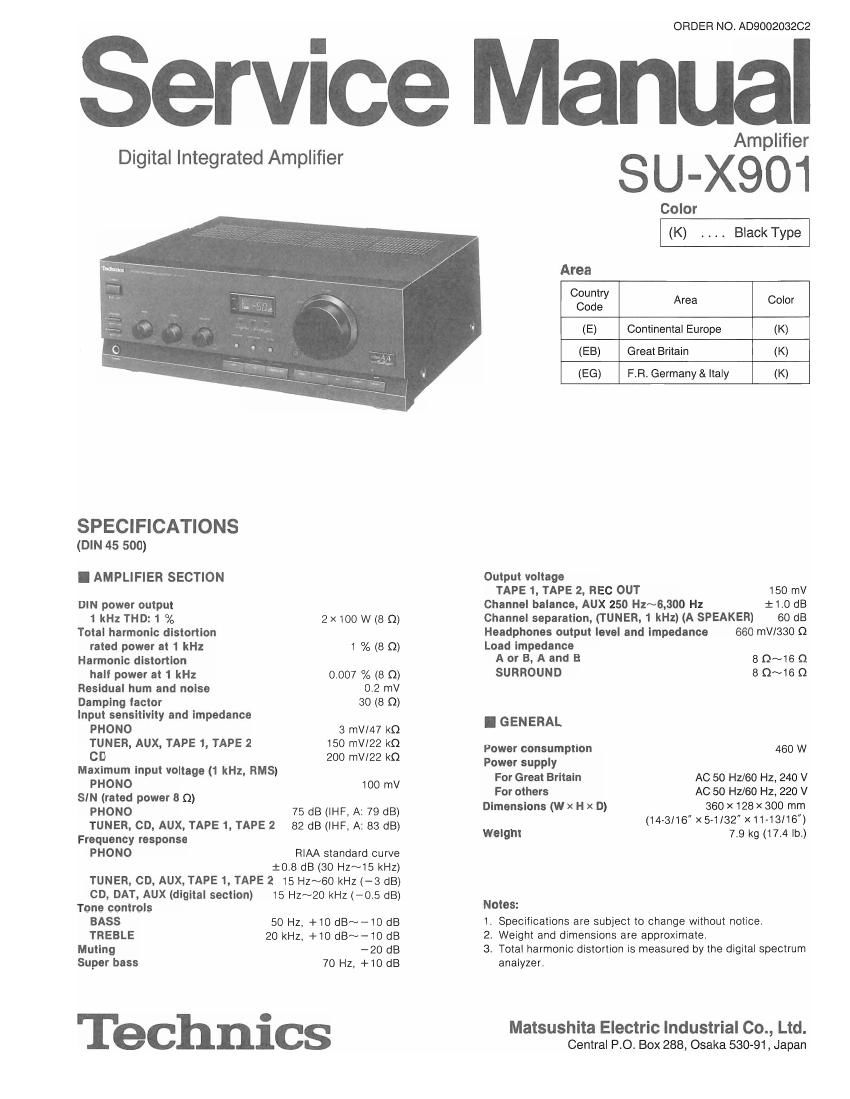

Technics SUX 901 Service Manual

This is the 28 pages manual for Technics SUX 901 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 28
left right
Technics SUX 901 Service Manual

Extracted text from Technics SUX 901 Service Manual (Ocr-read)


Page 2

I CONTENTS


Page Page
BEFORE REPAIR ..................................... 2 PRINTED CIRCUIT BOARDS ........................ 23~26
PROTECTION CIRCUITRY 2 TERMINAL GUIDE OF ICS,
ACCESSORY ............. 2 TRANSISTORS AND DIODES . . . .
LOCATION OF CONTROLS . 3 WIRING CONNECTION DIAGRAM
CONNECTIONS 6 BLOCK DIAGRAM
DIGITALIZATION OF AUDIO SIGNALS 7 DESCRIPTION OF FL PANEL . . ..

DISASSEMBLY INSTRUCTIONS .........
MEASUREMENTS AND ADJUSTMENTS .
SCHEMATIC DIAGRAM ...................

FUNCTIONS OF IC TERMINALS
REPLACEMENT PARTS LIST
EXPLODED VIEW

I BEFORE REPAIR

(1)Turn off the power supply. Using a 100, SW resistor connect both ends of power supply
capacitors (C71 1, C712, 6800 uF) in order to discharge the voltage.

(2)Betore turning the power supply on , after completion of repair , slowly apply the primary voltage by using

a power supply voltage controller to make sure that the consumed current at 50Hz/60Hz in NO SIGNAL mode
should be shown below with respect to supply voltage 220V/240V.

Power supply voltage ACZZOV ACZ40V
Consumed current 50Hz 200~500 mA 180~450 mA
Consumed current 60H2 200~500 mA 180N450 mA

I PROTECTION CIRCUITRY

The protection circuitry may have operated it either of the lollowing conditions is noticed:

* No sound is heard when the power is switched ON.

* Sound stops during a performance.

The Iunction of this circuitry is to prevent circuitry damage it. for example, the positive and negative speaker
connection wires are shorted" , or it speaker systems with an impedance less than the indicated rated
impedance of this unit are used.

It this occurs, tollow the procedure outlined below:

1.Switch OFF the power.
2.Determine the cause of the problem and correct it.
3.Switch ON the power once again.

Note:

When the protection circuitrytunctions, the unit will not operate unless the power is first switched OFF and then
ON again.

I ACCESSORY

IAC power supply cord ....................................... 1
Configuration 0! AC power supply cord dilters according to
area.

SJA188 .......... For (EB) area only.
SFDA005E03 . . . .For others.
