Technics SUVZ 220 Owners Manual

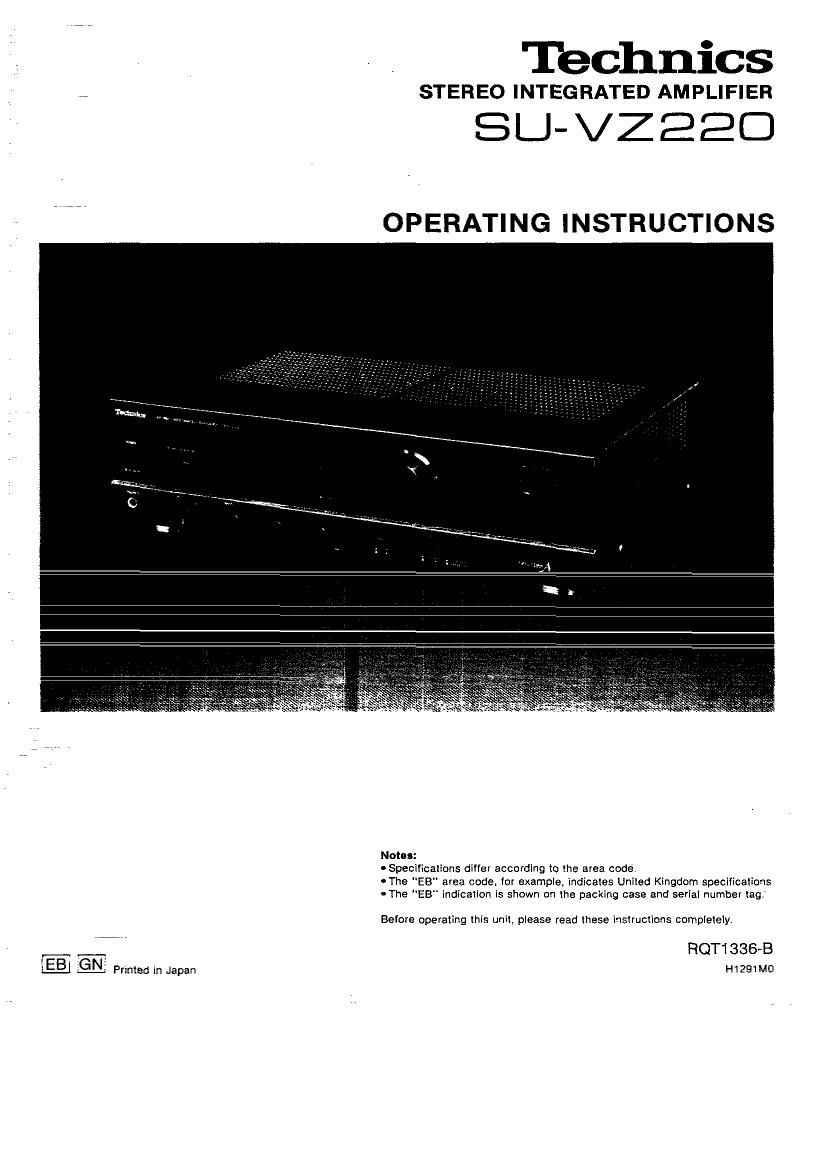

Page 1

'Ibchnics

,, STEREO INTEGRATED AMPLIFIER

SLJ-V7r39

OPERATING INSTRUCTIONS

Notes:

Speciiicalions differ according to the area code

-The "E8" area code. for example, indicales United Kingdom specificalions
-The EB" indication is shown on lhe packing case and serial number lag:

Beiore operating this unil: please read lhese instructions completely.

'_q ____I RQT1336-B
'IEBJ % Prrnted in Japan H1291M0

Page 2

We want to thank you for selecting this product and from this new addition to your home.

to welcome you to the growing tamily ot satisfied Please read these operating instructions caretuliy.
Technics product owners around the world. and be sure to keep them handy for convenient
We feel certain you will get maximum enjoyment reference.

Contents

- Accessory ............................... 2 - Technical Specifications ................. 9
0 For United Kingdom. . , . 2 - Protection Clrcultry ...................... 9
- Connections ............................. 3 0 Maintenance ............................
0 Front Panel Controls and Functions . . 5 - Suggestlons for Safety .....
' Listening to the Sound .............. . . 8 0 Troubleshooting GuIde. .
' Recording ............................... B

CAUTION:

The AC voltage is dllterent according to the area.
Be sure to set the proper voltage in your area betore use.
(For details, please reter to the page 4.)

Accessory

- AC power supply cord ............................... 1

Configuration oi the AC power supply cord ditiers according to
area.

For United Kingdom ....,...................,

The EB" indication is shown on the serial number tag. M the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug proceed as Iollows. The wire which is co?
oured BLUE must be connected to the terminal MI'Ch is marked

Important with the letter N or coloured BLACK.

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN AOOOR- The wire which is coloured BROWN must be connected to the ter-
DANCE WITH THE FOLLOWING CODE. mlnal whiC-h is marked with the letter L or coioured RED.
BLUE: NEUTRAL Under no circumstances must either at the above wires be con

BROWN' LIVE nected to the earth terminal el a three pin plug,
