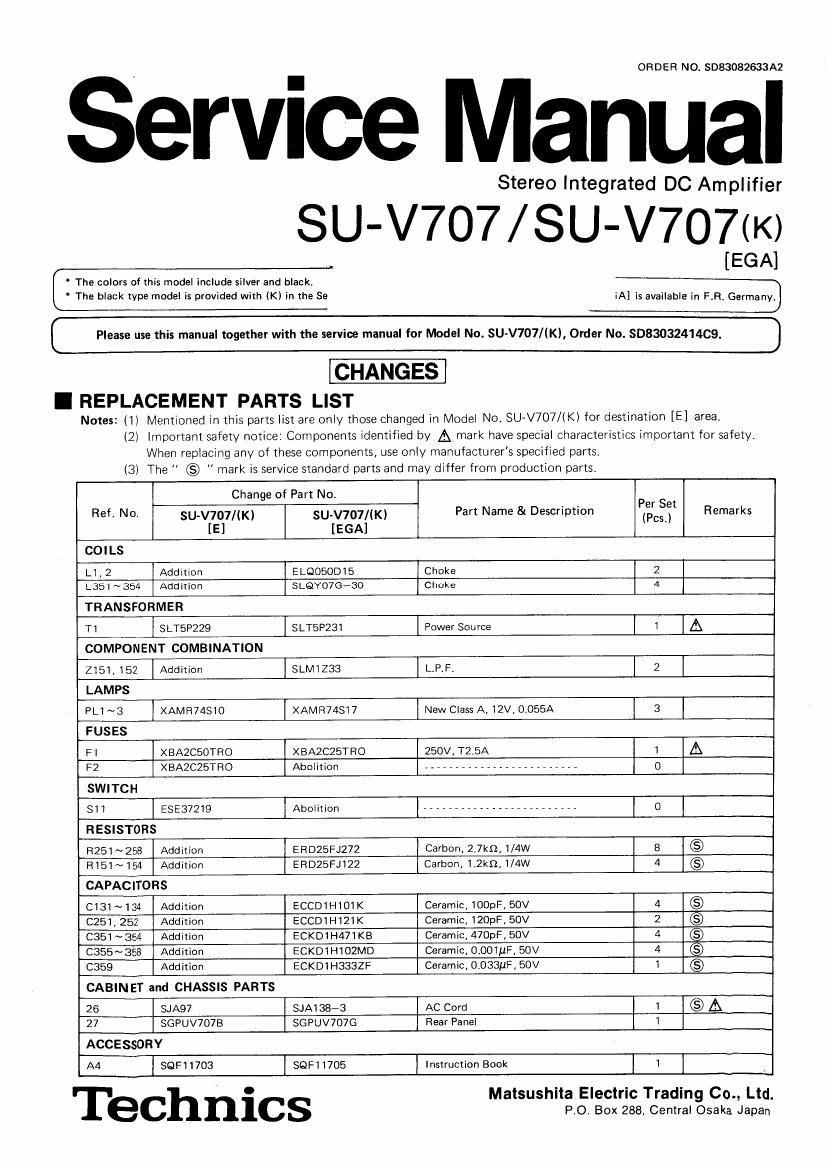

OR DER N0. 5083082633A2
Service Manual
Stereo Integrated DC Amplifier
SU-V707/SU-V707(K)
The colors of this model include silver and black.
" The black type model is provided with (K) in the Se
[EGAI
3A] is available in ER. Germanyl
[ Please use this manual together with the service manual for Model No. SU~V707llK), Order No. SD83032414C9. J
CHANGES
I REPLACEMENT PARTS LIST
Notes: (1) Mentioned in this parts list are only those changed in Model No. SU-V707/(K) for destination [E] area,
(2) Important safety notice: Components identified by A mark have special Characteristics important for safety
When replacing any of these components] use only manufacturer's specified parts.
(3) The © " mark is service standard parts and may differ from production parts.
Change of Part No.
Ref. No. SU-V707/(KI SU-V707/(K) Part Name & Description Per Set Remarks
(Pcs.)
[E] [EGA]
COILS
L1, 2 Addition ELQOSODIE Choke 2
L351~354 Addition SLQYO7G-30 Choke 4
TRANSFORMER
T1 I SLT5P229 ISLT5P231 I Power Source I 1 I A
COMPONENT COMBINATION
2151,152 I Addition ISLM1233 I L.P.F. I 2 I
LAMPS
PL1~3 I XAMR74S1O I XAMR74$17 I New Class A, 12V, 0.05qu I 3 I
FUSES
F'l XBAZCSOTRO XBA2C25TRO 250V, T2.5A 1 A
F2 XBA2C25TRO Abolition ......................... 0
SWITCH
$11 ESE37219 Abolition ------------------------- I 0 I
RESISTORS
R251 ~258 Addition ER025FJ272 Carbon,2,7kn,1/4W 8 ©
R151~154 Addition ERDZSFJ122 Carbon, 1.2kn,1/4w 4 ©
CAPACITORS
C131 ~134 Addition ECCDiHiOi K Ceramic, 1009F,50V 4 (8)
C251, 252 Addition ECCDl H121K Ceramic. 120pF, 50V 2 ©
C351~354 Addition ECKDi H471 KB Ceramic, 470oF, 50V 4 @
C355~358 Addition ECKDl H102MD Ceramic, 0.001uF. 50V 4 ©
C359 Addition ECKD1H3332F Ceramic, 0.033uF, 50v 1 ©
CABINET and CHASSIS PARTS
26 SJA97 SJA13873 Ac Cord 1 (g) A
27 SGPUV707B $GPUV707G Rear Panel 1
ACCESSORY
A4 I SQF1l703 I SQF11705 instruction Book I 1 I
Technics
Matsushila Electric Trading Co., Ltd.
PO. Box 288, Central Osaka Japan
