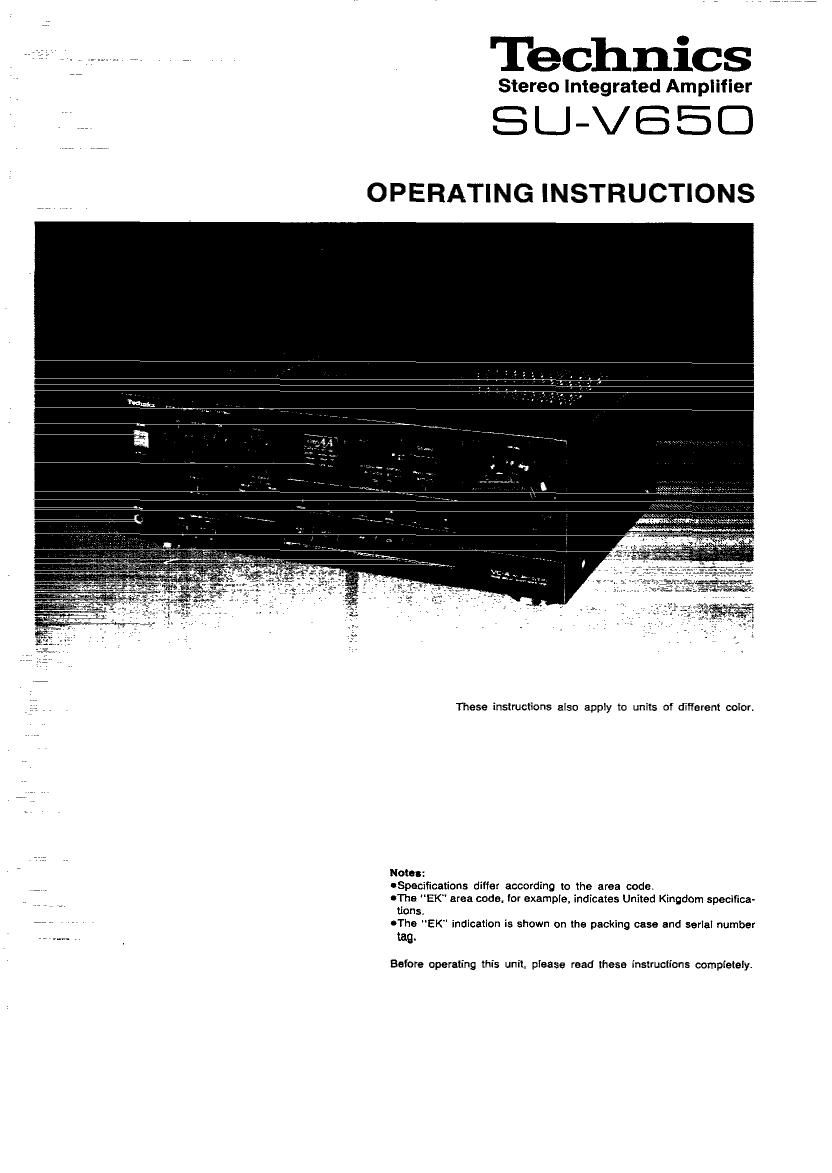

Technics

Stereo Integrated Amplifier

SU-VBb

OPERATING INSTRUCTIONS

These instructions also apply to units of different color.

Notes:
OSpecificatians differ according to the area code.

IThe "EK" area code, tor example. indicates United Kingdom specifica-
Lions.

OThe EK indication is shown on the packing case and serial number
tag.

Before operating this unit. please read these instructions compietely.

Page 2

7 7 T'Wélébrhé yfifi'Td'fffii'groivmg ramAy o

We viant to thank you for sele
7Technics Qroduct owners are arms wane ) _
Vfia Teel certain you lgrill

ior United

The EK indication is shown on the name plate.

important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

A: the colours of the wires in the mains lead of this unit may not

Placement Hints

I Placement on top of other equlpment

To accommodate equipment at different depths, use the addi-
tional feet (included) to support this unit

Disconnect the unit from AC mains betore attempting this
procedure.

Note:
Belore applying the teat, wipe the bottom surtace ot this unit with
cloth to remove any dirt.

KingdomEttwmmm

correspond with the coloured markings identifying the terminals
in your plug, proceed? as lollowsr The wire which is coloured
BLUE must, be connected to the terminal which is marked him
the letter N or coloured BLACK

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L o! coloured RED.

Bottom at this
unit '8 floor

Page 7

i Loudness switch (loudness)

Set to the on" position when listening to music at a low volume. Auditory perception of sound in the low
frequency range tails oft at low volume. but when the swrtch is in this position. this deficiency is
compensated for. so that the full impact of the musical performance can be enjoyed.

Phono selector (phono selector)

This selector should be set to the position which corresponds to the type of cartridge used on the
tumteble.

iim (- _ 1):

Set to this position when using a moving-magnet type cartridge or high-output moving-coil
cartridge (1 mV or more).

no (1 -);

Set to this position when using a moving-coil type cartridge (less than 1 mV).

Compact disc 'dTre'ct-throuihi
switch (CD direct)

Even better tone quality at the very high quality
signals from a compact disc can be obtained by
routing these signals directly to the volume level
adjustment. without passing them through an input
selector.

When this switch is set to the "on" position. the
sound source selected by the input selectors
cannot be heard,

Volume control (volume)

This control is used to adjust the volume level.
Be absolutely sure to set this control to a low .
position ("o-.1") before switching the power
0N. After the power is switched ON, please wai
several seconds before increasing the volume
level.

" V Input selectors/indicators(input selector)

Press to aelectthe sound source to be listened. Recording output Indlcamrs

.2, The corresponding indicator illuminates during operation to indicate the (recording selector)
selected sound source. These indicators indicate the program source which can
tape 1/DAT: be recorded.
Press this button to playback or moniterthe sound ola tape deck or Each indicator lights up corresponding with the selected
other equipment connected to the "TAPE l/DAT" terminals on the position of the recording output selector.
rear panel.
tape zlext:

Press this button to play back or monitor the sound lrom a tape deck
connected to the TAPE ZEXT' terminals on the rear panel.
aux;
Pres: this button to listen to sound tram a video dlsc player or
other equipment connected to the AUX" terminals on the rear panel.
CD:
Press this button to listen to a compact disc.
. f: tuner:
Press this button to listen to radio broadcasts.
phone:
Press this button to listen to phone discs.
