Technics SUA 700 Mk2 Service Manual

This is the 18 pages manual for Technics SUA 700 Mk2 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 18
left right

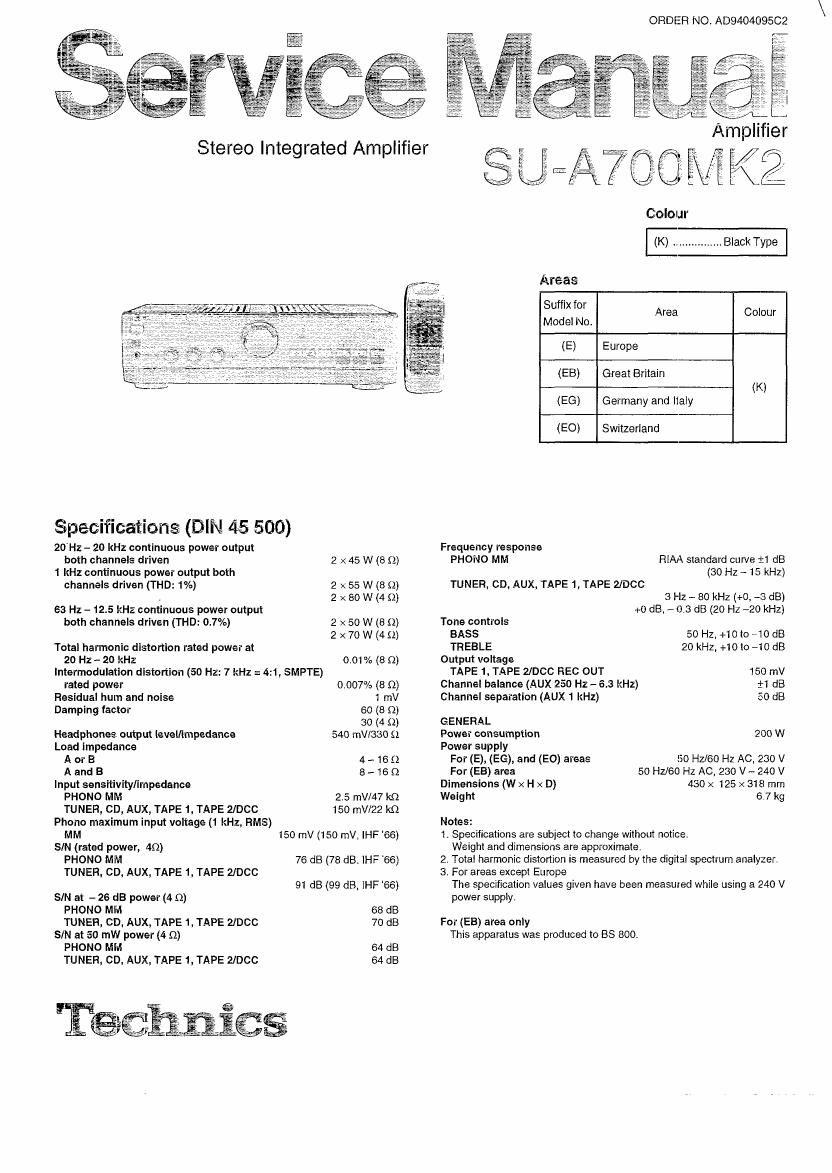

Technics SUA 700 Mk2 Service Manual

Extracted text from Technics SUA 700 Mk2 Service Manual (Ocr-read)


Page 2

SU-A700M K2

l Contents

0 Before Repair ......
0 Protection Circuitry
0 Accessories .....
O Caution for Mains Lead
0 Front Panel Controls

3
(a
(D

moomommmm

' Connections . 5,
0 Listening to Soun 7,
0 Recording ........ .
0 Operation Check and

Main Component Replacement Procedures ............................ 10~13

I Before Repair

0 Schematic Diagram .............
0 Printed Circuit Board Diagram
OWiring ConneCtion Diagram
0 Block Diagram
0 Function of 10 Terminals
0 Replacement Parts List.
0 Cabinet Parts Location .
I Packaging .................


(1 ) Turn off the power supply. Using a 10 Q, 10 W resistor, connect both ends of power supply capacitors (C701 , C702) in order to discharge the voltage.
(2) Before turning the power supply on, after completion of repair, slowly apply the primary voltage by using a power supply voltage controller to make
sure that the consumed current at 50/60 Hz In NO SlGNAL mode should be shown below with respect to supply voltage 230 V-240 V._

Power supply voltage AC 230 V

AC 240 V

Consumed current 50H: 50~250 mA

40-240 mA

l Protection circuitry

The protection circuitry may have operated if either of the following conditions is noticed:

* No sound is heard when the power is switched ON.
* Sound stops during a performance.

The functions of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are shorted", or it
speaker systems with an impedance less than the indicated rated impedance of this unit are used.

If this occurs, follow the procedure outlined below:
1. Switch OFF the power.
2. Determine the cause of the problem and correct it.
3. Switch ON me power once again.

Note:

When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again.

I Accessories

0 AC power supply cord ................................................................. 1

for (E), (E6) and (E0) areas: (RJAOOiQ-ZK)

O Remote control transmitter 0 Batteries

(RAK-SU129WH)

I-l

1 (UM-4, AAA", R03)
Note: These are available on sales route.

for (EB) area: (VJA0733)

........................... 2

I-(
