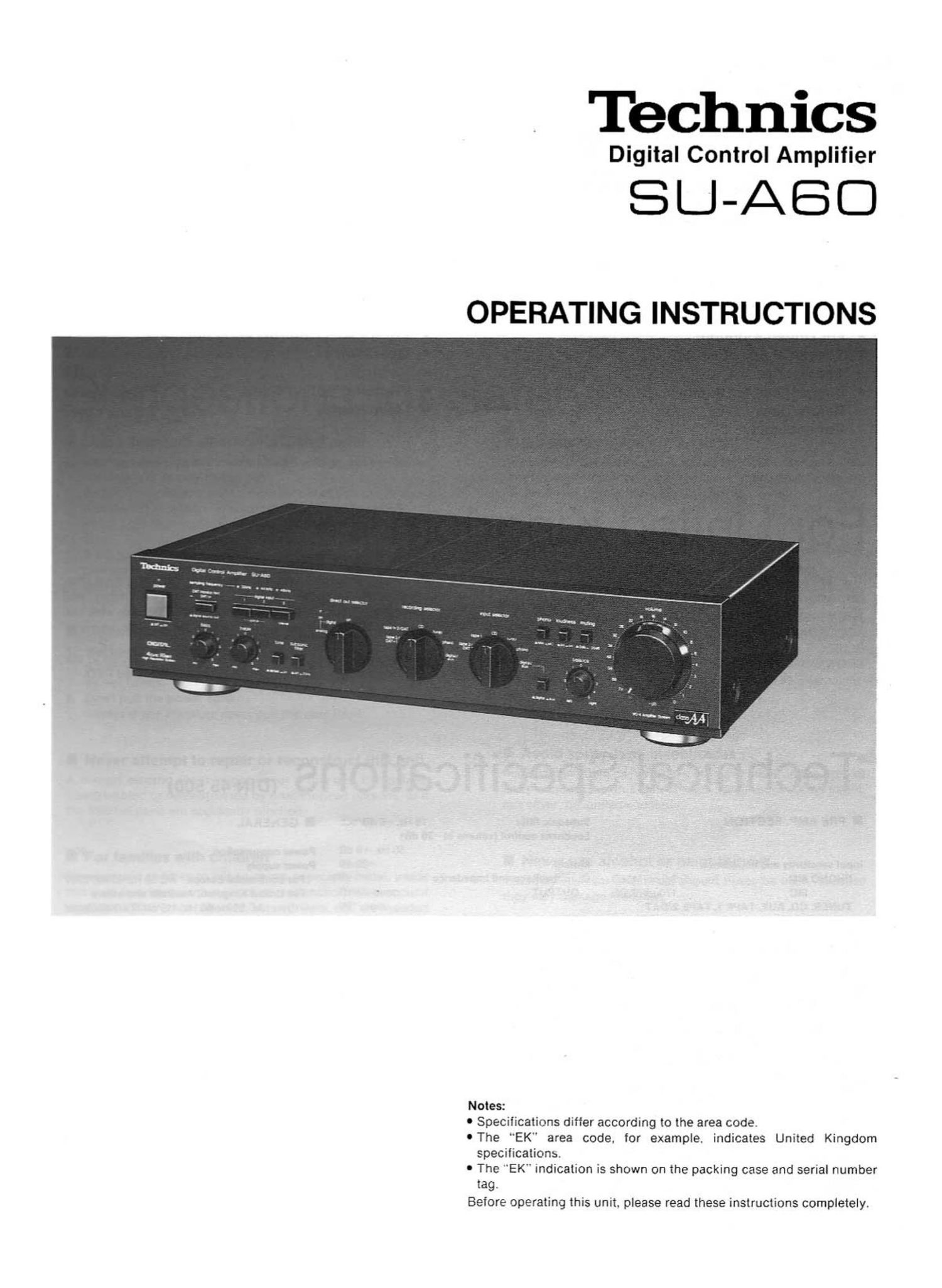

Technics

Digital Control Amplifier

SU-ABO

OPERATING INSTRUCTIONS

Notes:

0 Specifications differ according to the area code.

0 The "EK" area code. for example. indicates United Kingdom
specifications.

I The "EK" indication is shown on the packing case and serial number
tag.

Before operating this unit. please read these instructions completely.

Page 2

9661/6 egg/<60»- fjllll-

We want to thank you for selecting this product and
to welcome you to the growing family of satisfied
Technics product owners around the world.

from this new addition to your home.
Please read these operating instructions carefully,
and be sure to keep them handy for convenient

We feel certain you will get maximum enjoyment reference.

0 For United Kingdom ............................ 2 0 Front Panel Controls and Functions .......... 6
0 Technical Specifications ....................... 2 0 Operation ........................................ 8
0 Accessories ...................................... 3 0 Recording ........................................ 10
0 Suggestions for Safety ......................... 3 0 Troubleshooting Guide .............. Back cover
0 Before Use ....................................... 3 0 Maintenance .......................... Back cover
0 Connections ..................................... 4

For United Kingdom

The "EK" indication is shown on the name plate.

lmportant

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE.

BLUE:
BROWN:

NEUTRAL
LIVE

As the colours of the wires in the mains lead of this unit may not

correspond with

the col0ured markings identifying the

terminals in y0ur plug. proceed as follows. The wire which is

coloured BLUE must be connected to the terminal which is
marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

Technical Specifications (0......500,

I PRE AMP. SECTION

Input sensitivity and impedance
PHONO III 2.5 mV/47kQ
MC 170 uV/22OQ
TUNER, CD. AUX. TAPE 1. TAPE 2/DAT
150 mV/lBkQ
DIRECT 1 V/47kQ
PHONO maximum input voltage (1 kHz, RMS)
NM 170 mV
MC 13 mV
SIN
PHONO MN 79 dB (88 dB. IHF. A)

"C 70 dB (72 dB. 250 uV. IHF, A)
TUNER. CD. AUX. TAPE 1. TAPE 2/DAT
100 dB (IHF. A; 106 dB)

DIRECT 106 dB (IHF. A: 115 (18)
Frequency response
PHONO RIAA standard curve

02 dB (20 Hz~20 kHz)

TUNER. CD, AUX, TAPE 1, TAPE 2/DAT
0 8 H2450 kHz (-3 dB)
~0.-01 dB (20 Hz~20 kHz)

DIRECT 0.8 Hz--150 kHz (-3 dB)
Tone controls

BASS SOHz, ~10 dB~ 10dB

TREBLE 20 kHz, - 10 08* -- 10 d8

Subsonic filter
Loudness control (volume at -30 dB)

19 Hz. '- 6 dB/Oct.

50 Hz. +9 dB
Muting ~20 dB
Output voltage and impedance
OUTPUT rated 1V/4Q
max. 10V
TAPE, 1, 2/DAT REC OUT 150 mV
Channel balance. AUX 250 Hz~6.300 Hz +1 dB
Channel separation, AUX 1 kHz 55 68
Total harmonic distortion (20 Hz~~20 kHz)
PHONO MM Rifles-
PHONO MC 0.003%
TUNER, CD, AUX. TAPE 1. 2/DAT 0.002%
DIRECT 0,0009%
I DIGITAL SECTION
Harmonic distortion 0.0015%
Total harmonic distortion 0.0025%

SIN 111 dB
Dynamic range
Frequency response

99GB

2 Hz~20 kHz. I0.3 dB. -0.3 03

I GENERAL
Power consumption 20W
Power supply
For continental Europe AC 50 H2160 Hz. 220V
For United Kingdom, Australia and others
AC 50 Hz/SO Hz, 110V/127V/220V/240V
Dimensions (WXHXD) 430 X 103 x 290 mm
(16-15/16" X 4-1/16" X11-6/16")

Weight 4.9 kg (10.73 lb.)

Notes:

1. Specifications are subject to change without
notice.
Weight and dimensions are approximate.

2. Total harmonic distortion is measmed by the

digital spectrum analyzer (HP 3045 System).
