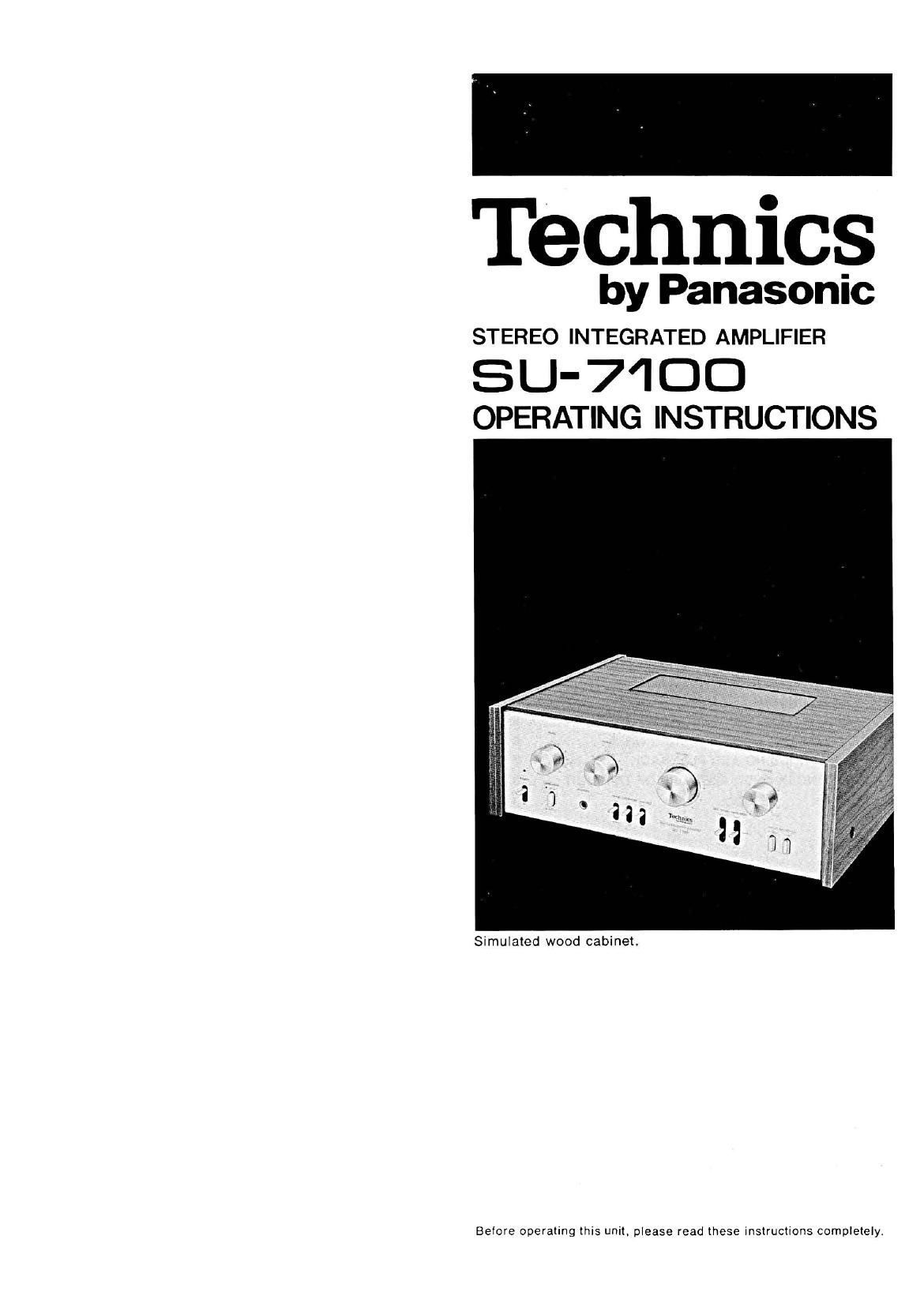

Technics

by Panasomc
STEREO INTEGRATED AMPLIFIER

S U- 7l O D
OPERATING INSTRUCTIONS

Simulated wood cabinet.

Before operating this unit. please read these instructions completely.

Page 2

-‚¬42 {£760 fl}?

Your new Technics by Panasonic stereo
integrated amplifier was manufactured and
assembled under exacting quality control
standards. The incorporation Of the latest
advances in design and the use of the most
modern components assure outstanding per-

formance with superb sensitivity and tonal
quality.

A few minutes Of your time, wisely spent read-
ing carefully through this instruction booklet,
will assure you of getting the maximum benefit
of this fine components potential.

MAINTENANCE ................................................ 1 WARNING CONCERNING REMOVAL OF COVERS

How To CARE FOR THE CABINET ..................... 1 NOTE: This unit should be serviced by qualified techni-

TECHNICAL SPECIFICATIONS ........................... 2 Sans 0W; f t. _ _d df t

ACCESSORIES ................................................ 2 o servrce In orma Ion '5 provr e or cus omers.

EQUIPMENT CONNECTABLE TO THIS UNIT ......... 2 pnopuc'r SERVICE

FRONT PANEL CONTROLS AND THEIR Should your "Technics by Panasonic" product ever require

FUNCTIONS ................................................... 3 se'VCingr refer 1° 9 Directory 0* Authorized Servtce Ce-

ters or your franchised Technics by Panasonic" dealer for

CONNECTIONS detailed instructions.

0 CONNECTION OF SPEAKER SYSTEMS ......... 5

0 CONNECTION OF A RECORD PLAYER ......... 5 LOCATION OF SERIAL NUMBER

. CONNECTION OF A TUNER ________________________ 6 You will find the serial number located at the back of the
"t.

. CONNECTION OF TAPE DECKS .................. 5 m

0 GROUNDING ............................................. 6

SPEAKER CIRCUIT PROTECTION FUSES ............ 6 How To CARE FOR

AC OUTLETS ................................................... 5 THE CABINET

TAPE RECORDING AND PLAYBACK .................. 7

FOR LONGER AND SAFER USE OF THIS UNIT ...... 8

MEMO ......................................................... 10 - If this unit becomes dirty, it can be cleaned by wiping it

with a soft, dry cloth. if it is extremely dirty. dip the soft
Cloth into a soap-and-water solution, wring the cloth out
well and then wipe the unit clean. After cleaning, wipe
the unit dry once more with a dry cloth.

- Be careful not to allow alcohol, thinner, benzine, insec-
ticide and other similar chemicals to get on the surface Of
this unit because they may damage its finish by causing
the finish to peel Off or lose its luster.

- Never use a wet cloth or a chemically-treated cloth for
cleaning.

( N
The model number of this product may be found on the back of the unit; and the serial number, on the label
affixed to the back of the unit.

You should note the model and serial numbers of this unit in the Space provided and retain this insertion as
a permanent record of your purchase to aid in identification in the event of theft.
\ MODEL NUMBER SERIAL NUMBER j

WARNING : TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE To RAIN on MOISTURE.
