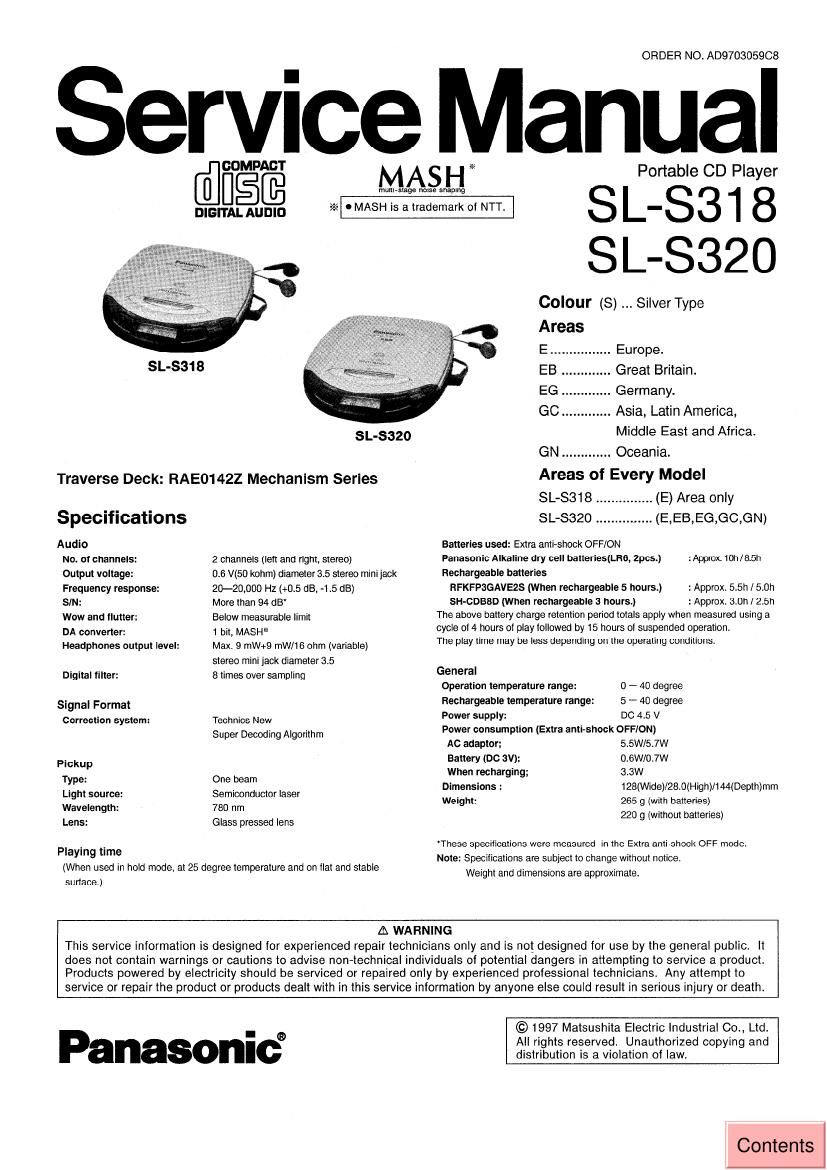

Technics SLS 320 Service Manual

Page 1

ORDER NO. AD970305908

Service Manual

DIGITAL AUDIO

COMPACT

mMum- -srageA noise Ssthmg

>2<~ _ASH _s a trademark ol NTT.

SL-S318

SL-S320

Traverse Deck: RAE014ZZ Mechanism Series

Specifications

Audio
No. or channels:
Output voltage:
Frequency response:
SIN:
Wow and flutter:
DA converter:

Hudphones output level:

Digital tiller:

Signal Format
Correction system:

Pickup
Type:
Light source:
Wavelength:
Lens:

Playing time

2 channels (lelt and right, stereo)

0.6 V(50 kohm) diameter 3.5 stereo mini jack
20-20300 HZ (+0.5 dB, -1.5 (18)

More than 94 dB'

Below measurable limit

1 bit, MASH

Max. 9 mW+9 mW/t 6 ohm (variable)
stereo mini jack diameter 35

8 times over sampling

Technics New
Super Decoding Algorithm

One beam
Semiconductor laser
780 nm

Glass pressed lens

(When used in hold mode, at 25 degree temperature and on ilat and stable

sunace.)

Portable CD Player

SL-S31 8
SL-S320

Colour (8) Silver Type

Areas

E ................ Europe.

EB ............. Great Britain.

EG ............. Germany.

GC ............. Asia, Latin America,
Middle East and Africa.

GN ............. Oceania.

Areas of Every Model

SL-8318 ............... (E) Area only

SL-sazo ............... (E,EB,EG,GC,GN)

Batteries used: Extra anti-shock OFF/ON
Panasonic Alkaline dry cell batteries(LFt6, 2pcs.)
Rechargeable batteries
RFKFPSGAVEZS (when rechargeable 5 hours.) : Approx. 5.5h / 5:0h
SH-CDBBD (When rechargeable 3 hours.) : Approx. son / 2.5n
The above battery charge retention period totals apply when measured using a
cycle oi 4 hours of play followed by 15 hours at suspended operation.
The play time may be less depending on the operating conditions.

:Approx. 1m/85h

General
Operatlon temperature range: 0 - 40 degree
Rechargeable temperature range: 5 ~ 40 degree
Power supply: DC 45 V

Power consumption (Extra anti-shock OFF/ON)

AC adaptor; 5.5W/5.7W
Battery (DC 3V): 0.6W/0.7W
When recharging; 3.5W
Dimensions : 128(\Mde)/28.0(High)/144(Depth)mrn

Weight: 265 g (with batteries)
220 9 [without batteries)

"These specifications were measured in the Extra antishock OFF mode.
Note: Specifications are subject to change wtthout notice.
Weight and dimensions are approximate.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. it
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service inlormation by anyone else could result in serious injury or death.

Panasonic

© 1997 Matsushita Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Contents

Page 2

SL-S318IS320

I Contents

Precaution ct Laser Diode .
Accessories ..........
Location of Controls
Power Supply Preparat ns
Sequential Play ...............
Accidental Operation Prevention Function
Extra Digital Sound Shock Protector
Other Play Methods ............
Using the Remote Controller
Using the Unit with Optional Accessories .
Cautions ....................
Troubleshooting Guide
Handling Precautions for Traverse Deck
Operation Checks and Main

U
: m
(a
a

NNNOIOUIUI-héwaN

Component Replacement Procedures . . 8 ~ 11
Checking the Operation Problems on

the Traverse Deck (Optical Pickup) ....................................... 12
Automatic Ad|ustment Results

Display Function (Self-check Function) ......................... 13, 14

I Precaution of Laser Diode

CAUTION:
Wave length: 780 nm

Page
Mesurements and Adjustments ............................................. 14, 15
Outline 0! 10-Second Sound Keeper Tech que
Used for Prevention of Sound trom Skipping
Block Diagram ....................................................
Prlnted Circuit Board and
Wiring Connection Diagram ........................
Type Illustration ct lCs, Transistors and Diodes
Schematic Diagram ........
Terminal Function ot Ics
Replacement Parts List (Electrical)
Reslstors and Capacitors
Cabinet Parts Location ..
Replacement Parts List (Cabinet, Packing, Accessories
and Grease or Jig/Tool) ............................................................ 35
Supply of Rechargeable Battery Ass y
as Replacement Parts (SL-sszo only)... ..
Caution In Use 01 Rechargeable Battery Ass V (SL- -ss2o only ..
Packaging ............................................................................ 36, 37

This product utilizes a laser diode with the unit turned on", invisible laser radiation is emitted from the pickup lens.

Maximum output radiation power from pickup: 100 uWNDE

Laser radiation lrom the pickup lens is salety level, but be sure the followings:

1. Do not disassemble the optical pickup unit, since radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look" at pickup lens for a long time.

ACHTUNG: Dieses Produkt enthalt eine Laserdiode. lm eingeschalteten Zustand wird unsichtbare Leserstrahlung von der

Lasereinheit abgestrahlt.
Wellenlainge: 780 nm

Maximale Strahlungsleistung der Lasereinheit: 100 WNDE

Die Strahlung an der Lasereinheit ist ungefahriich, wenn tolgende Punkte beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der ireigelegten Laserdiode getahrlich ist.
2. Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.

3. Nicht mit optischen Instrumenten in die Fokussierlines blicken.

4. Nicht iiber langere Zeit in die Fokussierlines blicken.

ADVARSEL: l dette a apparat anvendes laser.

[ Bottom side]

RQ LSOO77-2

CLASS I
lASER PRODUCT

Anvgasu 03mm immune

. mo- Avattum p
mum-u: mimtaw
i Ikt llllllnl nay-lam
laseulteilylk.
Au lllso alum

vmnmm om,
hxerslrilnmg v... loan
a.- .. «pm on
S'irlfll a Maya!
Belukla .5 slulen.

vui mm. MAR Serums»
mom HI not As swung
«out mums m mums

I Accessories

0 SL-8318 (E)
Stereo earphones with remote controller

(RFEV133P>KS) .......................................................... 1pc.

oSL-S320 (E, EB, EC, 60, GN)
For (E, E6) areas: AC adaptor (RFEA401 E-3S)
For (EB) area: AC adapter (FtFEA404B-1W) ......

1pc.
.. 1pc.

ADVERSE llsvnllg
vunsma mm BAMEflngk-u "mum, .5. mm

Sons: .9 hummus:
um um:

«mum m. m rosuur m mu ckwonclmt" mile-

5" us!!! 0L59077-2

For (GC) area: AC adaptor (RFEA4032-S) ..
For (GN) area: AC adaptor (RFEA403A-S) ..
Stereo earphones with remote controller

1pc.

(RFEV133P-KS) .............................................. . 1pc.
Rechargeable battery assy (RFKFPSGAVE2S) . . 1pc.
Battery carrying case (RFKNLSS70-K) .............. . 1pc.

_2'
