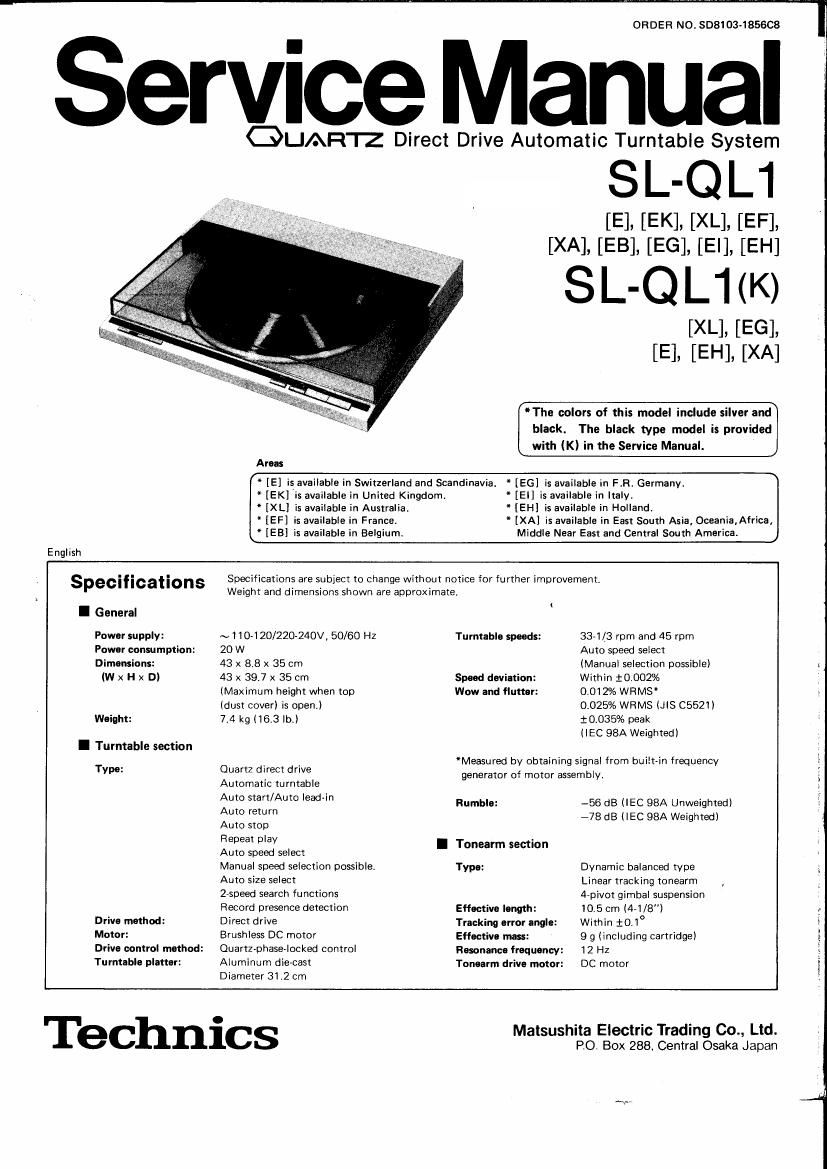

Technics SLQL 1 Service Manual

Page 1

ORDER NO. 808103-1856C8

ervice Manual

QUARIZ Direct Drive Automatic Turntable System

ESL- QL1

,[[EK], [XL], [EF],
[XA], [EFE], E,G]],[Ei ][EH]

SI.- QL1

,[,EG]
[E ], [[XEH], [XA]

The colors of this model include silver and
black. The black type model is provided
with (K) in the Service Manual.

Areas

* [E] is available in Switxerland and Scandinavia, " [56] is available in FR. Germany.
" [EK] is available in United Kingdom. " [Ell is available in Italy.

[XL] is available in Australia, ' [EH] is available in Holland.

* [EF] is available in France. ' [XA] is available in East South Asia, Oceania,Africa,

" [E8] is available in Belgium. Middle Near East and Central South America. J
English
. . . . . . . . . .
speclflcatlons Specifications are subject to change Without notice for further improvement.
Weight and dimensions shown are approximate,
(
I General
Power supply: ~110120/220-240V, 50/60 HZ Turntable speeds: 3371/3 rpm and 45 rpm
Power consumption: 20 W Auto speed select
Dimensions: 43 x 8.8 x 35 cm (Manual selection possible)
(W x H x D) 43 x 39.7 x 35 cm Speed deviation: Within 10.00296

(Maximum height when too Wow and flutter: 0.012% WFiMS

[dust cover) is open.) 0.025% WRMS (JIS C5521)
Weight: 7.4 kg (16.3 lb.) 10.03596 peak

I Turntable section

Type:

Drive method:

Motor:

Drive control method:
Turntable platter:

Quartz direct drive
Automatic turntable

Auto start/Auto lead-in
Auto return

Auto stop

Repeat play

Auto speed select

Manual speed selection possible.
Auto size select

2-speed search functions
Record presence detection
Direct drive

Brushless DC motor
Quartz-phaselocked control
Aluminum dieacast
Diameter 31.2 cm

(IEC 98A Weightedl

Measured by obtaining signal from built-in frequency
generator of motor assembly.

Rumble:

Tonearm section

Typo:

Effective length:
Tracking error angle:
Eflnctivu mass:

Resonance frequency:
Tonearm drive motor:

-56 dB (IEC 98A Unweigtitedl
778 dB (IEC 98A Weighted)

Dynamic balanced type
Linear tracking tonearm
4-pivot gimbal suspension
10.5 cm (4-1/8")

Within i0.1°

9 g (including cartridge)
12 Hz

DC motor

Technics

Matsushita Electric Trading 00., Ltd.
PO. Box 288. Central Osaka Japan
