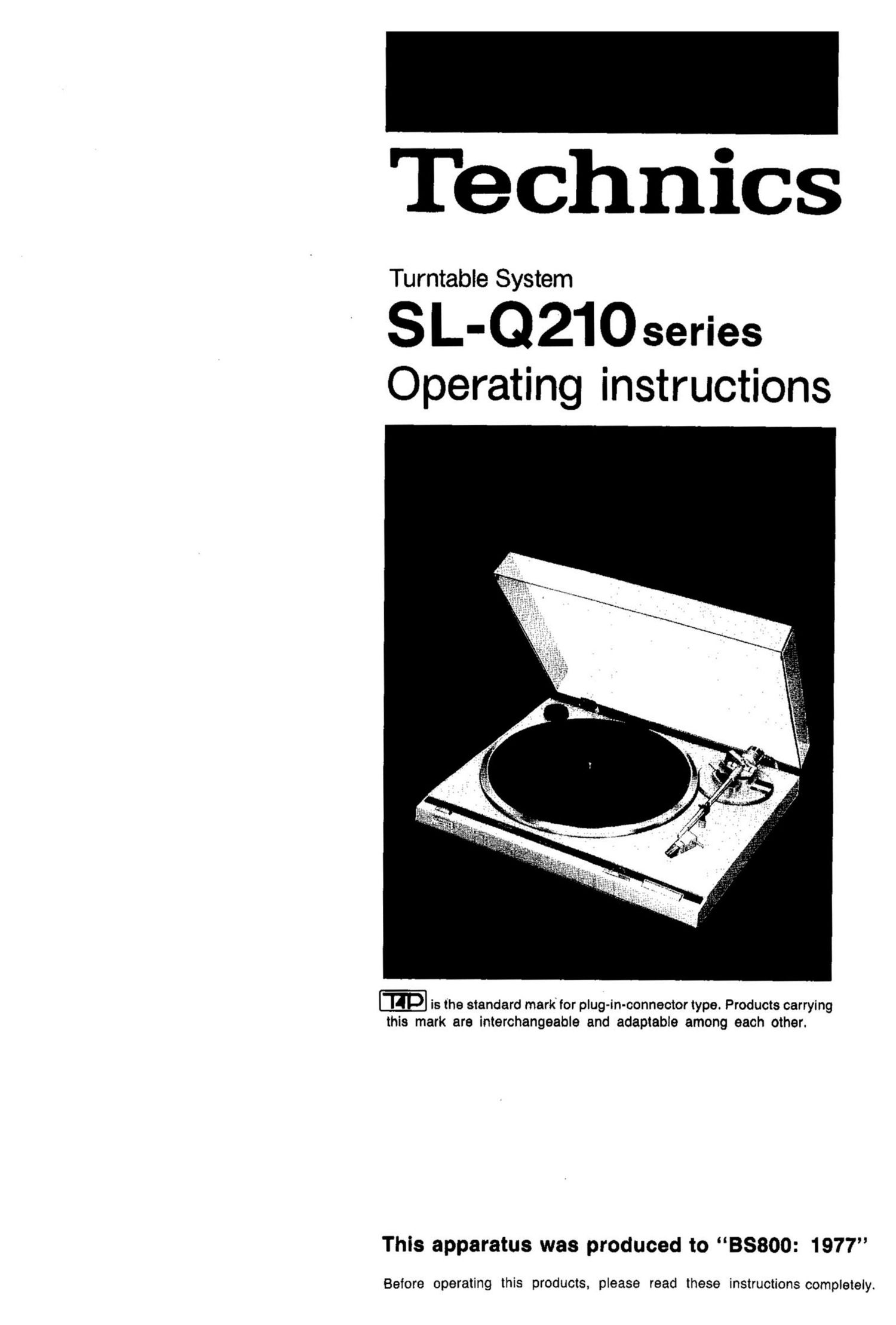

Technics

Turntable System

SL-QZ10 series

Operating instructions

E is the standard mark for plug-ln-connector type. Products carrying
this mark are interchangeable and adaptable among each other.

This apparatus was produced to 88800: 1977

Before operating this products. please read these instructions completely.

Page 2

Thank you for choosing the SL-QZ10 series.

For Optimum performance and safety, please read these instructions carefully.

J-

Parts idenItificatioIn

-I--

J

45-rpm adaptor

Center spindle

I

Turntable mat

Turntable platter

Turntable base

Speed selector

'

Hinge

Arm rest

Tonearm

Cartridge

Stop switch

Cueing control

Caution for safe use of this apparatus for

UK standard model SL-0210:

Cauflon

OThis apparatus is double insulated, safety earth not
requhed.

Important

OThe wires In this malns lead are coloured In accord-
ance with the following code:
Blue: Neutral
Brown: Live

As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows.
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or coloured
BLACK. The wire which is coloured BROWN must be
connected to the terminal which is marked with the letter l.
or coloured RED.

This equipment should be disconnected from the
mains when not In use.
