Technics SLQ 200 Owners Manual

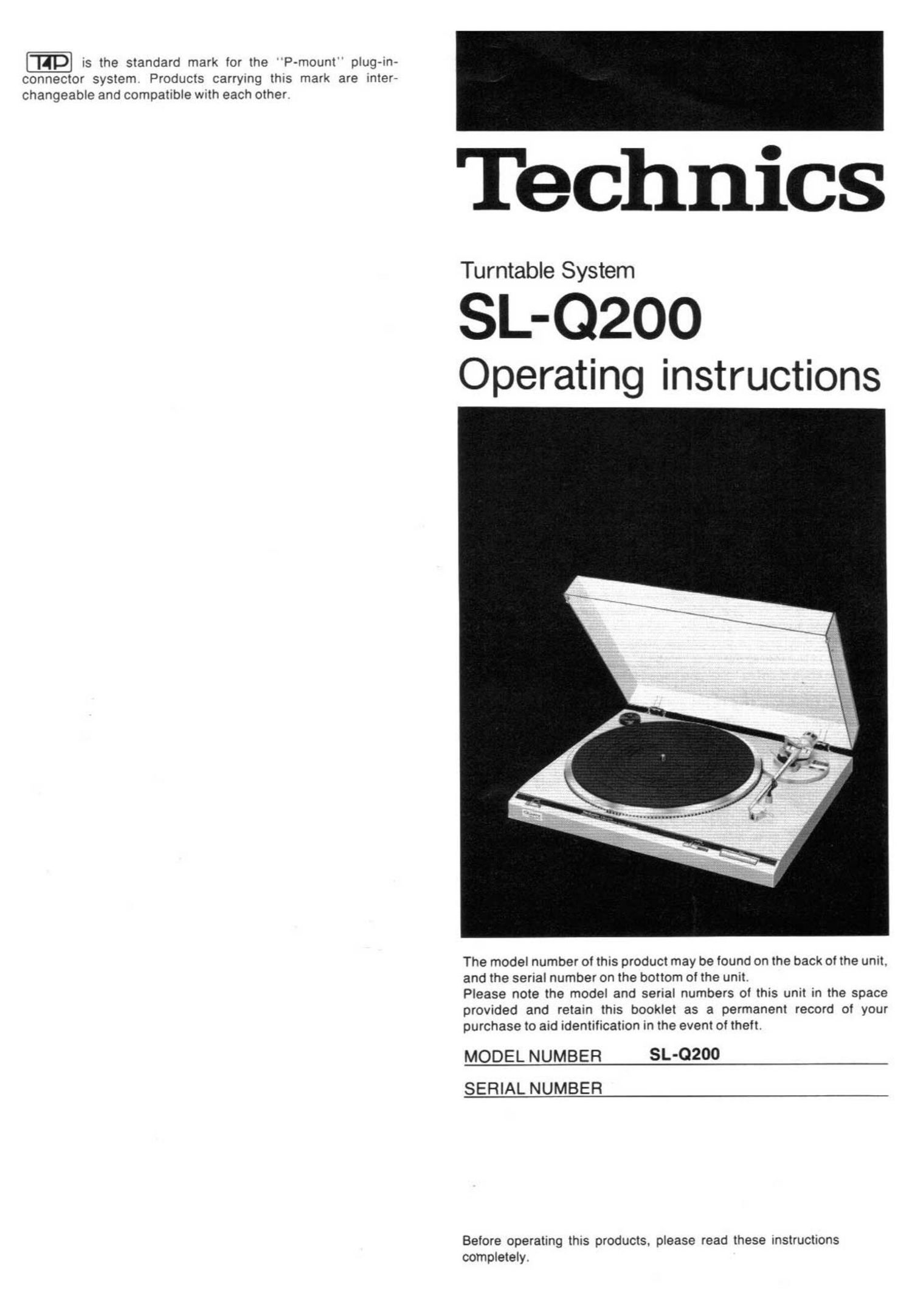

Page 1

E is the standard mark for the P-mount" plug-in-
connector system Products carrying this mark are inter-
changeable and compatible with each other

Technics

Turntable System

SL-QZOO

Operating instructions

The model number of this product may be found on the back ot the unit.
and the serial number on the bottom of the unit.

Please note the model and serial numbers of this unit in the space
pr0vided and retain this booklet as a permanent record of your
purchase to aid identification in the event of theft,

MODEL NUMBER SL-QZOO
SERIAL NUMBER

Before operating this products, please read these instructions
completely.

Page 2

Thank you for choosing the SL-QZOO.

For optimum performance and safety, please read these instructions carefully.

Parts identification

45-rpm adaptor

Center spindle

Turntable mat

Turntable platter

Turntable base

Hinge

Stylus-pressure
adjustment knob

Speed selector

Strobe-illuminator/
pilot lamp

Technics. The science of sound. Our name represents over
100 high quality audio products, in every price range.

From Our revolutionary direct drive turntables to Our highly
acclaimed linear phase speakers. Technics quality and value
have become almost legendary among audio enthusiasts.

Our truly complete selection of turntables (including belt-drive.
direct-drive. and quartz-locked models with varying degrees of
automation) now includes an exciting line of linear tracking
turntables with zero tracking error. Another innovation. direct
drive cassette decks, is available in both slim and micro

formats. In fact. with Technics micro series, you can assemble
an entire system of the highest quality with truly compact

dimensions.

Features like our new computer-drive new class-A amplification
and quartz-synthesizer tuning have created tremendous excite-
ment among reviewers and customers alike.

Amplifiers. tuners. headphones. microphones. cartridges.
openreel decks. sound processors-we are proud of all our
high quality equipment and we are constantly seeking to
improve our products. in terms of performance and handling
ease. In addition. our confidence in the reliability of our
merchandise (demonstrated by our warranties) and the
reasons for our enormous and rapid growth become obvious.

Arm rest

Tonearm

Stop switch

Cueing control

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF
REMOVE SCREWS.

NO USER-SERVICEABLE
PARTS INSIDE.

REFER SERVICING TO QU
SERVICE PERSONNEL.

ELECTRIC SHOCK. DO NOT

ALIFIED

within an equilateral triangle.

dangerous voltage" within

presence of important opera

The lightning flash with arrowhead symbol.

is intended to

alert the user to the presence of uninsulated

the product's

enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the

ting and main-

tenance (servicing) instructions in the literature

accompanying the appliance.

WARNING: To reduce the risk of fire or electric shock,
do not expose this appliance to rain or moisture.

_9_
