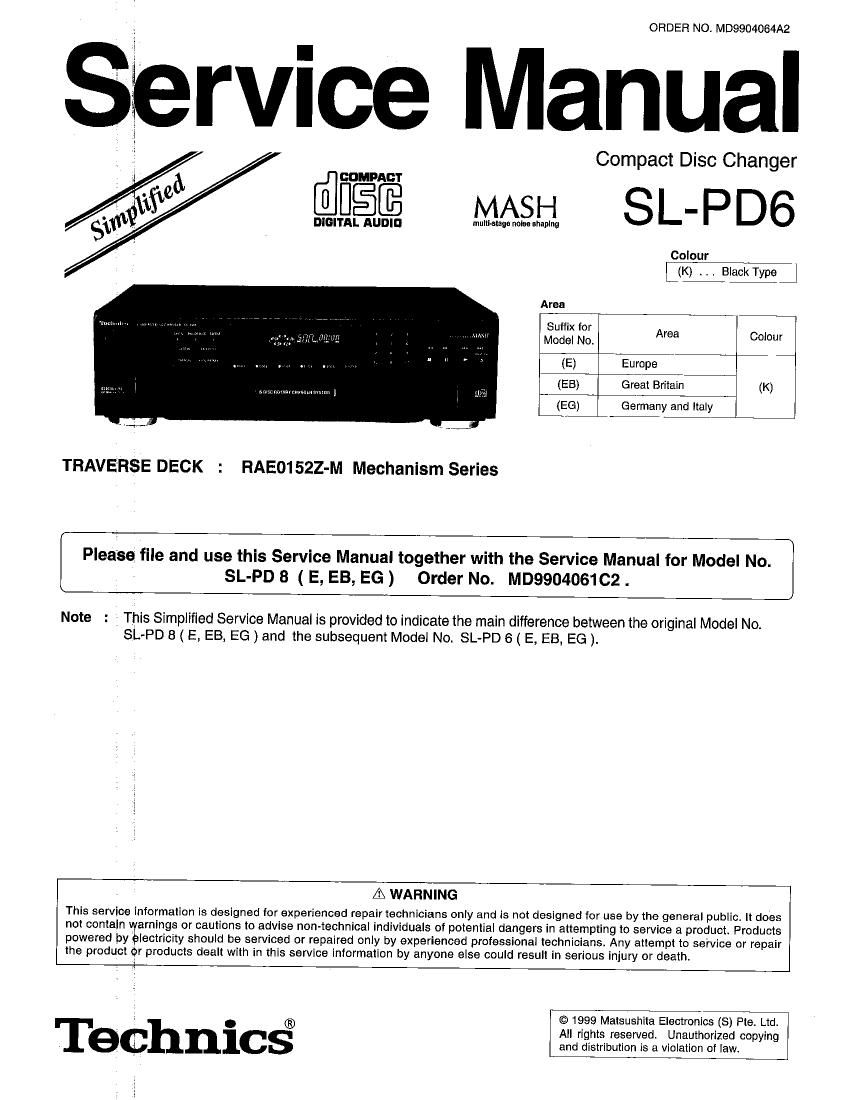

ORDER NO. MD9904064A2

S: rvice Manual

Compact Disc Changer

@ng MASH SL-PD6

Colour
(K) .,. Black TypeJ

Area
Suffix for
Model No. Area Colour
(E) Europe
(EB) Great Britain (K)
(EG) Germany and Italy

TRAVERSE DECK . RAEO1522-M Mechanism Series

Please file and use this Service Manual together with the Service Manual for Model No.
SL-PD 8 (E, EB, EG) Order No. MD9904061C2.

Note : This Simplified Service Manual is provided to indicate the main difference between the original Model No.
SL-PD 8 ( E, EB, EG ) and the subsequent Model No. SL-PD 6 ( E, EB, EG ).

A WARNING

This Servlce information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contaln warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by lectricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1999 Matsushita Electronics (S) Pte. Ltd.

. . ® All rights reserved. Unauthorized copying
66 11108 and distribution is a violation of law.
